Coronary Artery Stenosis Phantoms

For the analysis of various case studies on coronary heart disease

3 different sets

3 different sets with various plaque and lumen combinations available

Coronary Artery Stenosis Phantom Set AX
Coronary Artery Stenosis Phantom Set BX
Coronary Artery Stenosis Phantom Set DX

Specially designed holder with Thorax Phantom

With the specially designed holder (QRM-60109), up to three coronary artery phantoms can be placed within the QRM water tank phantom (QRM-10113).

The water tank can be combined with the optional available thorax phantom (QRM-20100) to mimic a (semi-)anthropomorphic measurement environment.

Customized stenosis phantoms

Other plaque and lumen geometries with various concentrations of Iodine, CaHA and other cardiac relevant materials are available upon request. Please contact us.

Coronary Artery Phantoms Interactive

Set AX or set BX or Set DX or customized versions

Set AX or set BX or Set DX or customized versions

Three different sets simulating diverse plaque materials and different stenosis are available.

The sets cover diverse scenarios combining three plaque materials (Fibro-fat, Lipid and Ca-enriched) with eccentric and concentric stenosis.

To mimic non-contrast and contrast scans, each set includes phantoms with blood-equivalent and iodine-enhanced lumen.

Three different sets with various plaque and lumen combinations

Three different sets with various plaque and lumen combinations

QRM-60106 (Set of 6 coronary artery phantoms): 17%, 33%, and 50% eccentric stenosis in each phantom, 6 different material combinations of different plaques/vessel lumen. All phantoms with vessel wall.

QRM-60107 (Set of 4 coronary artery phantoms): 50% eccentric stenosis; 3 different plaque materials in each phantom, 2 different lumen materials with & without a vessel wall.

QRM-60108 (Set of 6 coronary artery phantoms): 67% and 33% concentric stenosis in each phantom, 6 different material combinations of different plaques/vessel lumen. All phantoms with vessel wall.

Analyse different case studies for coronary artery disease

Coronary Artery Stenosis Phantoms

With the specially designed holder (QRM-60109), up to three coronary artery phantoms can be placed within the QRM water tank phantom (QRM-10113). The water tank can be combined with the optional available thorax phantom (QRM-20100) to mimic a (semi-) anthropomorphic measurement environment.

For other plaque and lumen geometries with various concentrations of Iodine, CaHA and other cardiac relevant materials, please contact us.

Contact us!

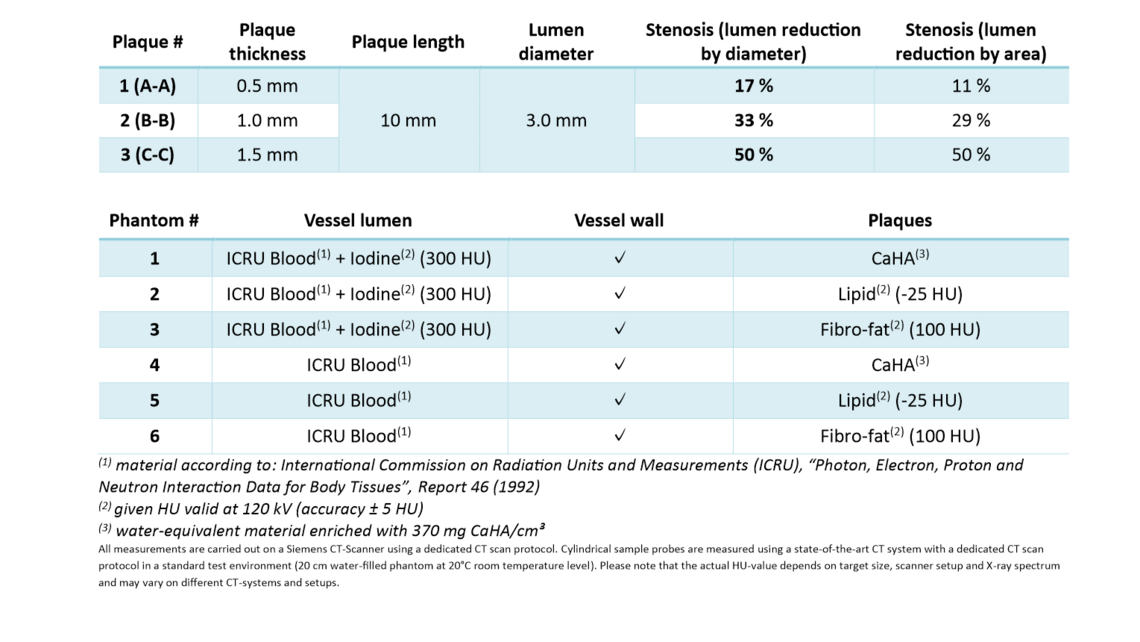

Technical Specifications

Plaque #	Plaque Thickness	Plaque length	Lumen diameter	Stenosis (lumen reduction by diameter)	Stenosis (lumen reduction by area)
1	0.5 mm	10 mm	3.0 mm	17 %	11 %
2	1.0 mm	10 mm	3.0 mm	33 %	29 %
3	1.5 mm	10 mm	3.0 mm	50 %	50 %

Phantom#	Vessel lumen	Vessel wall**	Plaques
1	ICRU Blood () + Iodine(*) (300 HU)	✓	CaHA(***)
2	ICRU Blood () + Iodine(*) (300 HU)	✓	Lipid(**) (-25 HU)
3	ICRU Blood () + Iodine(*) (300 HU)	✓	Fibro-fat(**) (100 HU)
4	ICRU Blood*	✓	CaHA(***)
5	ICRU Blood*	✓	Lipid(**) (-25 HU)
6	ICRU Blood*	✓	Fibro-fat(**) (100 HU)

* material according to: International Commission on Radiation Units and Measurements (ICRU), “Photon, Electron, Proton and Neutron Interaction Data for Body Tissues”, Report 46 (1992)

** given HU valid at 120 kV (accuracy ± 5 HU)

***water-equivalent material enriched with 370 mg CaHA/cm³

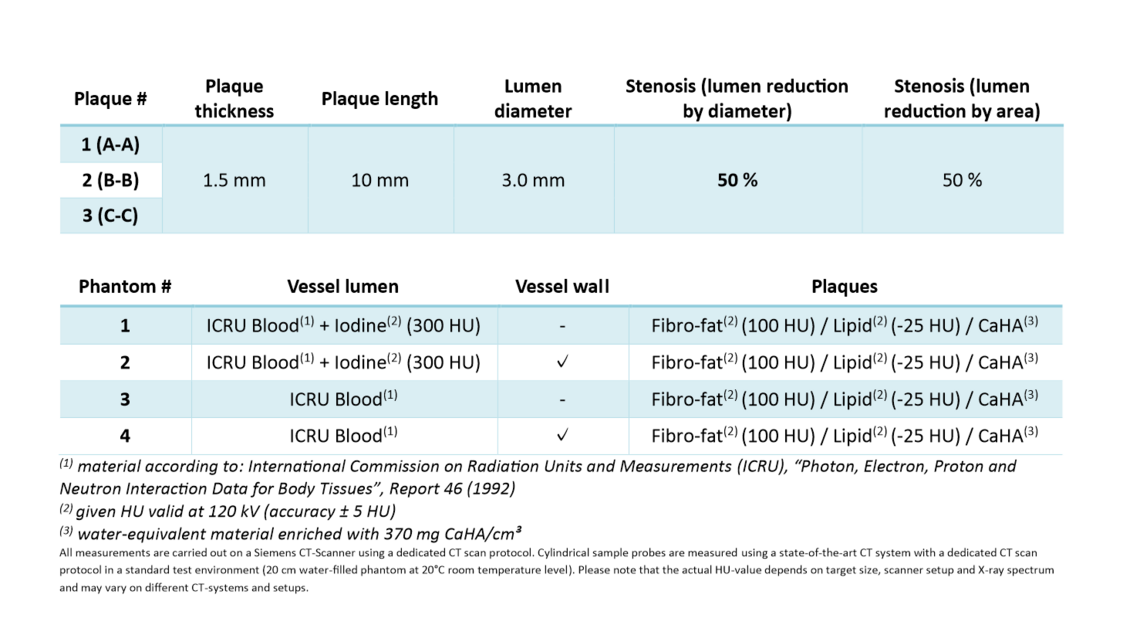

Plaque #	Plaque Thickness	Plaque length	Lumen diameter	Stenosis (lumen reduction by diameter)	Stenosis (lumen reduction by area)
1	1.5 mm	10 mm	3.0 mm	50 %	50 %
2	1.5 mm	10 mm	3.0 mm	50 %	50 %
3	1.5 mm	10 mm	3.0 mm	50 %	50 %

Phantom #	Vessel lumen	Vessel wall	Plaques
1	ICRU Blood ()+ Iodine(*) (300 HU)	-	Fibro-fat() (100 HU) / Lipid() (-25 HU) / CaHA(***)
2	ICRU Blood ()+ Iodine(*) (300 HU)	✓	Fibro-fat() (100 HU) / Lipid() (-25 HU) / CaHA(***)
3	ICRU Blood(*)	-	Fibro-fat() (100 HU) / Lipid() (-25 HU) / CaHA(***)
4	ICRU Blood(*)	✓	Fibro-fat() (100 HU) / Lipid() (-25 HU) / CaHA(***)

* material according to: International Commission on Radiation Units and Measurements (ICRU), “Photon, Electron, Proton and Neutron Interaction Data for Body Tissues”, Report 46 (1992)

**given HU valid at 120 kV (accuracy ± 5 HU)

***water-equivalent material enriched with 370 mg CaHA/cm³

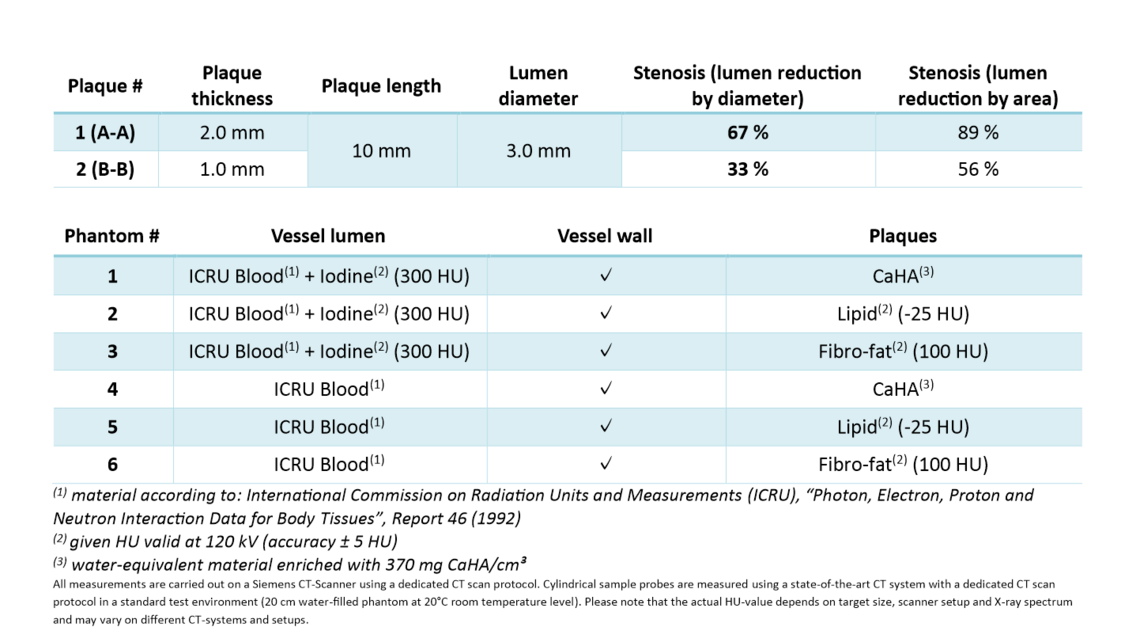

Plaque #	Plaque thickness	Plaque length	Lumen diameter	Stenosis (lumen reduction by diameter)	Stenosis (lumen reduction by area)
1	2.0 mm	10 mm	3.0 mm	67 %	89 %
2	1.0 mm	10 mm	3.0 mm	33 %	56 %

Phantom #	Vessel lumen	Vessel Wall	Plaques
1	ICRU Blood() + Iodine(*) (300 HU)	✓	CaHA(***)
2	ICRU Blood() + Iodine(*) (300 HU)	✓	Lipid(**) (-25 HU)
3	ICRU Blood() + Iodine(*) (300 HU)	✓	Fibro-fat(**) (100 HU)
4	ICRU Blood(*)	✓	CaHA(***)
5	ICRU Blood(*)	✓	Lipid(**) (-25 HU)
6	ICRU Blood(*)	✓	Fibro-fat(**) (100 HU)

* material according to: International Commission on Radiation Units and Measurements (ICRU), “Photon, Electron, Proton and Neutron Interaction Data for Body Tissues”, Report 46 (1992)

**given HU valid at 120 kV (accuracy ± 5 HU)

***water-equivalent material enriched with 370 mg CaHA/cm³

Coronary Artery Stenosis Phantom Set AX, QRM-60106

Coronary Artery Stenosis Phantom Set BX, QRM-60107

Coronary Artery Stenosis Phantom Set DX, QRM-60108

Holder for Coronary Artery Phantoms, QRM-60109

Water Tank Phantom, QRM-10113

Thorax Phantom, QRM-20100

Image Gallery

1 / 16

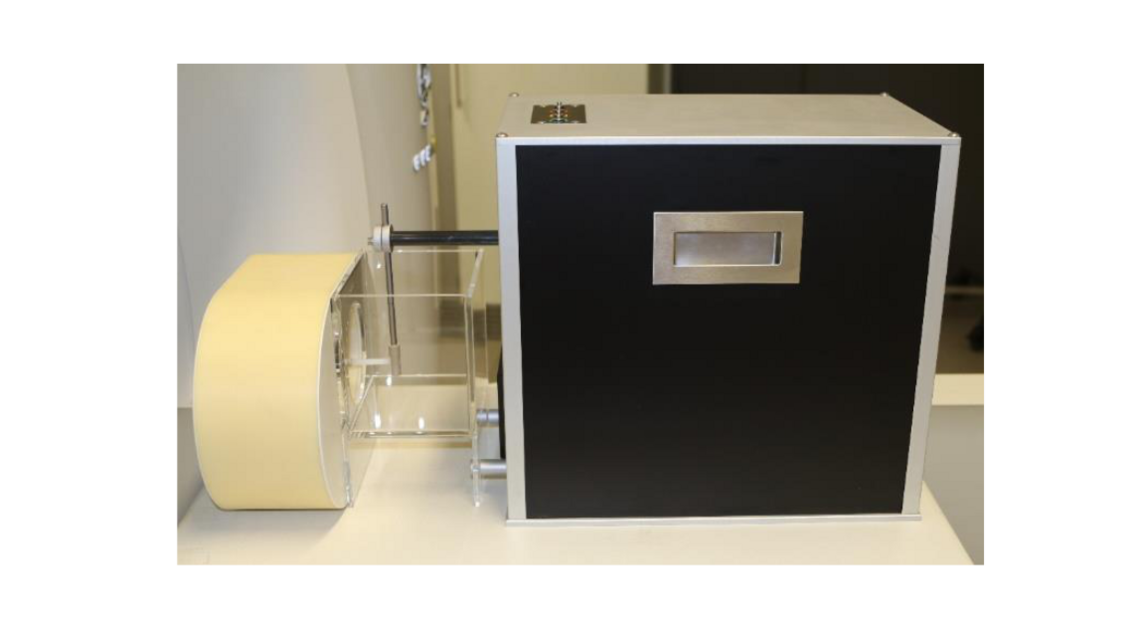

Sim4D-VL 3D-Motion Simulator (*) with coronary artery phantom (left side: QRM-Thorax Phantom)

*Not currently available. Please contact us.

2 / 16

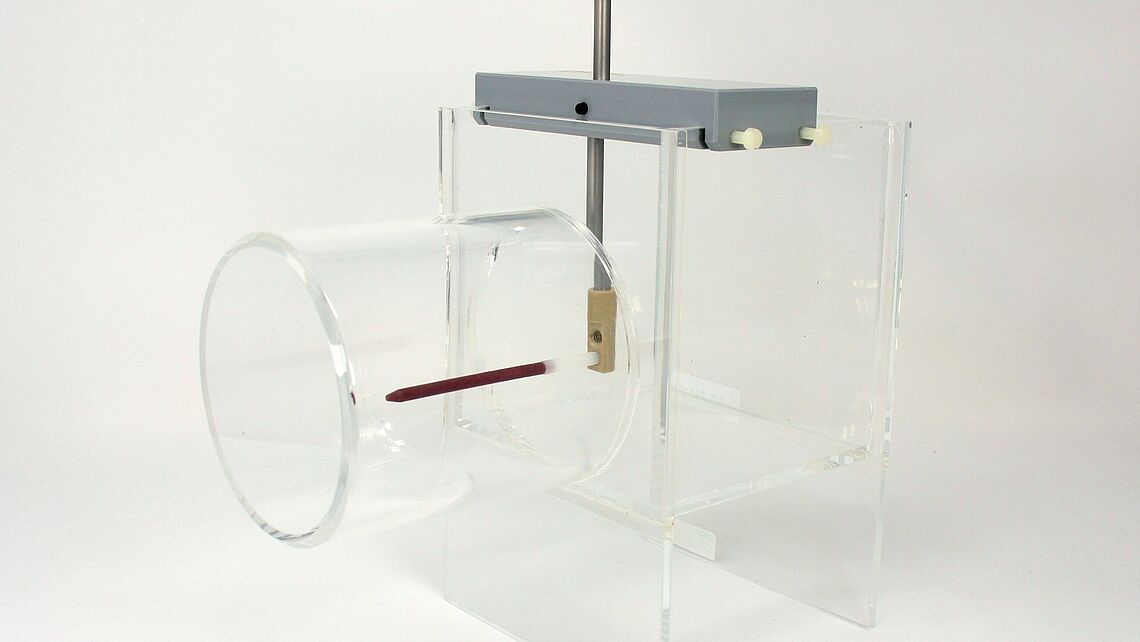

Static holder with coronary artery phantom in Water Tank (Holder: QRM-60109; Water Tank: QRM-10113)

3 / 16

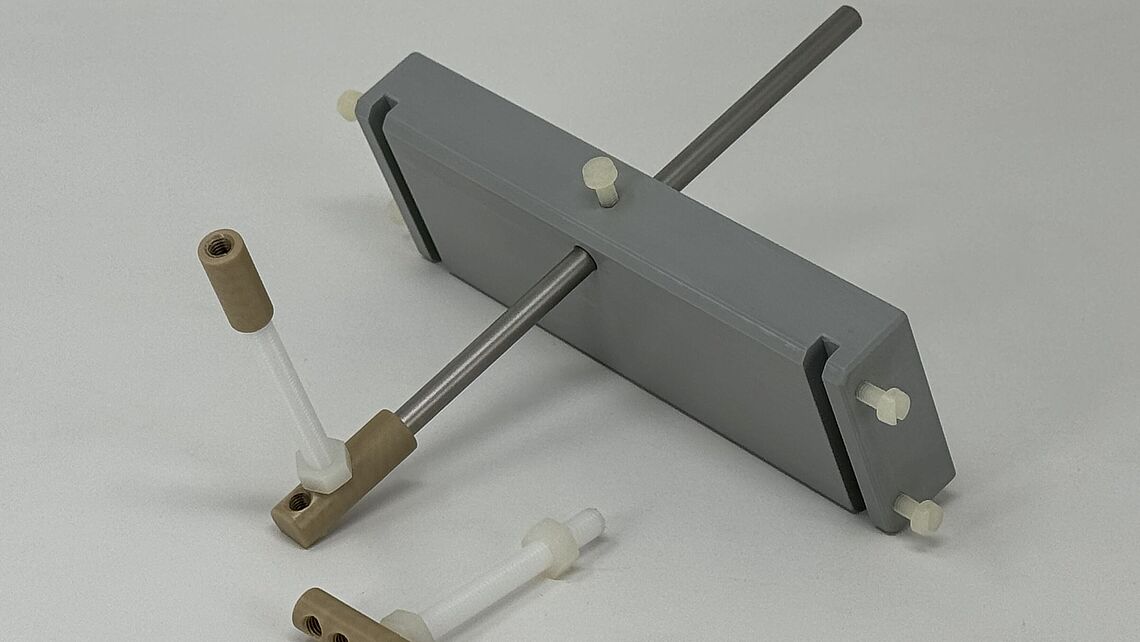

Holder for Coronary Artery Phantoms, QRM-60109

4 / 16

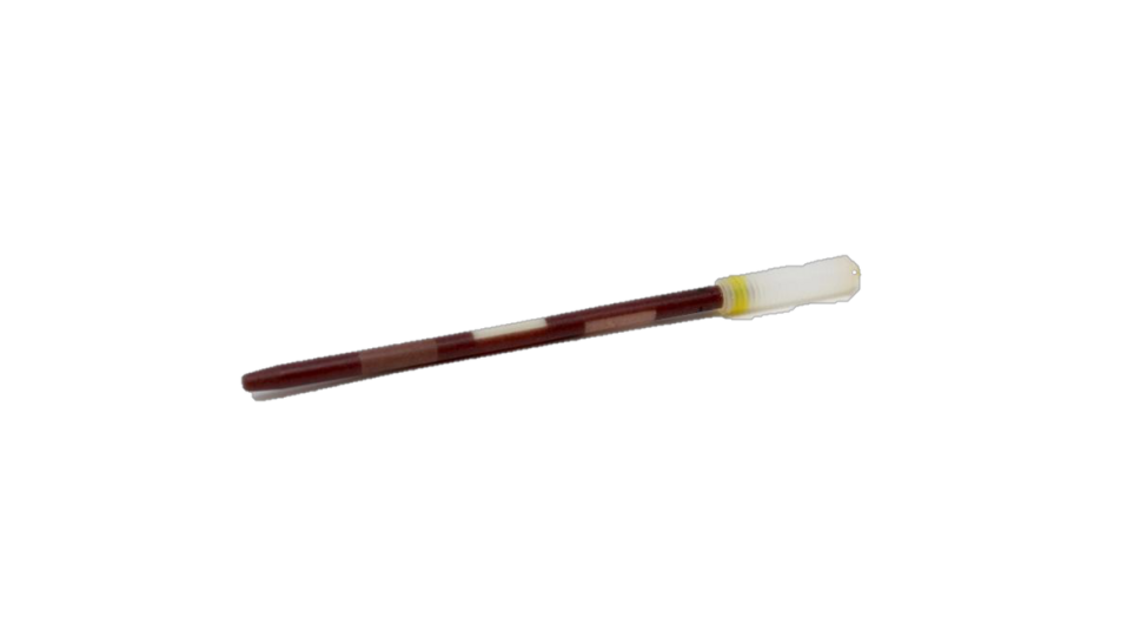

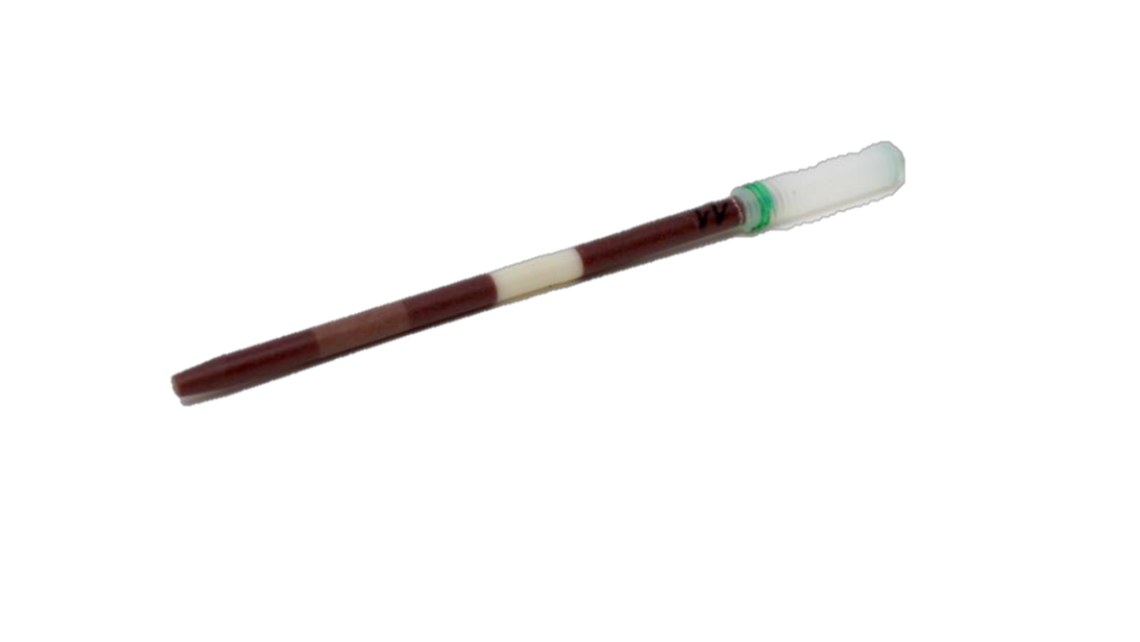

coronary artery phantom with three different partial stenosis

5 / 16

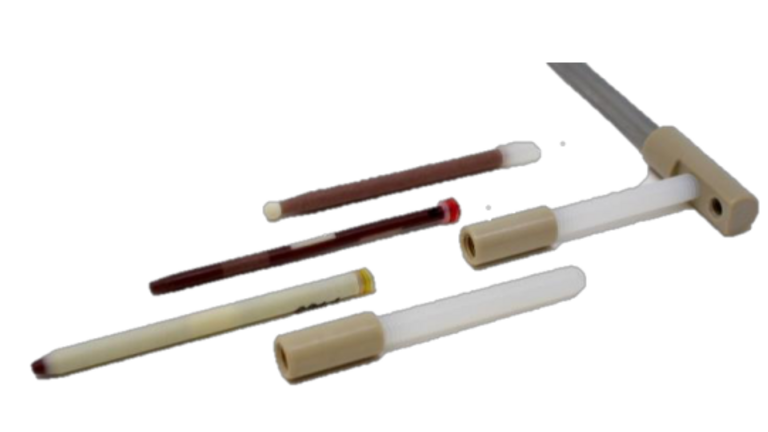

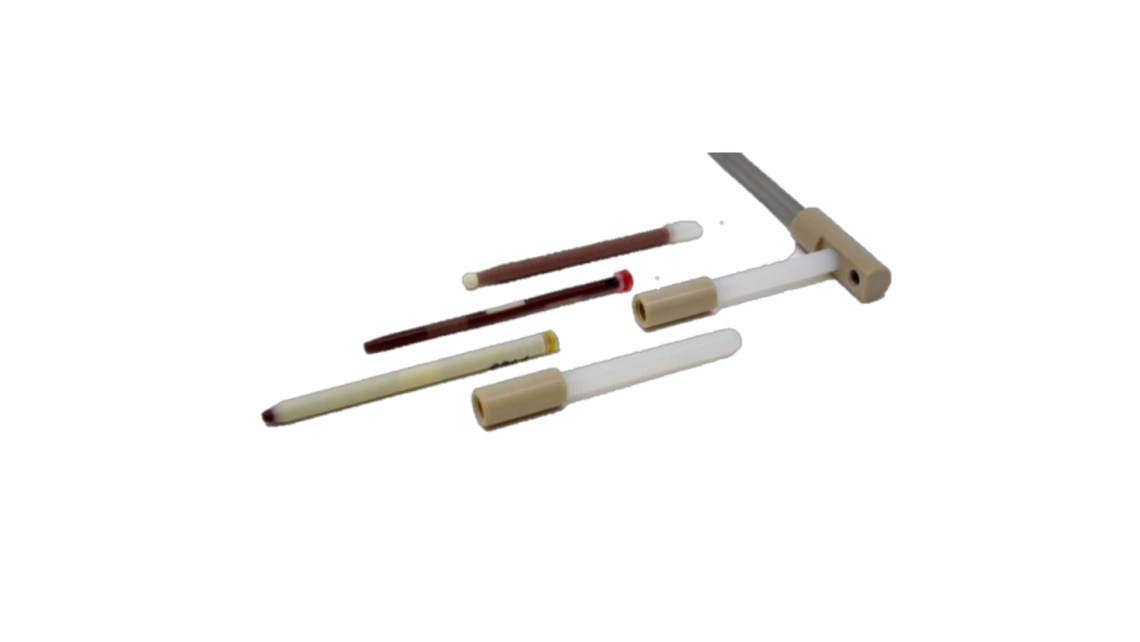

Different types of plaques, QA-phantoms and connectors for Sim4D-VL

6 / 16

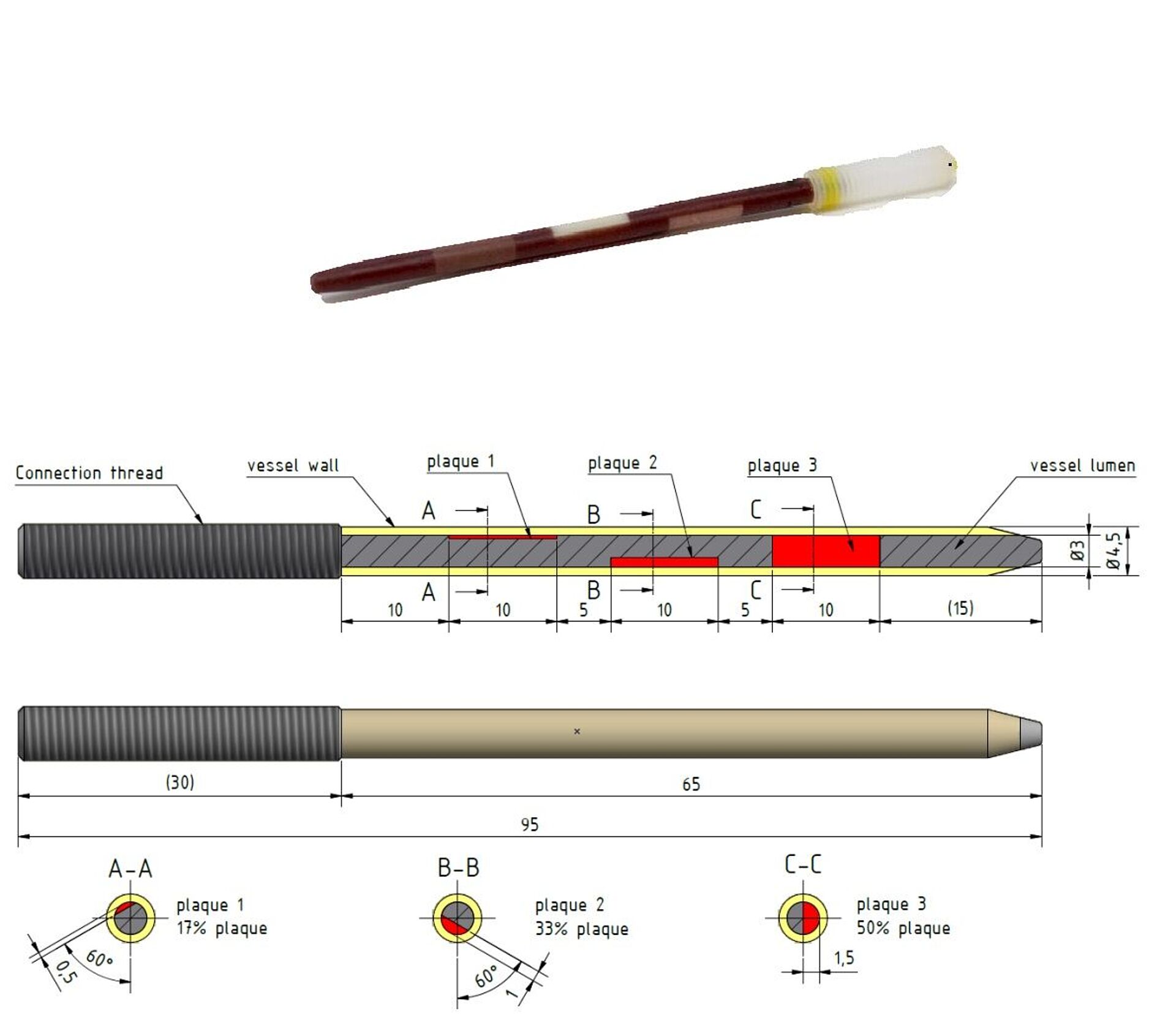

Coronary Artery Stenosis Phantom Set AX, QRM-60106
Six coronary artery stenosis phantoms with eccentric plaques (lumen narrowed by 17%, 33% and 50%):
three with iodinated blood-equivalent lumen (approx. 300 HU/120 kV) and three with blood-equivalent lumen.

7 / 16

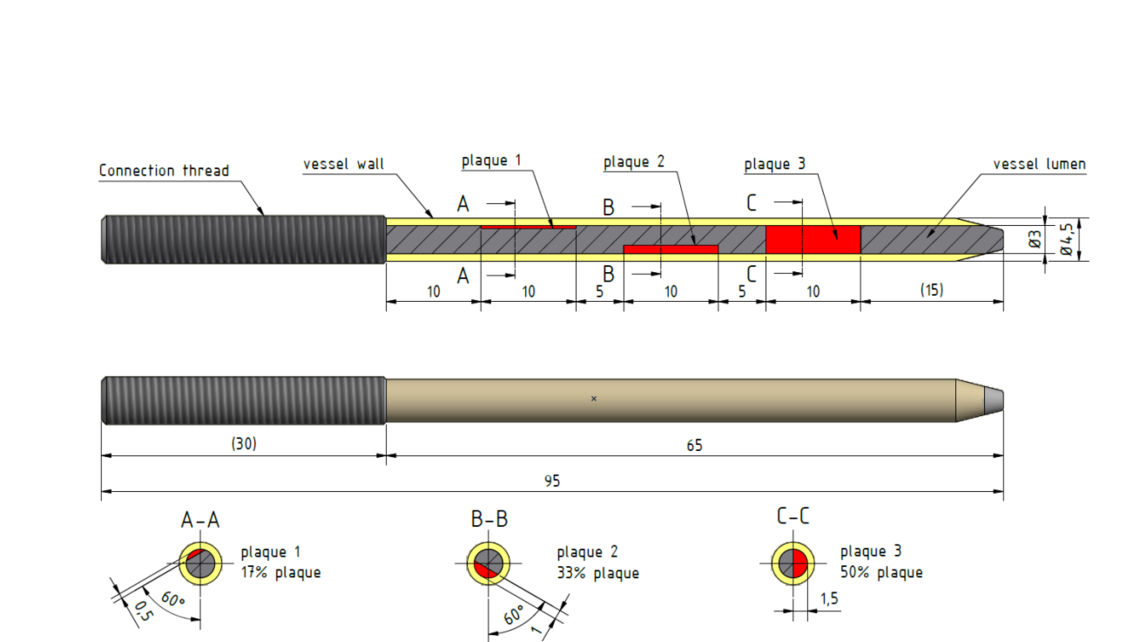

Coronary Artery Stenosis Phantom Set AX, QRM-60106 - measures in mm

8 / 16

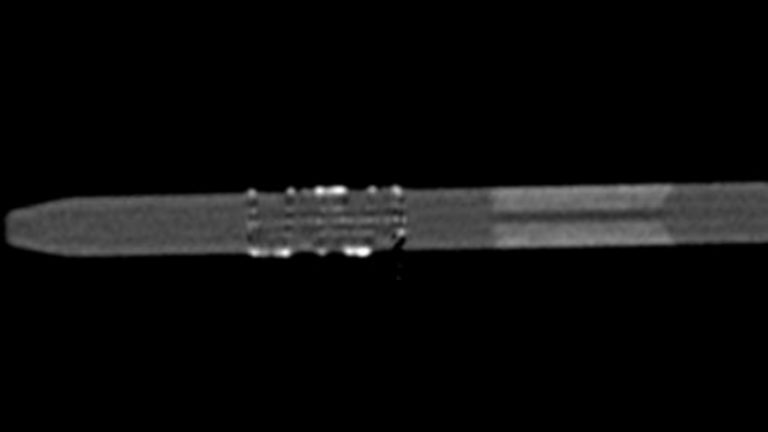

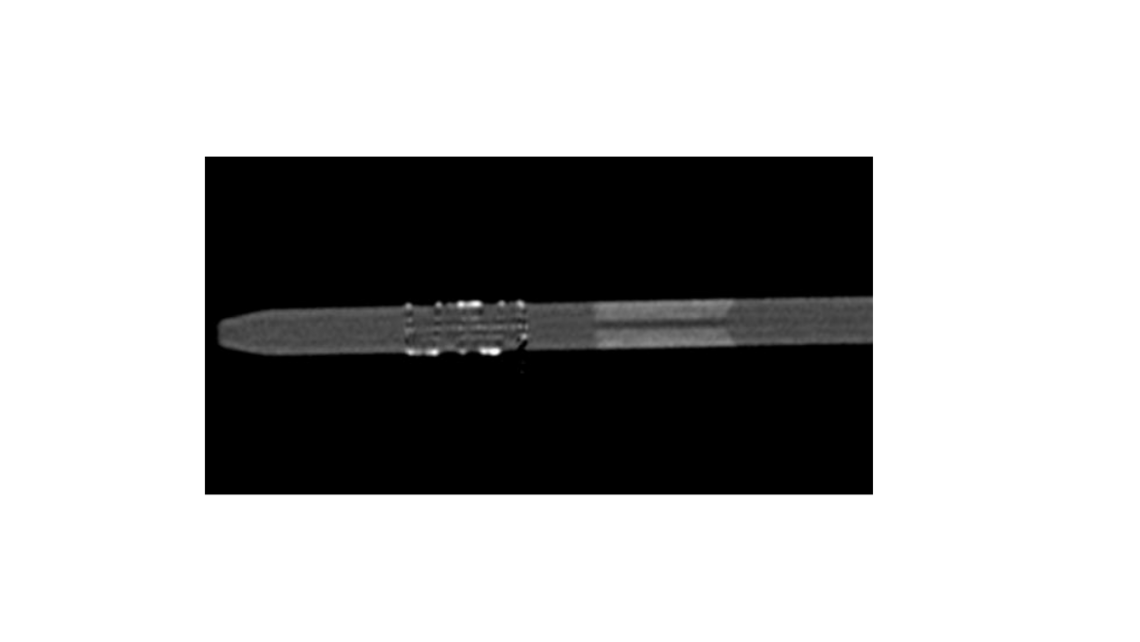

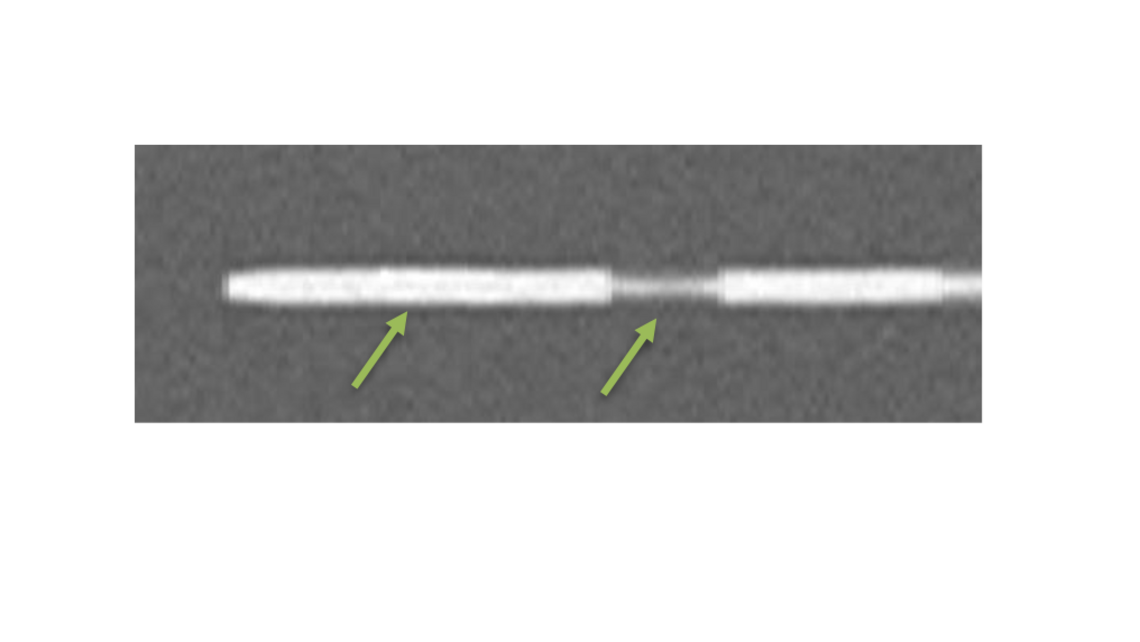

Sagittal view: X-ray image of phantom with three different stenosis in iodinated blood and vessel wall

9 / 16

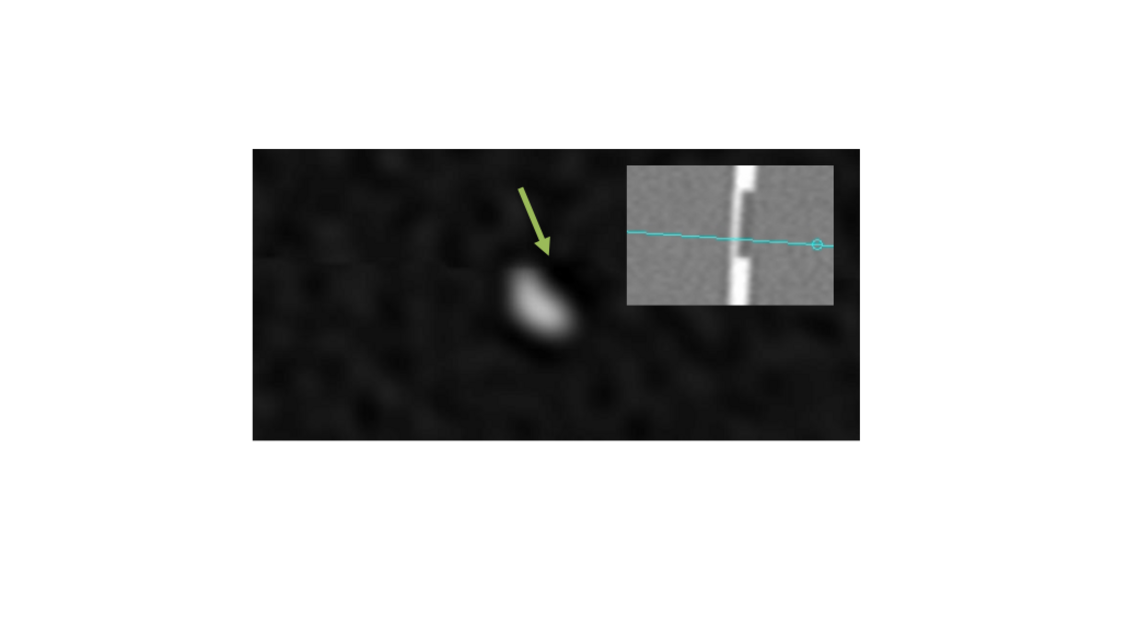

Axial view: 50% lipid plaque in iodinated blood

10 / 16

Coronary Artery Stenosis Phantom Set BX, QRM-60107
Four coronary artery stenosis phantoms with eccentric plaques (narrowed by 50%): two with iodinated-blood-equivalent lumen (approx. 300 HU/120 kV) and two with blood-equivalent lumen.

11 / 16

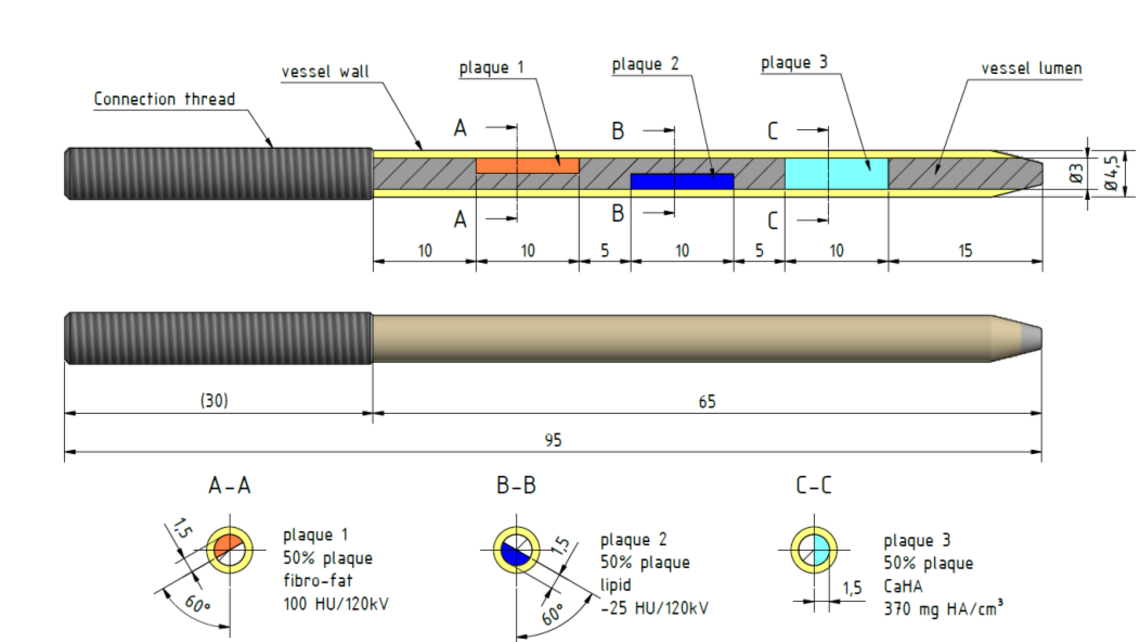

Coronary Artery Stenosis Phantom Set BX, QRM-60107- measures in mm

12 / 16

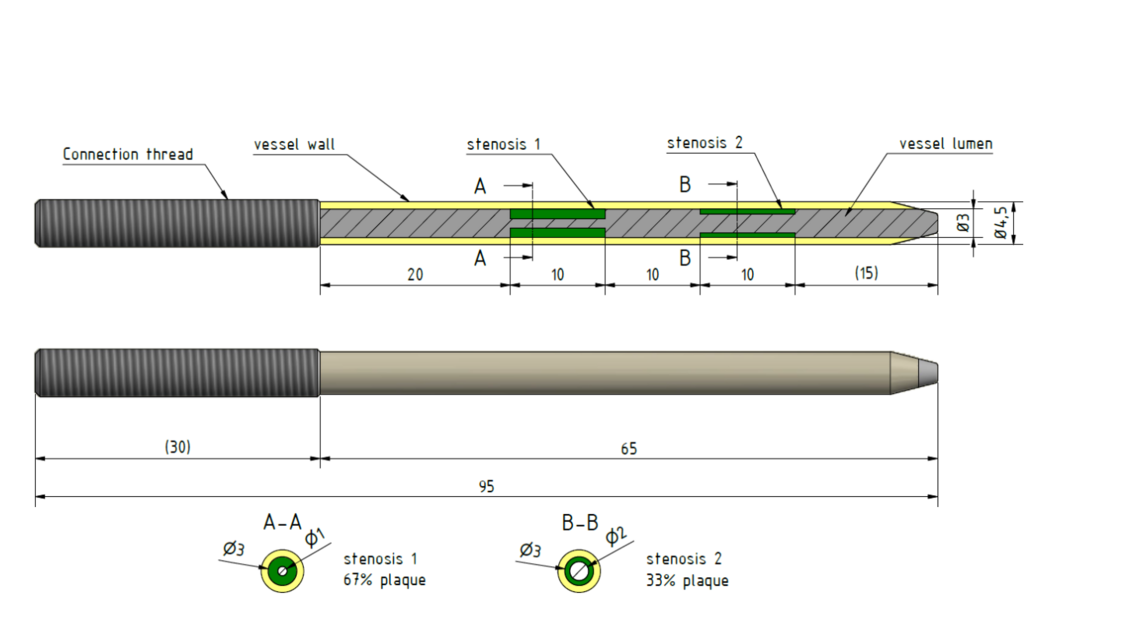

Coronary Artery Stenosis Phantom Set DX, QRM-60108

13 / 16

Coronary Artery Stenosis Phantom Set DX, QRM-60108
Six coronary artery stenosis phantoms with concentric plaques (narrowed by 67% and 33%): three with iodinated blood-equivalent lumen (approx. 300 HU/120 kV) and three with blood-equivalent lumen.
