Multi-Energy QA Phantom

Unmatched precision and robust reliability for excellence in multi-energy CT QA

Trusted by top-tier radiology teams, pioneering research institutions and global imaging leaders, it streamlines calibration and performance validation — ensuring consistent, accurate results across clinical practice and advanced research.

Key Advantages

Photon Counting CT

It is designed to test different types of CT systems with dual-energy, multi-energy or photon counting setups. All materials tested on NAEOTOM Alpha.

Iodine / CaHA Levels

It is equipped with a set of 26 inserts including rods enriched with several contrast media as well as CaHA.

AutoQA Plus Software

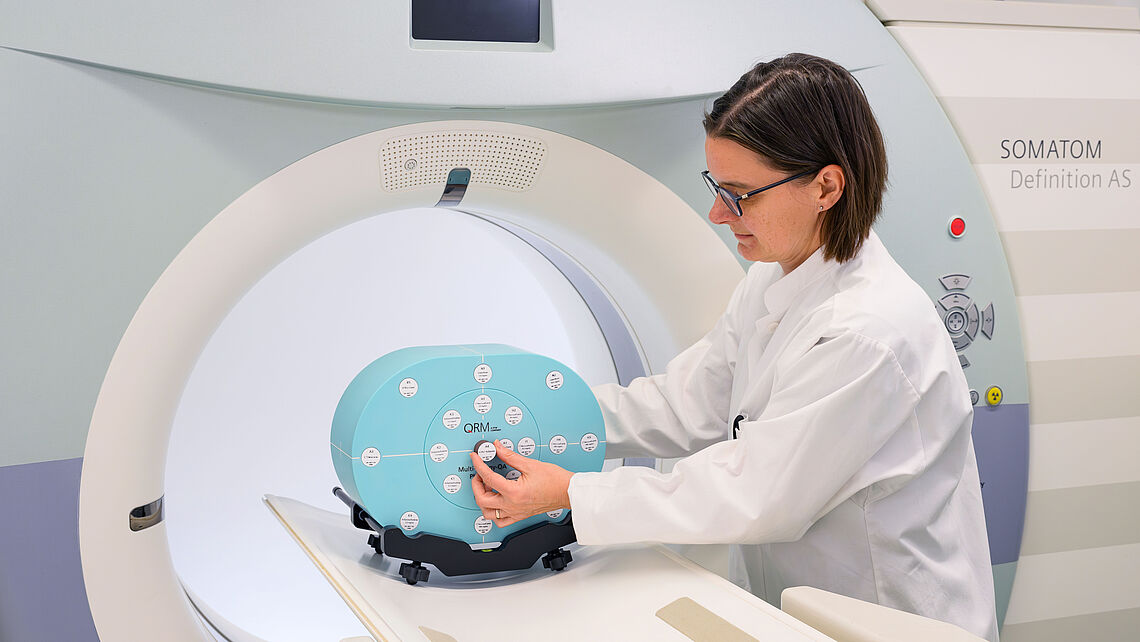

Once the phantom is accurately positioned at the isocenter and scanned using optimized protocols, IQ parameters are automatically assessed.

Compliance & Standards

The phantom is fully AAPM TG-299 compliant, making it suitable for establishing robust QA programs in hospitals and research institutions.

Application Benefits

Removable/stand-alone head phantom

The phantom features a detachable / standalone cylindrical head phantom (Ø 160 mm), designed with 10 holes (Ø 25 mm) to house various inserts. In addition, it includes an oval-shaped body offering 9 holes. An optional circular body (QRM-10151) with 9 holes is also available.

Includes 26 inserts

A set with a total of 26 inserts is provided for the measurements. The set consists of three water-equivalent inserts and one ICRU Adipose, liver and brain insert each.

For spectral measurements, six inserts with iodine concentrations from 0.5 to 15 mg/ml (water-equivalent base material), six inserts with iodine concentrations from 0.5 to 15 mg/ml (adipose-equivalent base material), five inserts with CaHA (calcium-hydroxyapatite) concentrations from 25 to 400 mg/ml (water-equivalent base material), two inserts with iron with 5 and 10 mg/ml (liver-equivalent base material), and a fillable insert for distilled water or other liquids are available.

Mass density, concentration and electron density are provided for all materials.

Additionally, inserts with other contrast media (e.g. gadolinium), various ICRU Tissues, metals and additional water-equivalent inserts can be ordered optionally.

Analysing Software

>AutoQA Plus automated image quality software

AutoQA Plus is an automated image quality software designed to provide repeatability and accuracy by reducing operator error during image quality tests of various spectral CT technologies from different manufacturers performed with the QRM Multi-Energy QA Phantom.

Applications

Applications

Multi-energy CT post-processing and material decomposition.

Investigate water and fat enriched with iodine and calcium.

Water-Equivalent Phantom for Photon Counting CT

Automated QA with AutoQA Plus

Enhance repeatability and reduce operator error using AutoQA Plus, an automated CT QA software that evaluates image quality parameters with precision.

The software detects the inserts with different concentrations and materials and places of the VOI (Volume of Interest)
The mean VOI (Volume of Interest) and the measured SD (Standard Deviation) of the CT numbers are measured and displayed on the “Trend Report Links”

Discover more in our brochure

automated CT QA software AutoQA Plus — AutoQA Plus SW for QRM phantoms, L999223

MEP - Set of 6 Gadolinium rods, QRM-10152

Multiple contrast studies

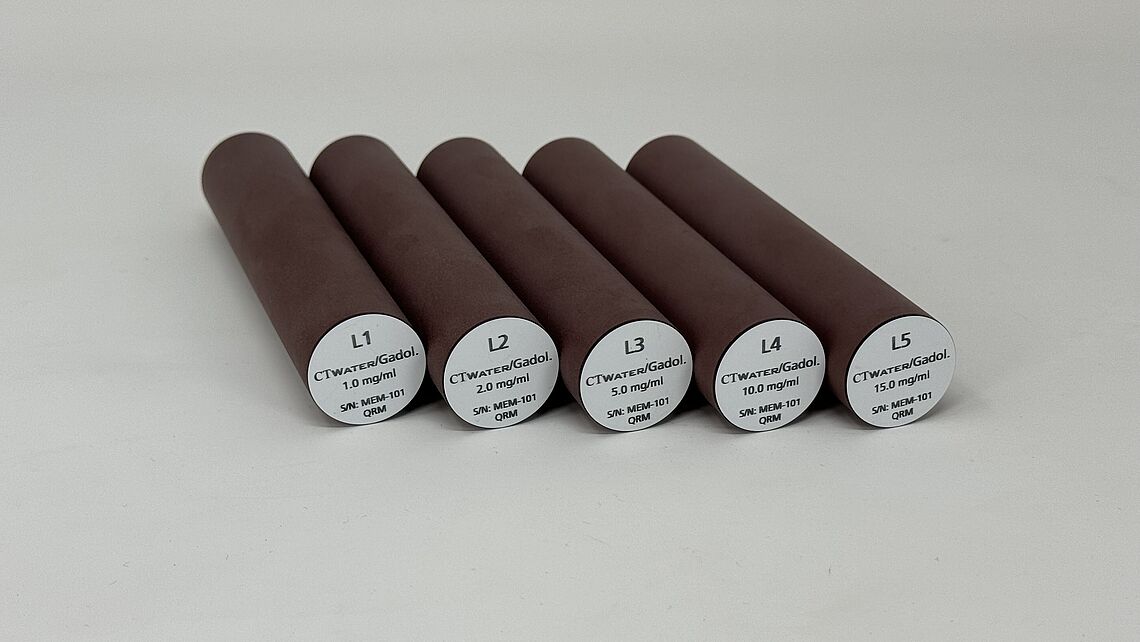

Optional inserts containing Gadolinium (Gd) are available for advanced K-edge imaging applications.

The CTwater + Gadolinium set (QRM-10152) includes six concentrations: 0.0, 1.0, 2.0, 5.0, 10.0 and 15.0 mg/cm³

Extension Rings and Expansion Set

Beyond the extension rings used to simulate obesity, two supplementary extension blocks are optionally available. These are particularly valuable for wide detector coverages and offer insights into the influence of scattered radiation on image quality, material mapping and VMI performance.

Expansion Set (QRM-10156), Extension Rings (QRM-10158, QRM-10159)

View in Catalog

Technical Specifications

Body
Phantom diameter	250 mm x 350 mm
Phantom height	125 mm
Holes	9 pcs., Ø 25 mm

Head insert:
Phantom diameter	160 mm
Phantom height	125 mm
Holes	10 pcs., Ø 25 mm

Material	CTwater (water-equivalent)

Inserts:
Diameter:	25 mm
Length:	125 mm

Phantom weight	6.0 kg
Includes AutoQA Plus SW Basic License
Includes Stand
Includes Transport Case

26 inserts included:
3 x CTwater
6 x Water + Iodine	0.5, 1.0, 2.0, 5.0, 10.0 and 15.0 mg/cm³
6 x Adipose+Iodine	0.5, 1.0, 2.0, 5.0, 10.0 and 15.0 mg/cm³
5 x Water + Ca hydroxyapatite	25, 50, 100, 200, 400 mg/cm³
2 x Liver + Iron	5.0 and 10 mg/cm³
1 x ICRU Adipose
1 x ICRU Liver
1 x ICRU Brain
1 x Tube (Fillable rod)

Calibration protocol:

Physical density, concentration, electron density, electron density relative to water (additional values upon request)

*Accuracy ± 5 HU of specified values.

**Specified values. Nominal values can vary with respect to manufacturing method and imaging device!

Multi-Energy QA Phantom, L981508

AutoQA Plus SW for imaging phantoms, L999222

AutoQA Plus SW for QRM phantoms, L999223

AutoQA Plus SW, upgrade to L999223, L999225

AutoQA Plus SW Maintanance 1-year, L999224

AutoQA Plus SW Maintanance 3-year, L999248

AutoQA Plus SW Maintanance 5-year, L999249

D320 Ring for Multi-Energy QA Phantom, QRM-10151

MEP - Set of 6 Gadolinium rods, QRM-10152

MEP - Set of 11 ICRU Tissue-Equivalents, QRM-10153

MEP - Set of CTwater rods (2 pcs.), QRM-10154

MEP - Set of CTwater rods (15 pcs.), QRM-10155

MEP - Expansion Set, QRM-10156

MEP - Transport Case MEP, QRM-10157

MEP - Extension Ring L, Adipose, QRM-10158

MEP - Extension Ring XL, Adipose, QRM-10159

MEP - Transport Case Expansion Set, QRM-10160

MEP - Fillable Rod, D25, QRM-10161

Phantom Cradle (MEP and other Phantoms), QRM-10162

Adj. Screw base for phantom cradle (1pc), QRM-10163

Comprehensive Electron Density Phantom, QRM-10164

CED - Rod D25/D10, Titanium core, QRM-10165

CED - Rod D25/D10, Stainless Steel core, QRM-10166

CED - Rod D25/D10, Aluminum core, QRM-10167

Image Gallery

1 / 16

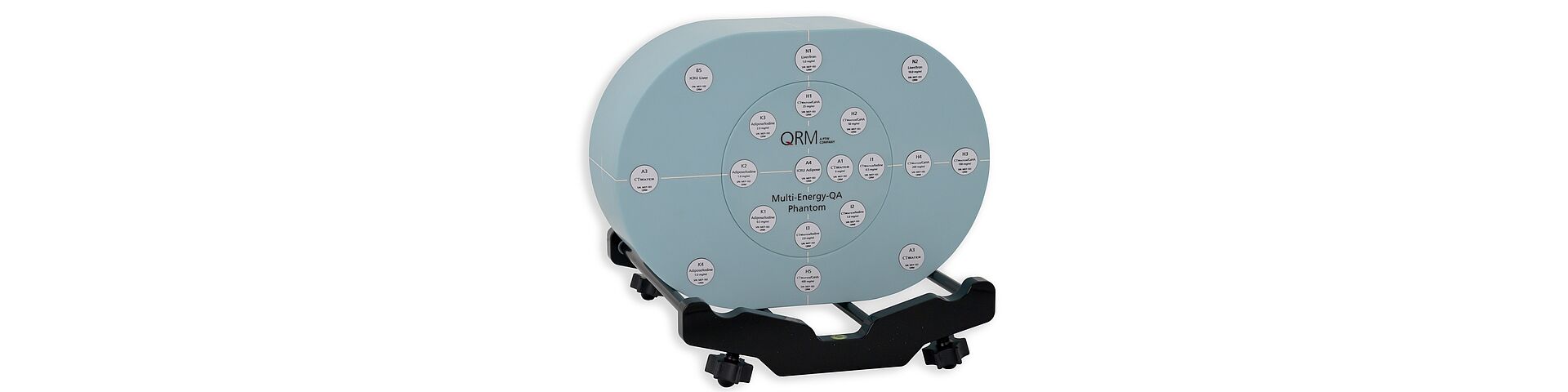

QRM Multi-Energy QA Phantom equipped with a set of 26 inserts (L981508)

2 / 16

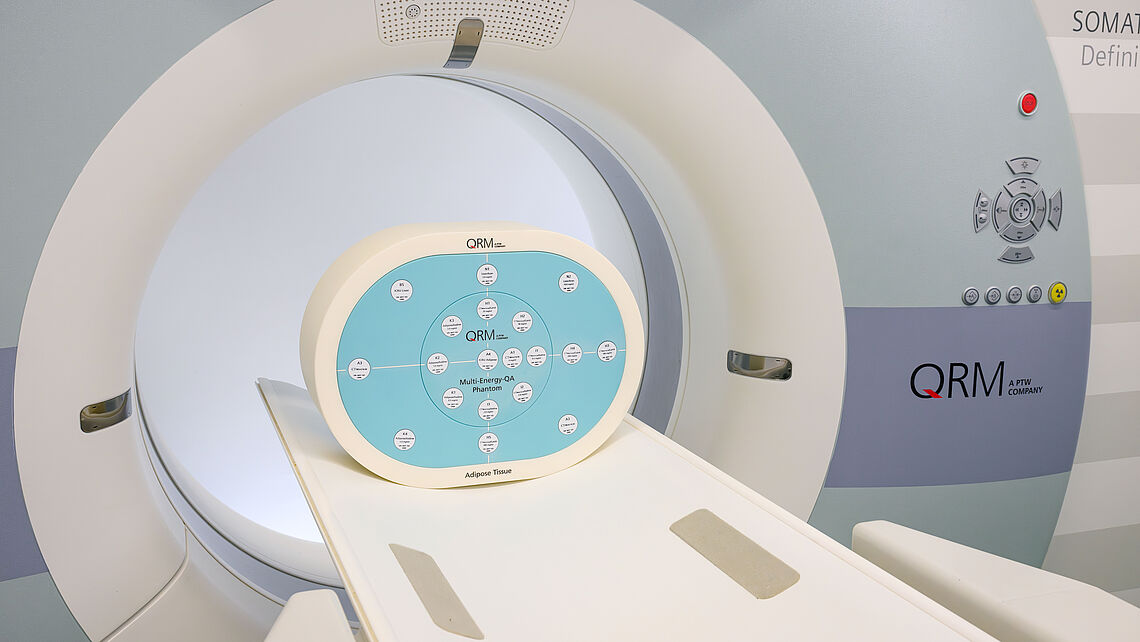

QRM Multi-Energy QA Phantom equipped with an L-size extension ring (QRM-10158)

3 / 16

QRM Multi-Energy QA Phantom equipped with an XL-size extension ring (QRM-10159)

4 / 16

QRM Multi-Energy QA Phantom equipped with D320 Ring for Multi-Energy QA Phantom (QRM-10151)

5 / 16

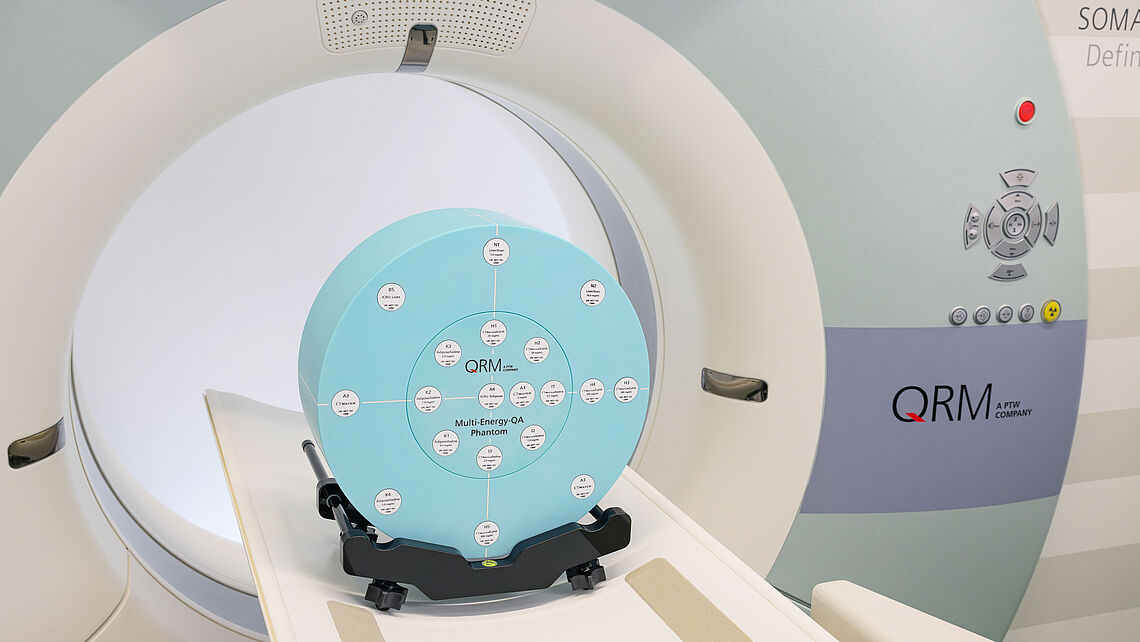

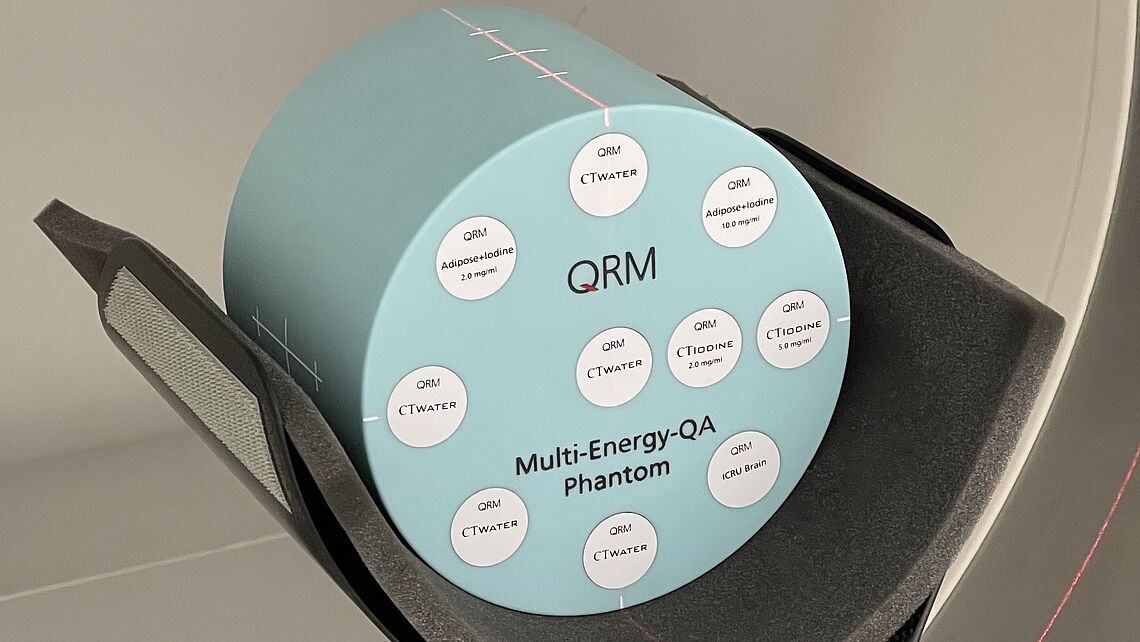

Removable/stand-alone head phantom (Ø 160 mm cylinder) with 10 holes

6 / 16

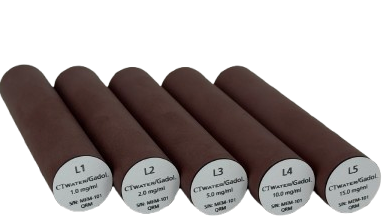

Set of & Gadolinium rods (QRM-10152)

7 / 16

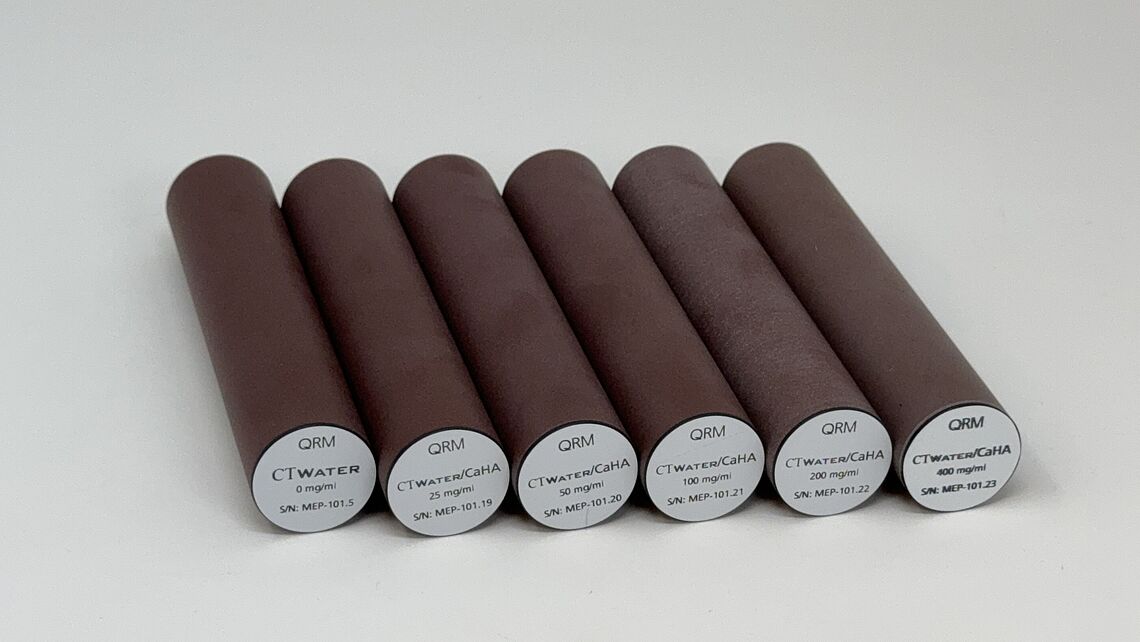

The set of CaHA Inserts

8 / 16

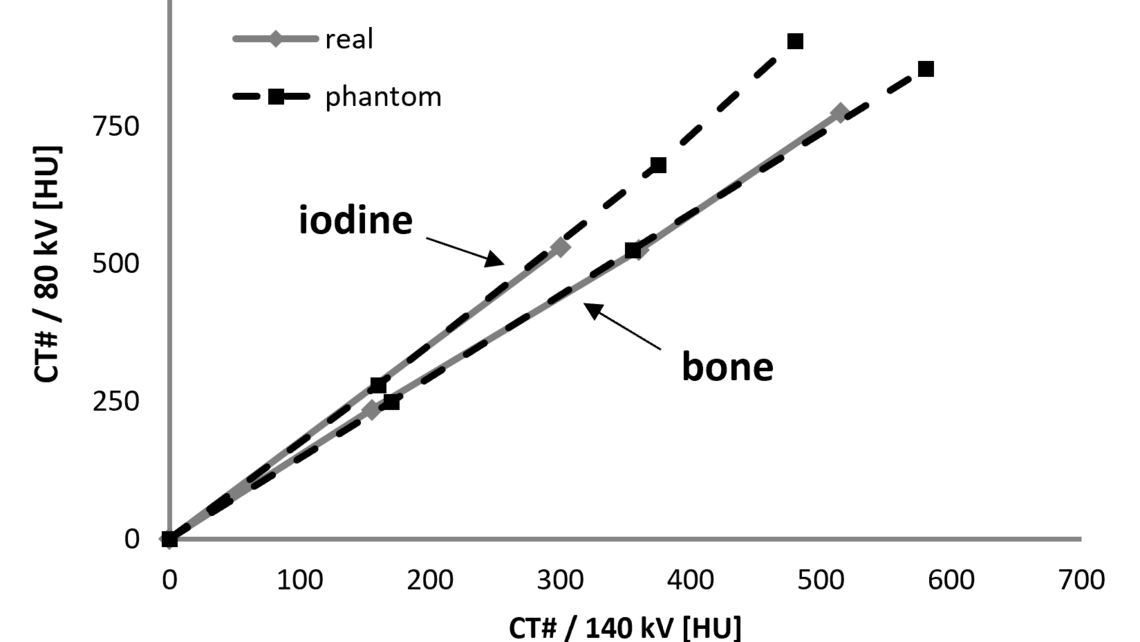

CT# of Iodine and Ca-HA-enriched material

9 / 16

1) Different base materials enriched with iodine
2) Ca/Iodine separation

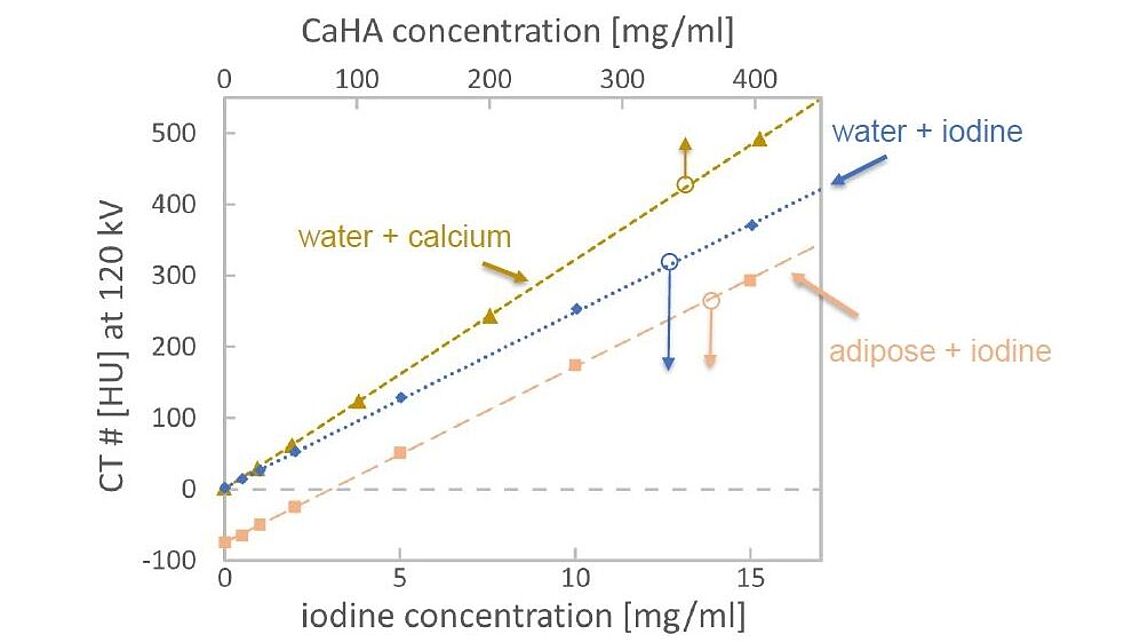

3) High degree of linearity

10 / 16

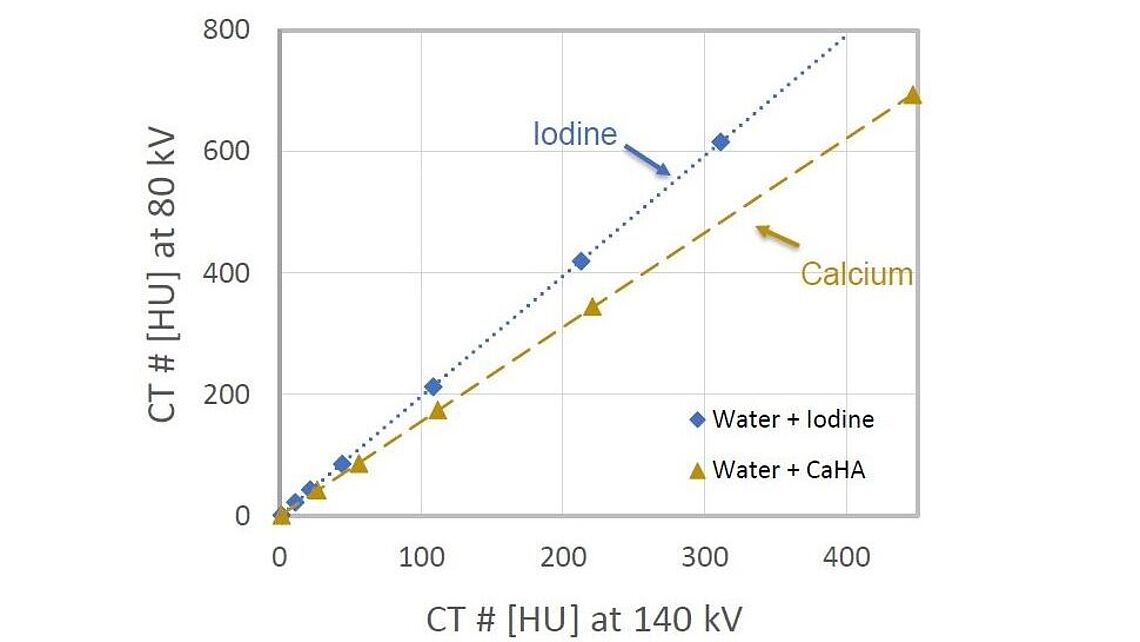

Low vs high energies

11 / 16

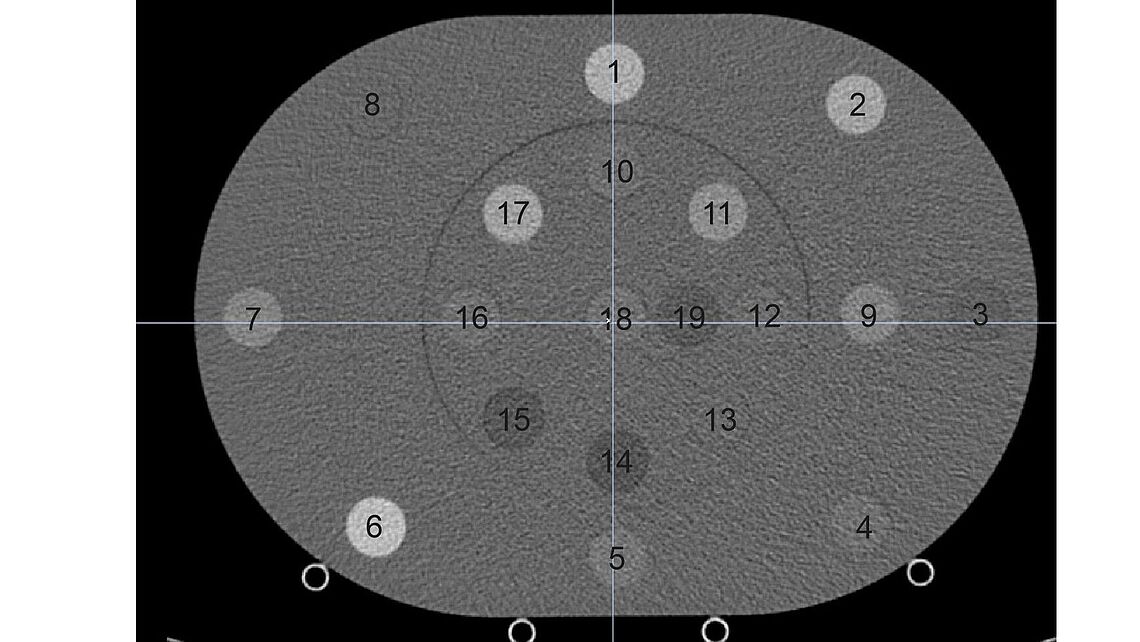

1) X-ray opaque numbering inside the end of the rod
2) Materials can be allocated to the scans retrospectively

12 / 16

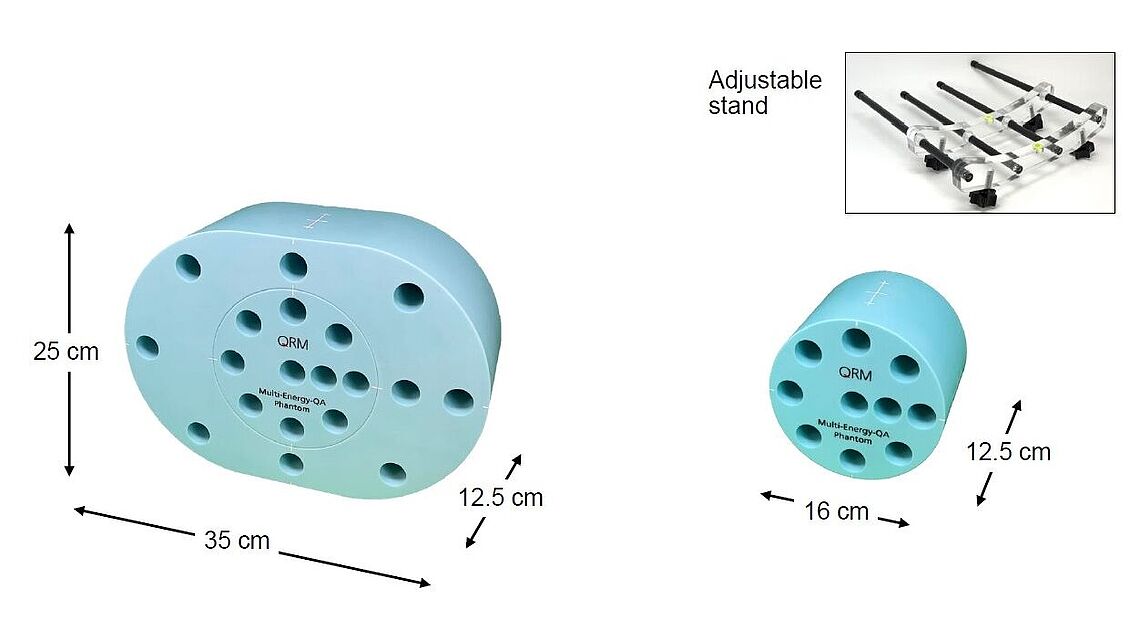

Drawings of Multi-Energy Phantom

13 / 16

Adjustable Stand

14 / 16

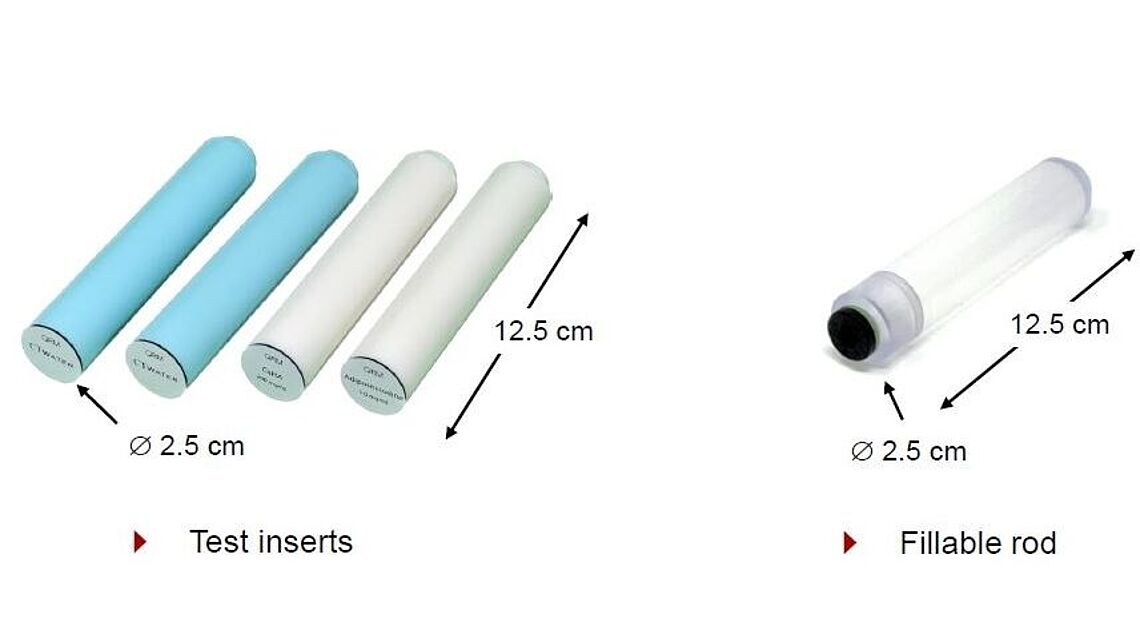

Test inserts and fillable rods

15 / 16

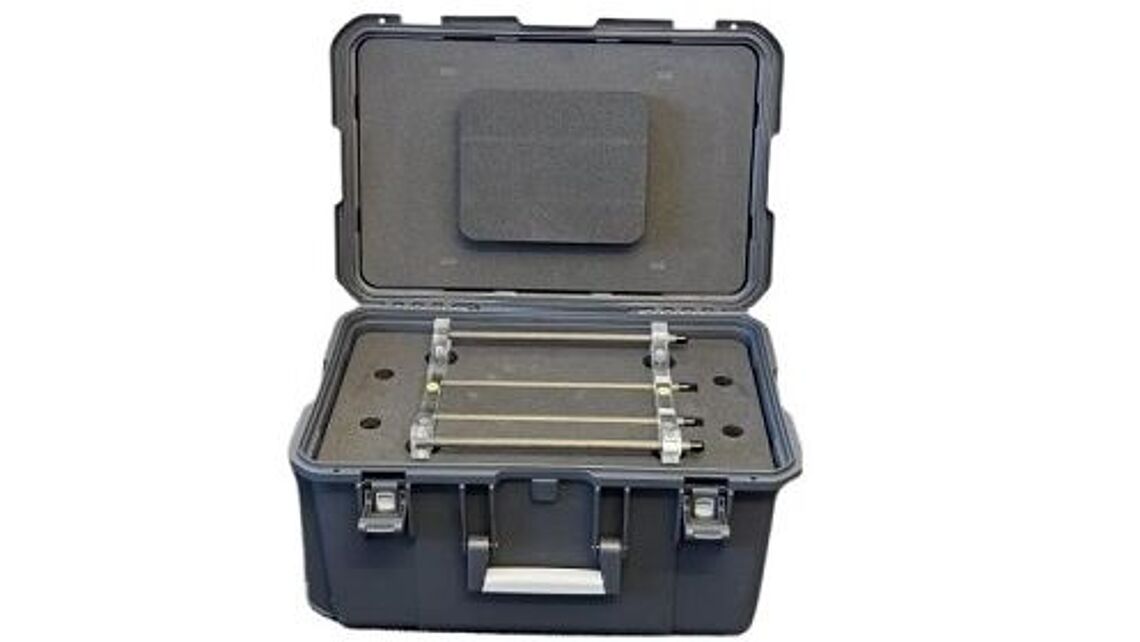

MEP- Transport Case MEP, QRM-10157

16 / 16

Options of Multi-Energy Phantom
