Micro-CT Bar Pattern Phantoms

For the determination of in-plane and axial spatial resolution

High resolution contrast

Evaluate axial and sagittal spatial resolution with 3 different models

Micro-CT Bar Pattern Air, QRM-70113
Micro-CT Bar Pattern Resin, QRM-70114
Micro-CT Bar Pattern NANO, QRM-70119

Line and hole patterns (1– 150 microns)

3 different models, including a variety of different line and hole patterns

Micro-CT Bar Pattern Air or Resin (5 – 150 µm (i.e. 100 to 3.3 lp / mm) structures on the 5 mm x 5 mm chips)

Micro-CT Bar Pattern, NANO (1 – 10 µm (i.e. 500 to 50 lp / mm) structures on the 3 mm x 3 mm chips)

Preclinical or Industrial micro-CT

The Micro-CT Bar Pattern, Resin or Micro-CT Bar Pattern, NANO are intended to be used in preclinical imaging (small animal CT)
It is recommended using the Micro-CT Bar Pattern, Air or Micro-CT Bar Pattern, NANO for the resolution tests in industrial CT (NDT)

Micro-CT Bar Pattern Phantoms Interactive

3 different models: Resin or Air or Nano

3 different models: Resin or Air or Nano

The Micro-CT Bar Pattern Phantoms are used to assess the spatial resolution in micro-CT in a direct visual manner. The phantoms offer an alternative to indirect methods for the evaluation of spatial resolution in high-resolution X-ray imaging modalities.

Bar and point structures down to 5 microns (air, QRM-70113 and resin, QRM-70114) or down to 1 micron (NANO, QRM-70119)

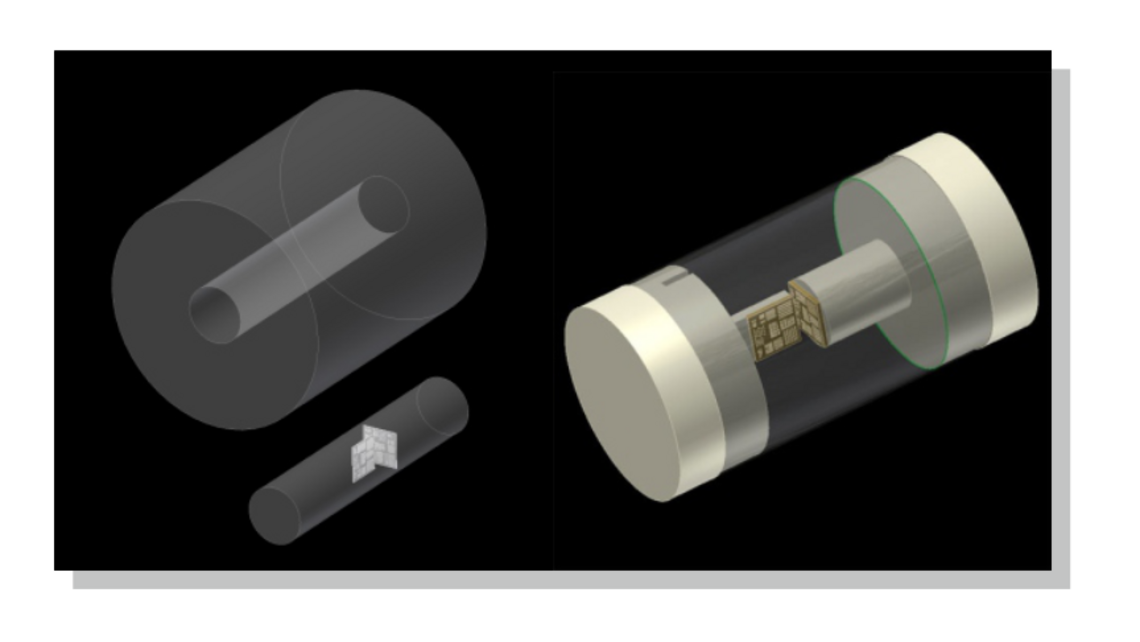

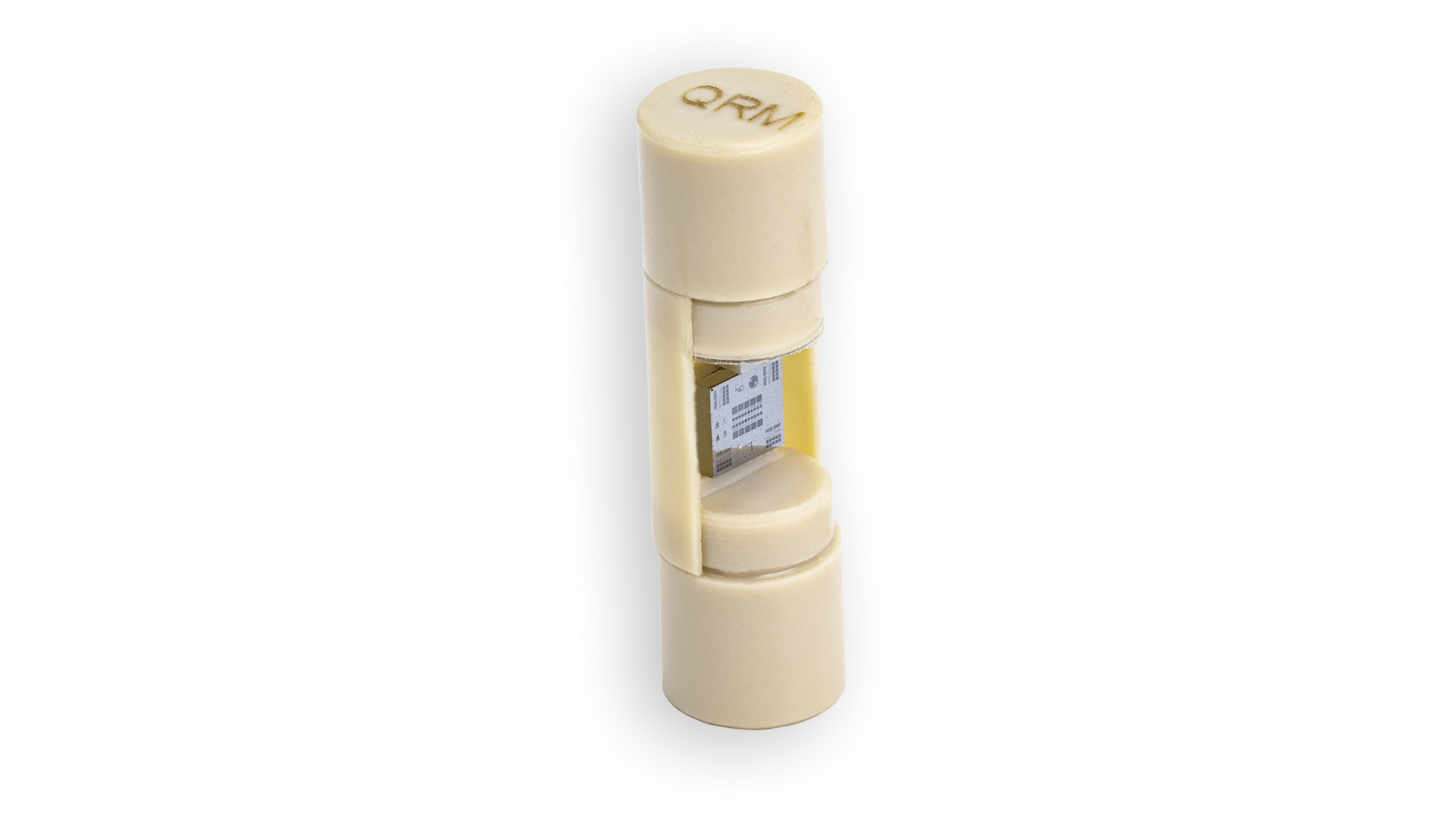

Interior view of Micro-CT Bar Pattern Phantoms

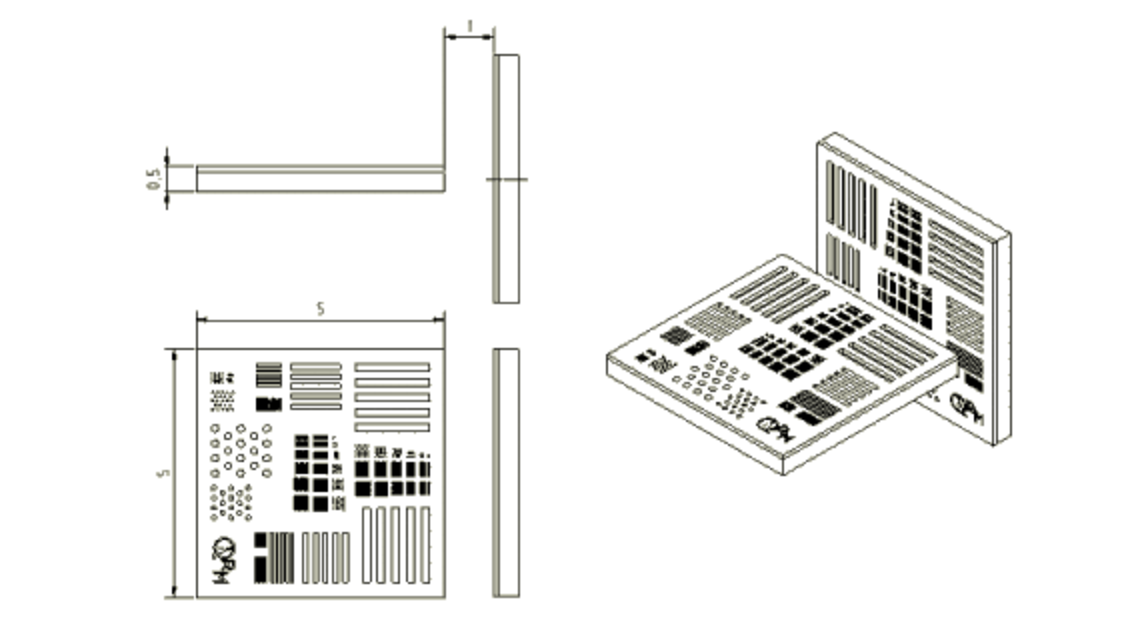

Two resolution test chips in perpendicular orientation

The phantoms contain two chips, one orientated axial and one oriented perpendicular (sagittal) to it.

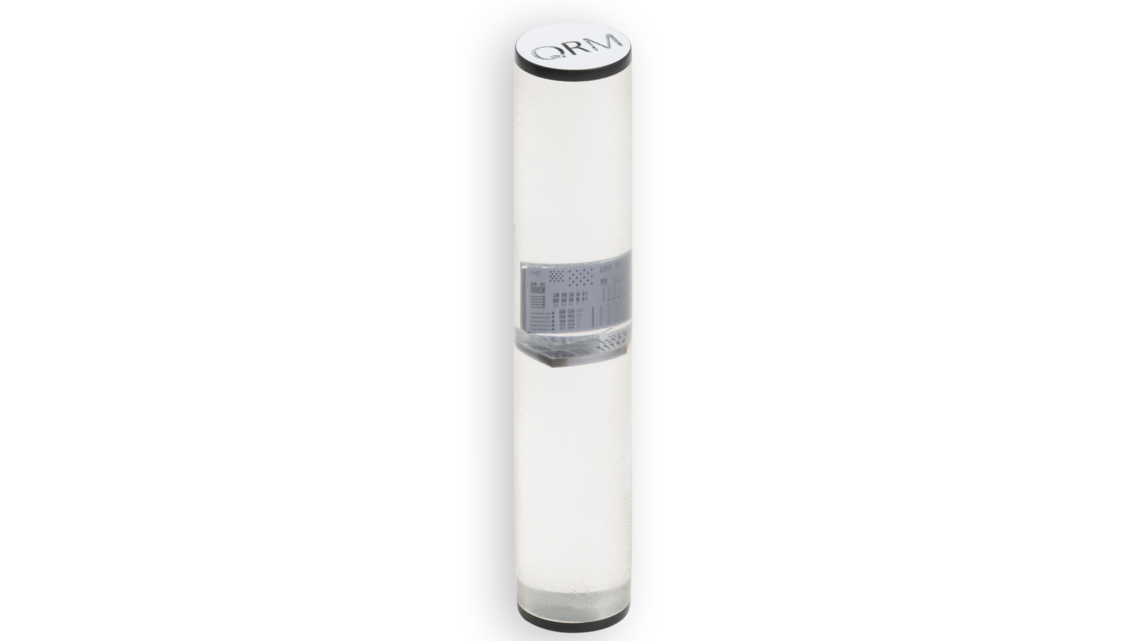

The chips are mounted on a slim support in air (QRM-70113, QRM-70119) or embedded within a resin cylinder (QRM-70114).

The optimized arrangement of the different bar and point structures allows for the evaluation of spatial resolution in the center as well as in the periphery of the image in one single measurement.

Bar and point structures down to 1 micron

Bar and point structures down to 1 micron

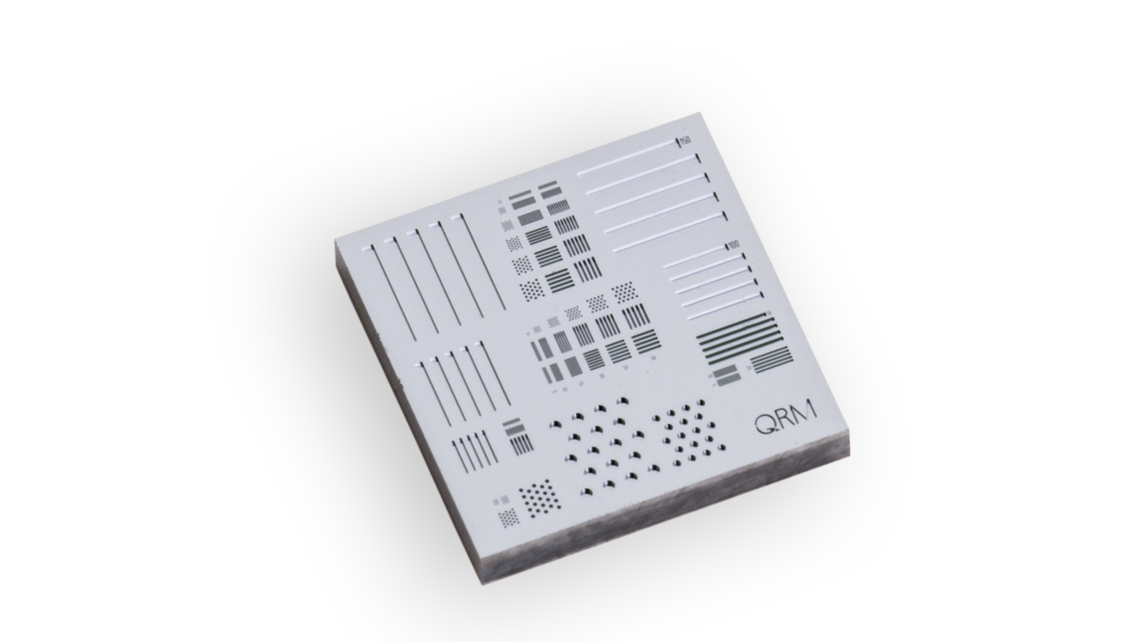

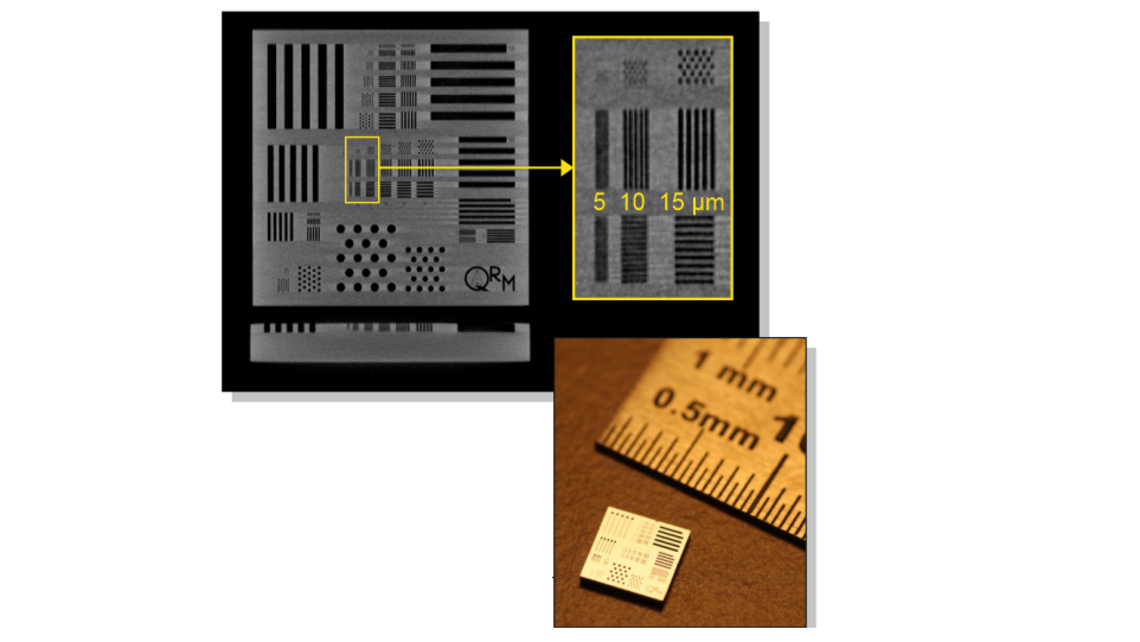

The chips have several line and point patterns ranging from 5 to 150 microns, as shown on the Micro-CT Bar Pattern Air chip.

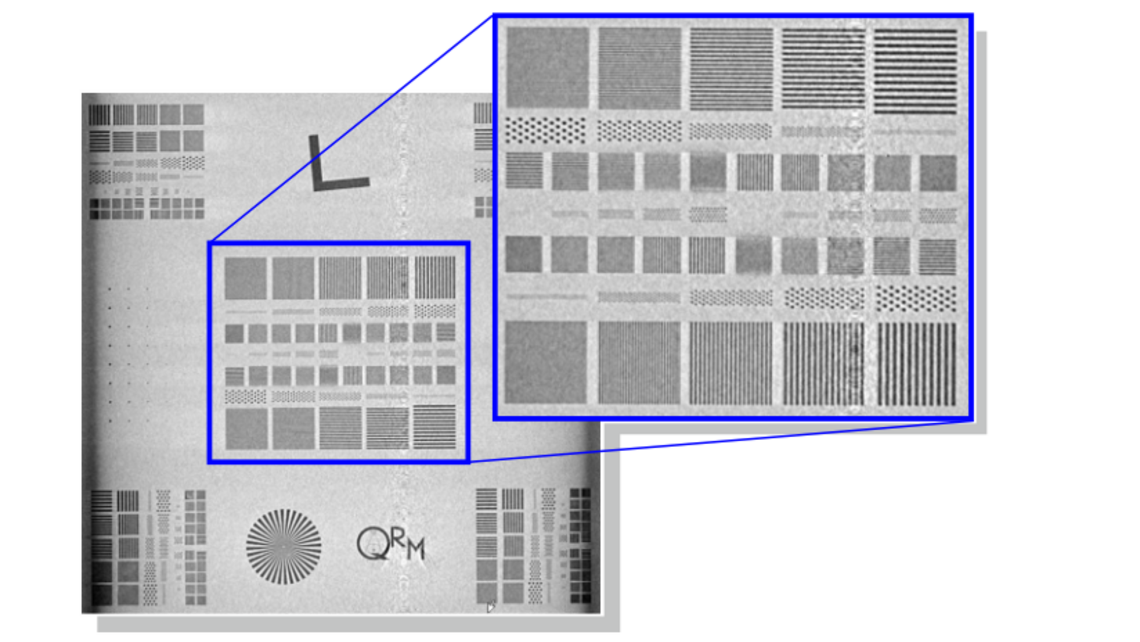

Micro-CT Bar Pattern NANO allows line widths and points down to 1 micron.

Provides high resolution contrast

Provides high resolution contrast

Our bar pattern phantoms contain a variety of bar and point structures.

Both 3 mm x 3 mm chips on Micro-CT Bar Pattern, NANO Phantom have several lines and point patterns down to 1 micron, corresponding to 500 to 50 lp / mm

Both 5 mm x 5 mm chips on Micro-CT Bar Pattern, Air and Resin phantoms have several lines and point patterns down to 5 microns, corresponding to 3.3 to 100 lp /mm

Spatial resolution evaluation of 3D volumetric scans in preclinical and industrial Micro-CT

Micro-CT Bar Pattern Phantoms (Air or Resin)

The Micro-CT Bar Pattern Phantoms (Air or Resin) contain two chips, one orientated axial and one oriented perpendicular (sagittal) to it. The chips are mounted on a slim support in air (Micro-CT Bar Pattern Air, QRM-70113) or embedded within a resin cylinder (Micro-CT Bar Pattern Resin, QRM-70114). The optimized arrangement of the different bar and point structures allows for the evaluation of spatial resolution in the center as well as in the periphery of the image in one single measurement.

QRM-70113, QRM-70114: The 5 mm x 5 mm chips contain bar and point patterns ranging from 5 to 150 microns (i.e. 100 to 3.3 lp / mm). The depth of the structures varies between 70 and 150 microns.

For other dimensions of the housing, please contact us.

Contact us!

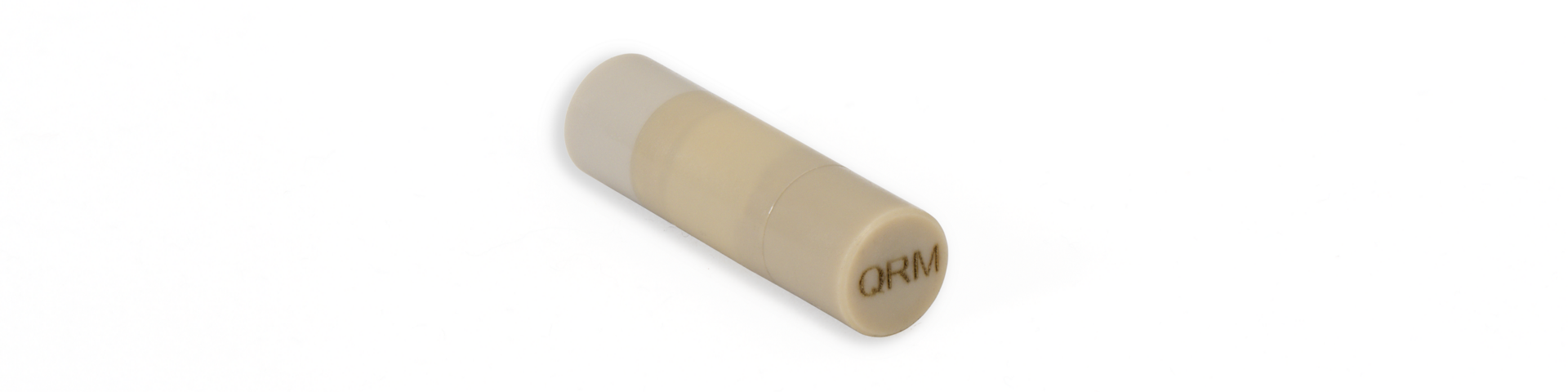

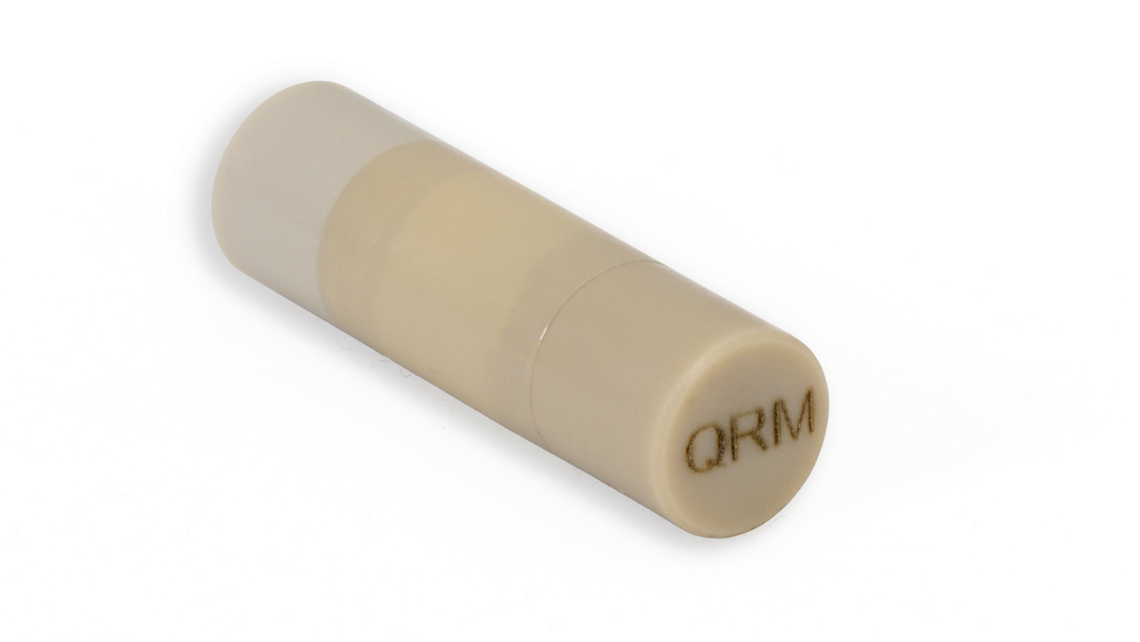

Micro-CT Bar Pattern NANO, QRM-70119

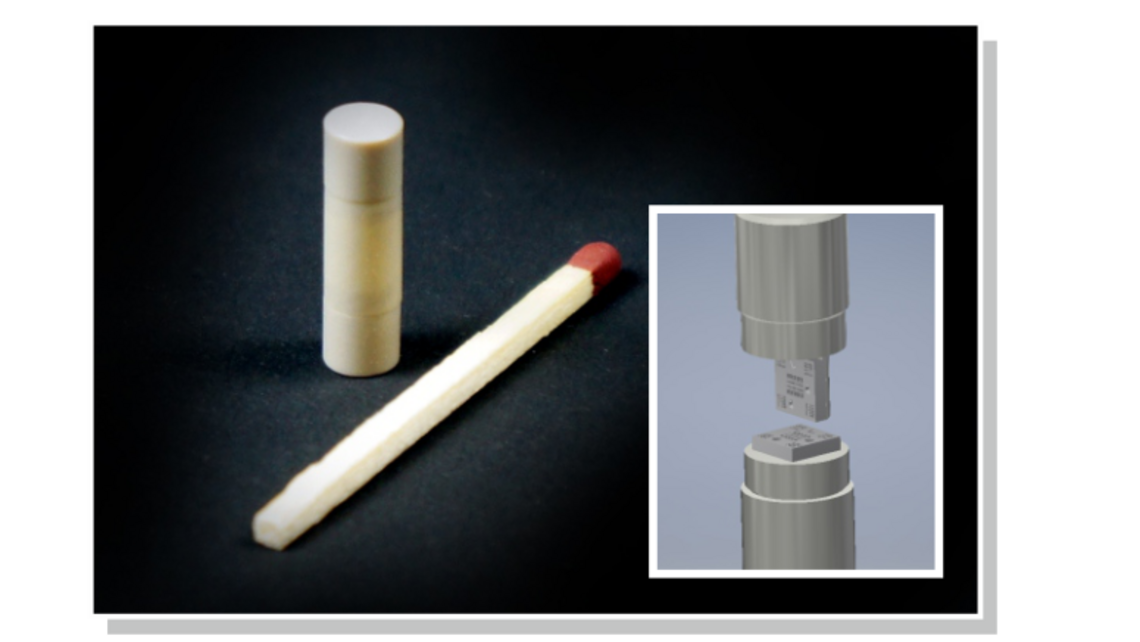

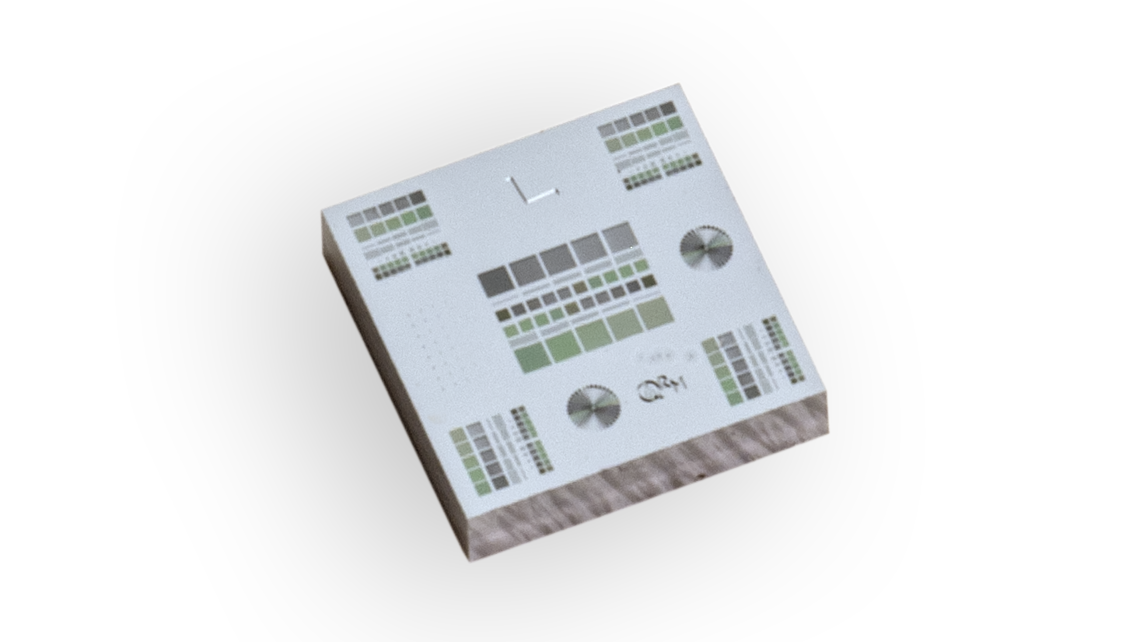

The Micro-CT Bar Pattern NANO, QRM-70119 phantom contains two chips, one orientated axially and one oriented in perpendicular (sagittal) to it. The chips are mounted on a slim support in air. The optimized arrangement of the different bar and point structures allows for the evaluation of the spatial resolution in the center as well as in the periphery of the image in one single measurement.

The 3 mm x 3 mm chips contain bar and point patterns ranging from 1 to 10 microns (i.e. 500 to 50 lp / mm). The depth of the structures varies between 5 and 15 microns. In addition, a slanted edge and a so-called Siemens-star (actinomorphic star) are placed on the chip.

For other dimensions of the housing, please contact us.

Contact us!

Technical Specifications

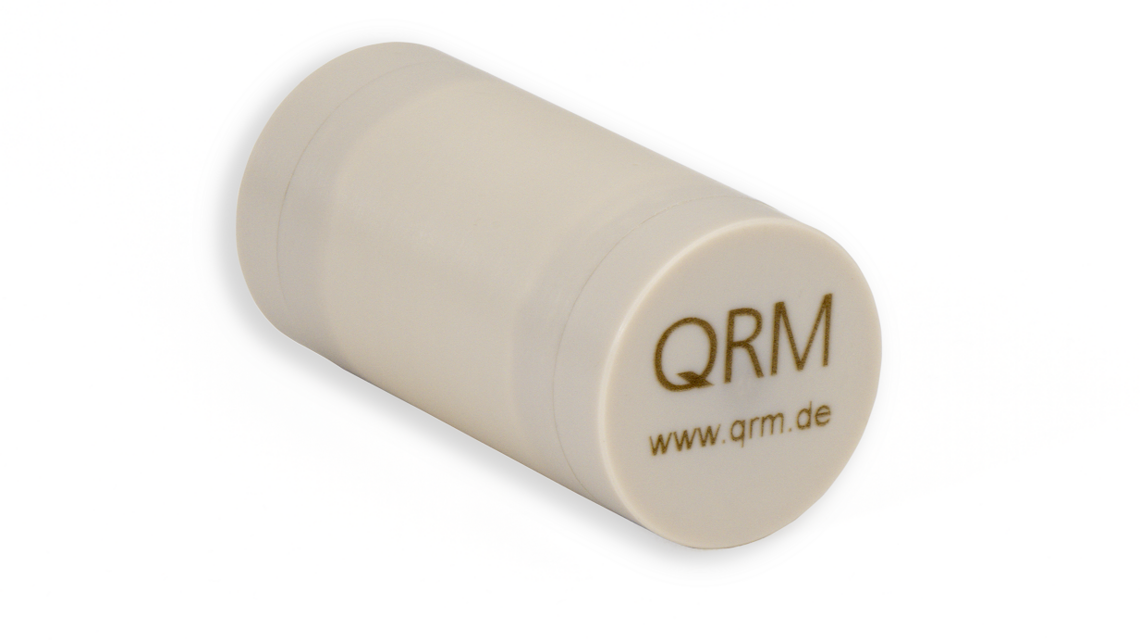

Micro-CT Bar Pattern Phantom, air
Phantom diameter:	20 mm
Phantom height:	40 mm
Phantom wall thickness:	0.2 mm
Phantom material:	air / plastic
Contrast of pattern:	silicon / air

Micro-CT Bar Pattern Phantom, resin
Phantom diameter:	8 mm
Phantom height:	40 mm
Phantom material:	resin
Contrast of pattern:	silicon / resin

Chip dimension:	5 mm x 5 mm
Chip height:	0.66 mm
Chip material:	Silicon
Range of the bar and point structures on the chip (width):	5 - 150 microns (see Table 1, Table 2)
Range of the bar and point structures on the chip (depth):	70 - 150 microns
Resolution:	100 to 3.3 lp/mm (see Table 1)

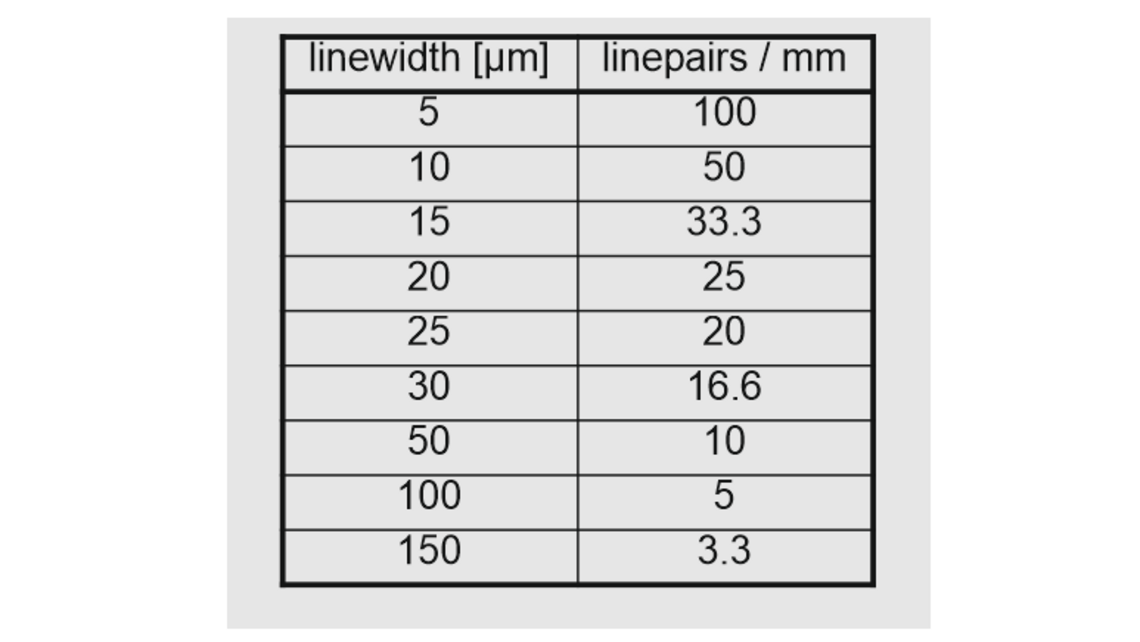

Table 1:
linewidth (microns)	linepairs / mm
5	100
10	50
15	33.3
20	25
25	20
30	16.7
50	10
100	5
150	3.3

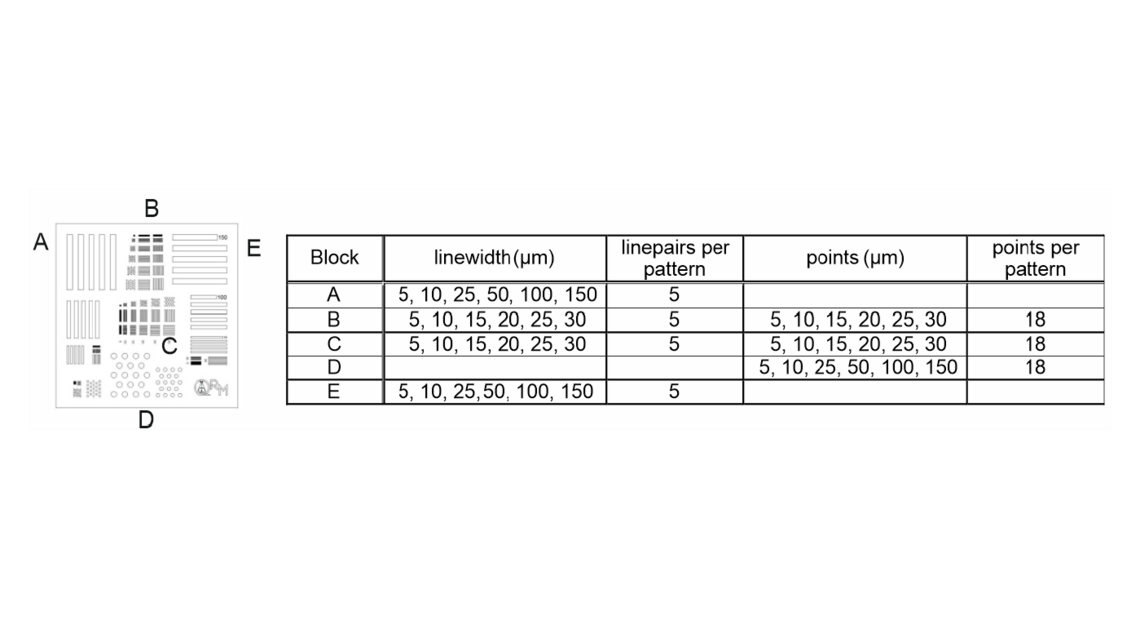

Table 2: number of lines and dots per section
section	line width (µm)	lines per pattern	dots (µm)	dots per pattern
A	5, 10, 25, 50, 100, 150	5	-	-
B	5, 10, 15, 20, 25, 30	5	5, 10, 15, 20, 25, 30	18
C	5, 10, 15, 20, 25, 30	5	5, 10, 15, 20, 25, 30	18
D	-		5, 10, 25, 50, 100, 150	18
E	5, 10, 25, 50, 100, 150	5	-	-

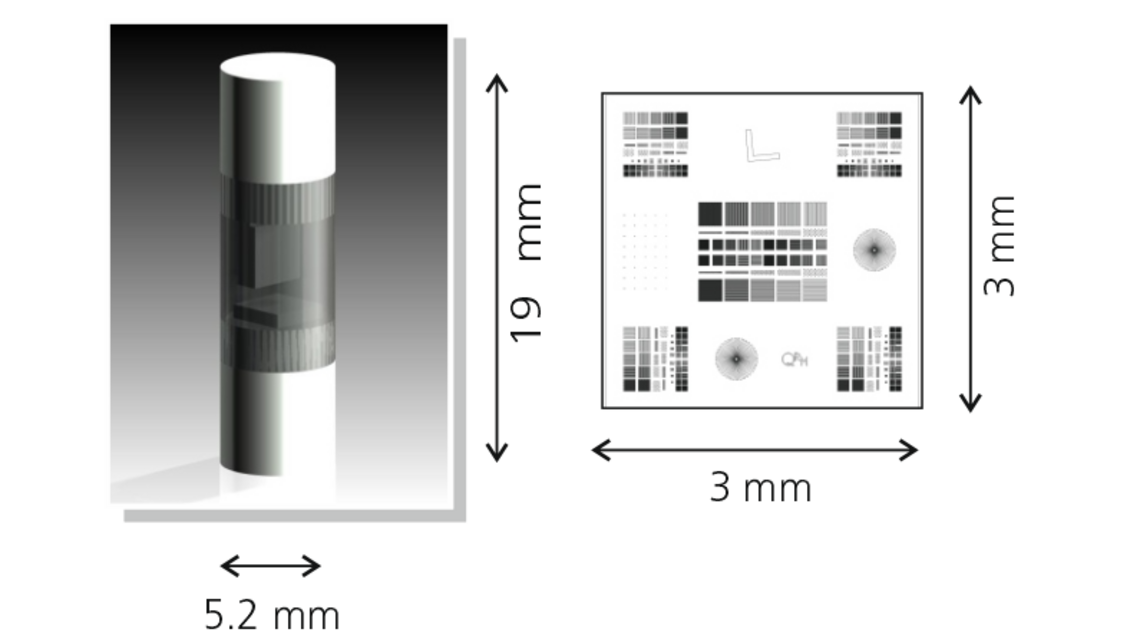

Phantom diameter:	5.4 mm
Phantom height:	19 mm
Phantom wall thickness:	0.2 mm
Phantom material:	air / plastic

Chip dimension:	3 mm x 3 mm
Chip material:	silicon
Chip height:	0.66 mm
Contrast of pattern:	silicon / air
Range of the bar and point structures on the chip (width):	1 - 10 microns (see Tables 1-4)
Range of the bar and point structures on the chip (depth):	5 - 15 microns
Resolution:	500 to 50 lp /mm (see Table 1)

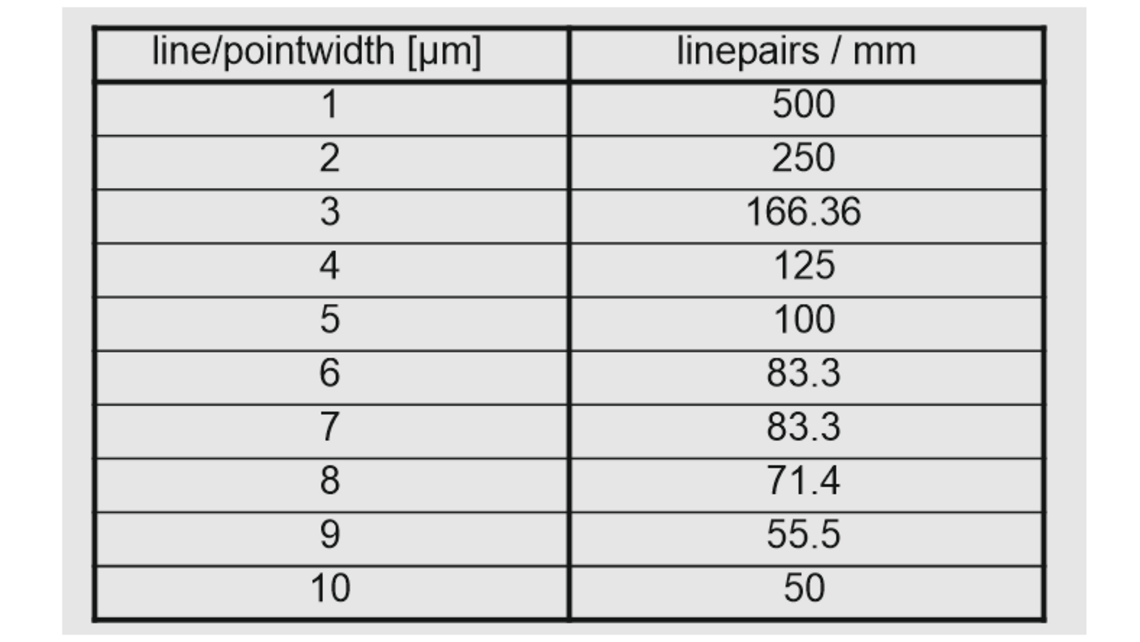

Table 1:
line/widths (microns)	linepairs / mm
1	500
2	250
3	166.4
4	125
5	100
6	83.3
7	83.3
8	71.4
9	55.5
10	50

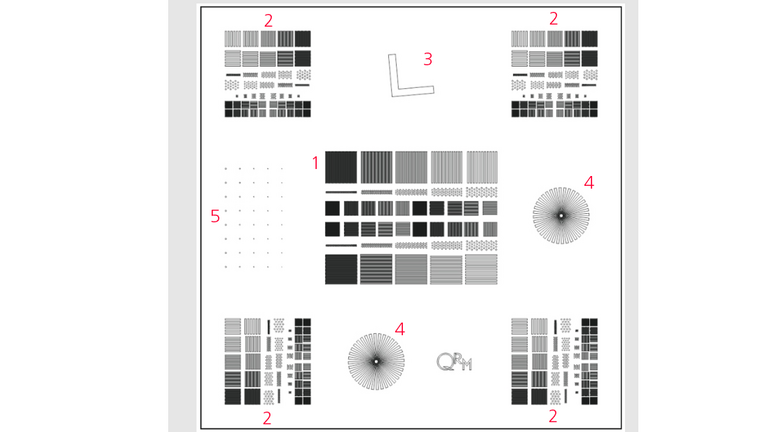

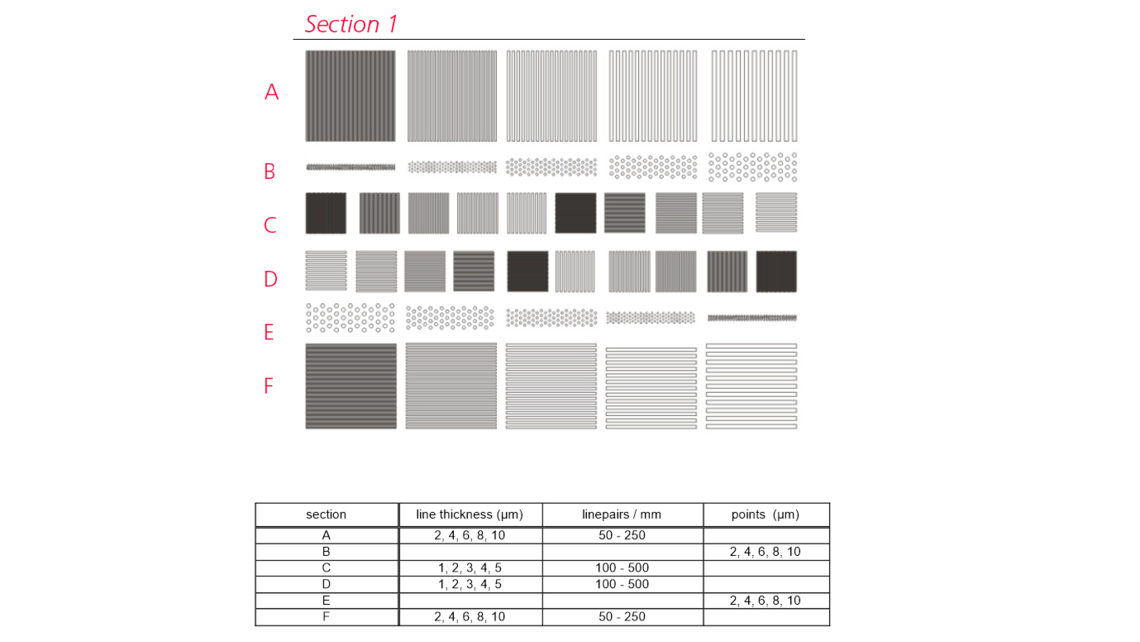

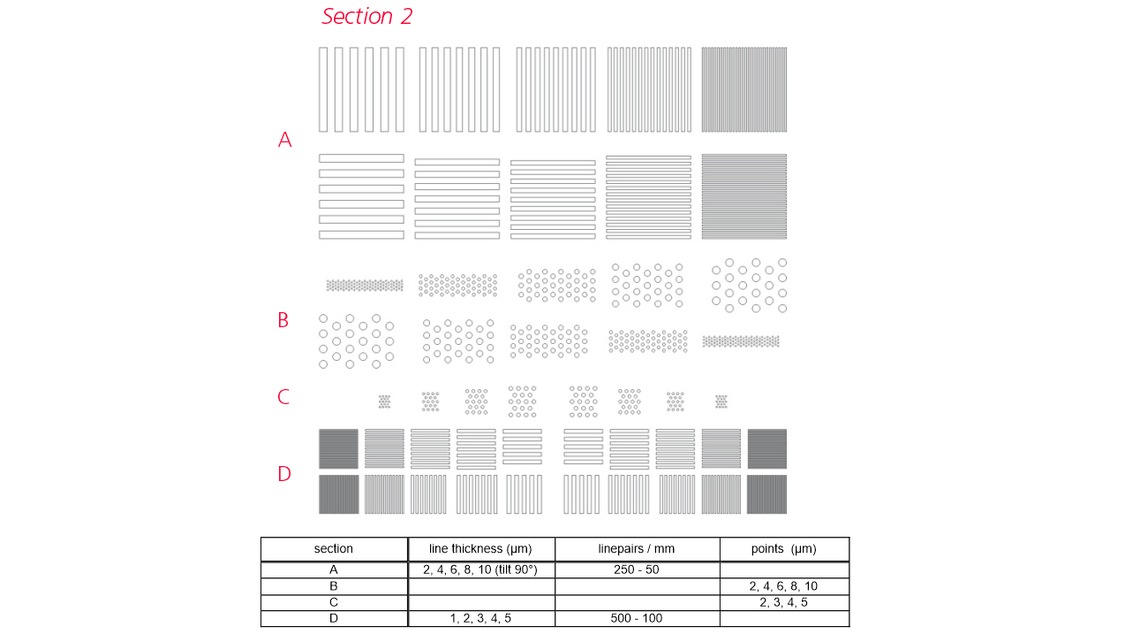

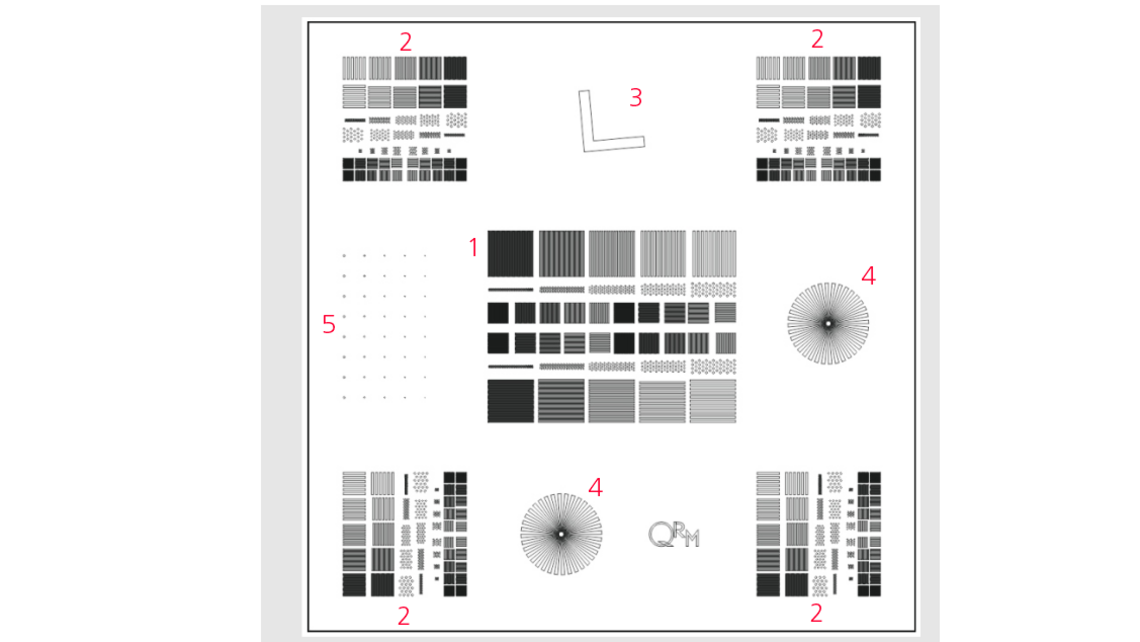

Table 2: Sections and structures on the chip
section	description	pattern / resolution
1	center section providing several bar and point patterns	1 to 10 µm structures
2 a-d	corner sections providing several bar and point pattern in different orientations	1 to 5 µm structures
3	slanted edge section, 15° tilted edge for MTF	-
4	36 actinomorphic star - test pattern	going down from 17.5 µm to 1 µm
5	36 actinomorphic star - test pattern	going down from 17.5 µm to 1 µm
6	point grid point-to-point center distance 100 µm	10 to 2 µm points

Table 3: line and point pattern
row	line thickness (µm)	linepairs / mm	points (µm)
A	2, 4, 6, 8, 10	50 - 250	-
B	-	-	2, 4, 6, 8, 10
C	1, 2, 3, 4, 5	100 - 500	-
D	1, 2, 3, 4, 5	100 - 500	-
E	-	-	2, 4, 6, 8, 10
F	2, 4, 6, 8, 10	50 - 250	-

Table 4: line and point pattern
row	line thickness (µm)	linepairs / mm	points (µm)
A	10, 8, 6, 4, 2	50 - 250	-
B	10, 8, 6, 4, 2 (tilt 90°)	50 - 250	-
C	-	-	2, 4, 6, 8, 10
D	-	-	10, 8, 6, 4, 2
E	-	-	1, 2, 3, 4, 5 - 5, 4, 3, 2, 1
F	1, 2, 3, 4, 5 - 5, 4, 3, 2, 1	500 - 100	-
G	1, 2, 3, 4, 5 - 5, 4, 3, 2, 1 (tilt 90°)	500 - 100	-

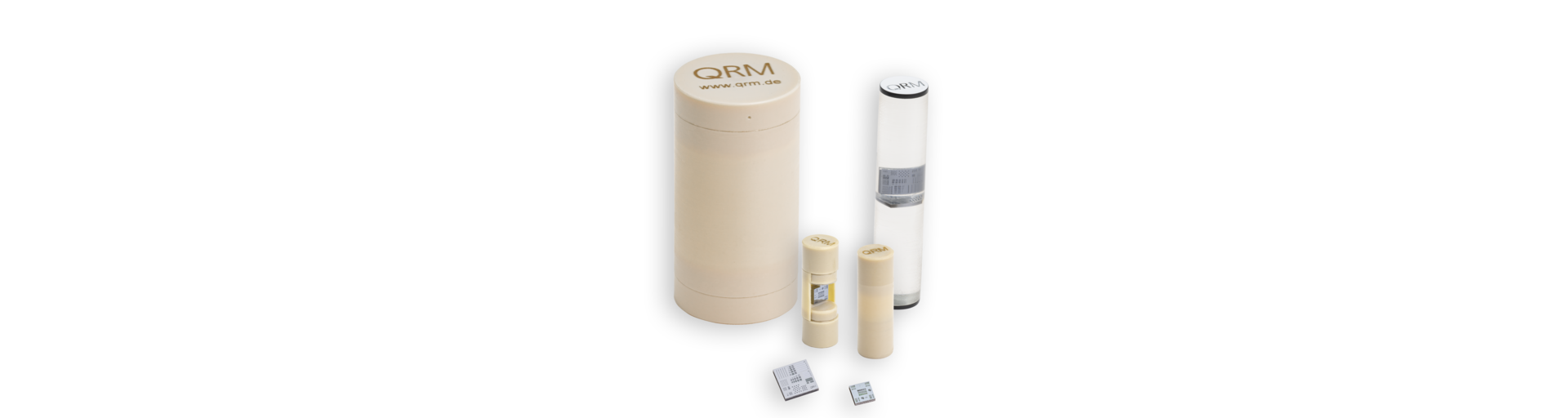

Micro-CT Bar Pattern Air, QRM-70113
Micro-CT Bar Pattern Resin, QRM-70114
Micro-CT Bar Pattern NANO, QRM-70119

Image Gallery

1 / 15

Micro-CT Bar Pattern Air, QRM-70113
Micro-CT Bar Pattern Resin, QRM-70114

2 / 15

Micro-CT Bar Pattern NANO, QRM-70119

3 / 15

3D rendering of Micro-CT Bar Pattern Air, QRM-70113 and Micro-CT Bar Pattern Resin, QRM-70114

4 / 15

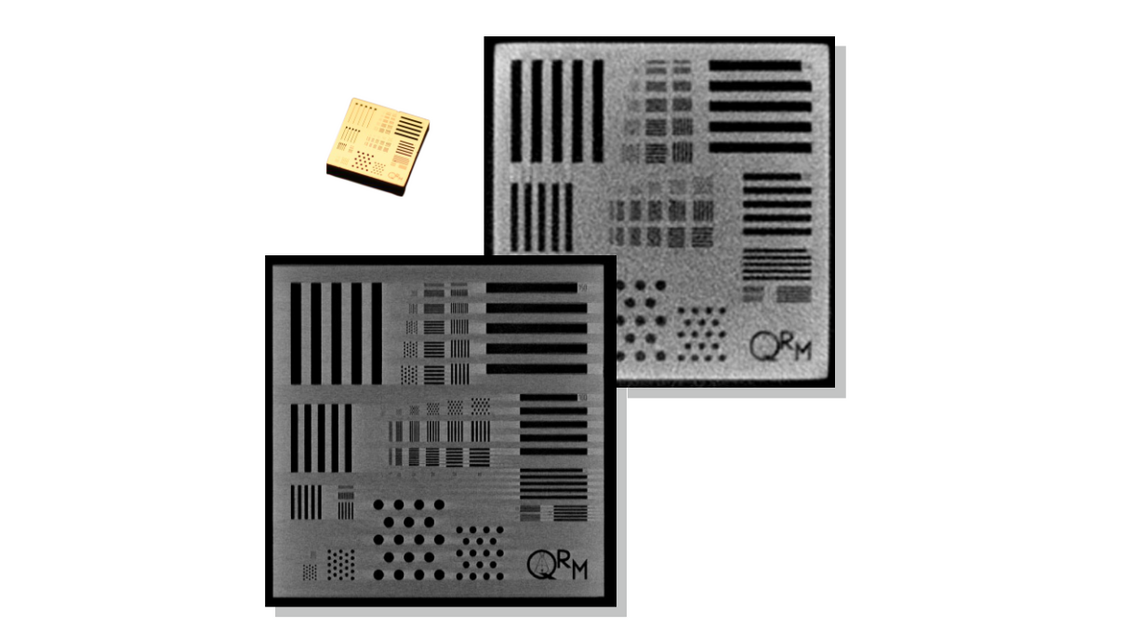

Micro-CT Bar Pattern Air, QRM-70113 : Micro-CT scans in air (left) with 5.5 μm voxel size
