Micro-CT Low Contrast Phantoms

For the evaluation of contrast detectability of micro-CT systems

Evaluate low contrast detectability of micro-CT systems
Two different phantoms available (see Specifications)

QRM-70108 Micro-CT Low Contrast Phantom, V1

QRM-70124 Micro-CT Low Contrast Phantom, V2

Customizable

The Phantoms contain cylindrical inserts with well-defined contrast levels for the evaluation of the low-contrast resolution of micro-CT scanners. The contrast levels in Hounsfield Units are -40 HU and -80 HU for QRM-70108 (V1) and -30 HU, -60 HU and -90 HU for QRM-70124 (V2).

Actual values vary slightly depending on scanner geometry, calibration and tube voltage.

Different dimensions and inserts can be produced upon request.

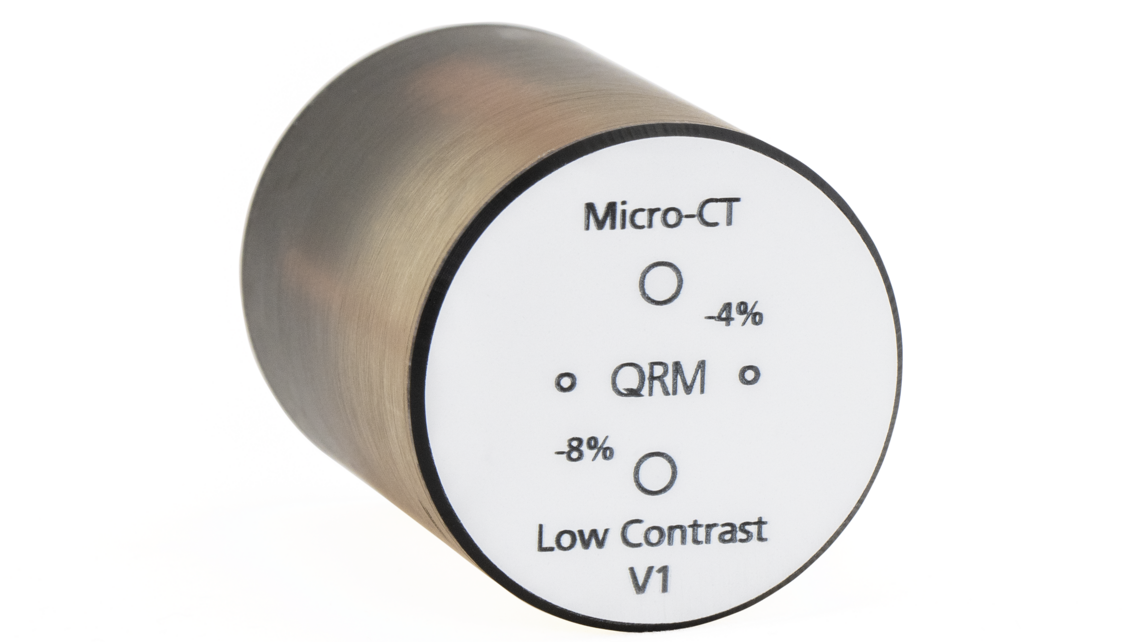

Micro-CT Low Contrast Phantom, V1, QRM-70108

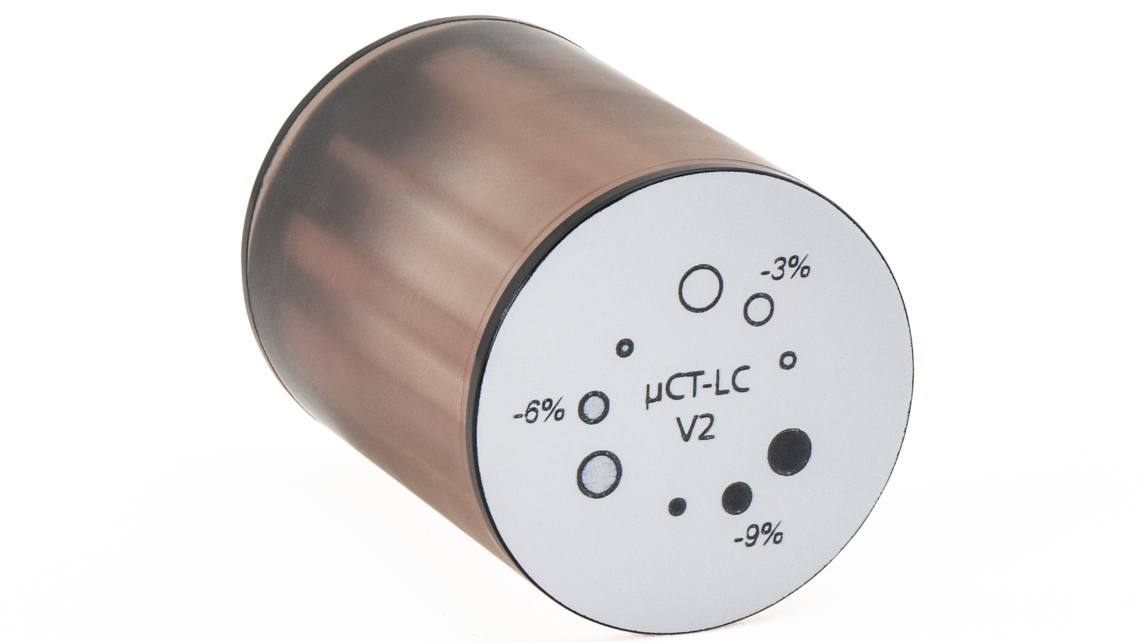

Micro-CT Low Contrast Phantom, V2, QRM-70124

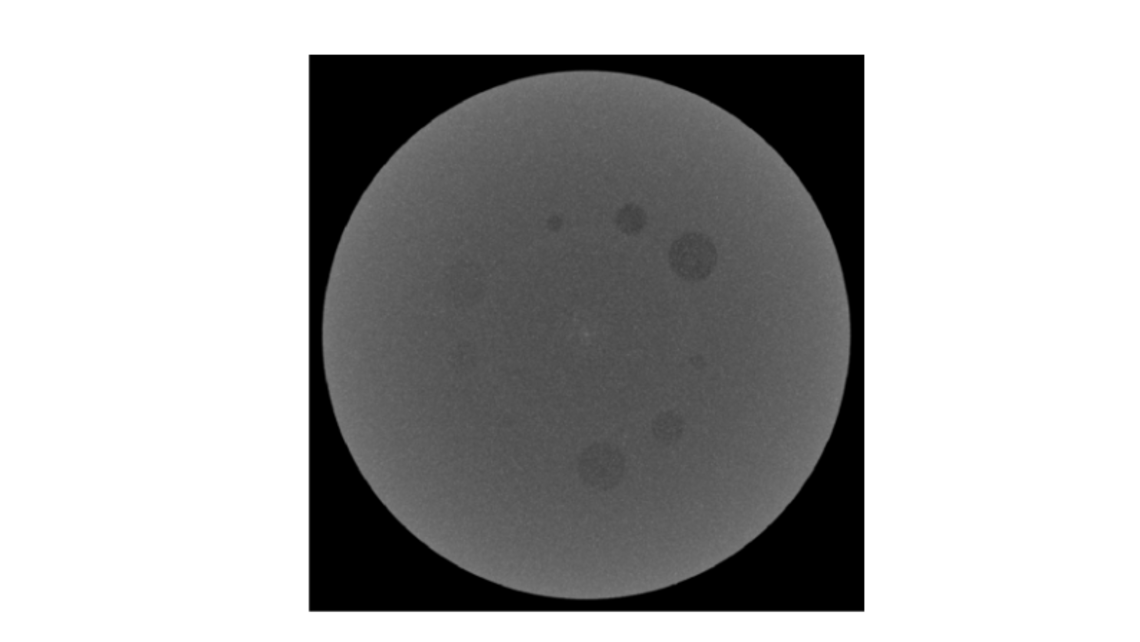

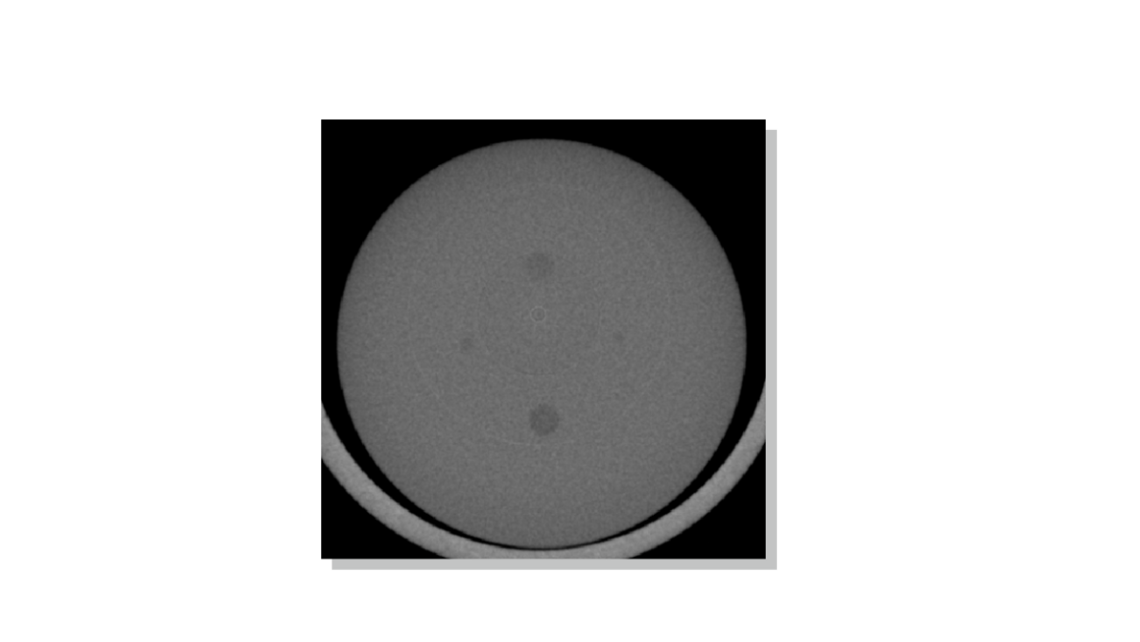

Micro-CT Low Contrast Phantoms Interactive

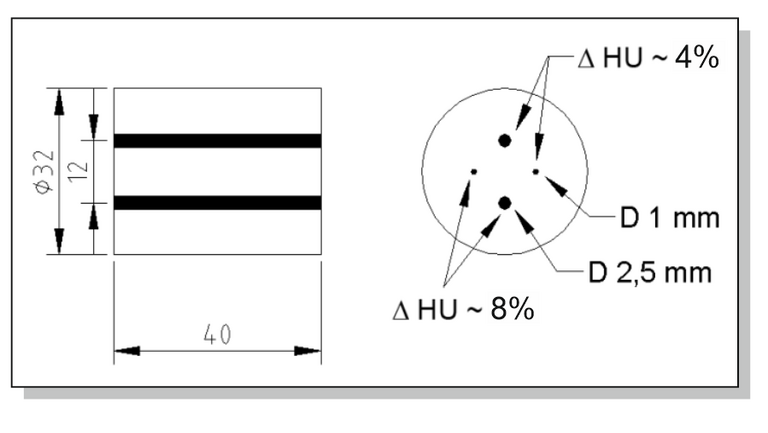

Micro-CT Low Contrast Phantom, V1, QRM-70108

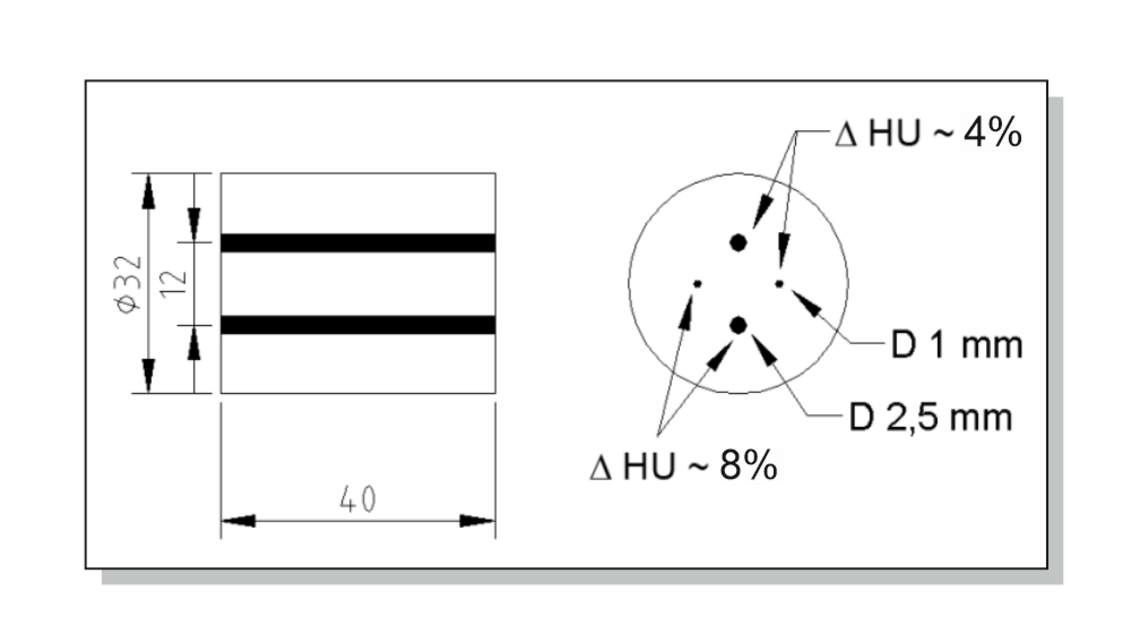

Micro-CT Low Contrast Phantom, V1, QRM-70108

The main body of the Micro-CT Low Contrast Phantoms is a proprietary epoxy (soft tissue equivalent resin). The inserts are the same base material but with reduced density.

The Micro-CT Low Contrast Phantom, V1, QRM-70108 offers two different contrast levels - 4 % / - 8 % with two different diameters (1 mm / 2.5 mm).

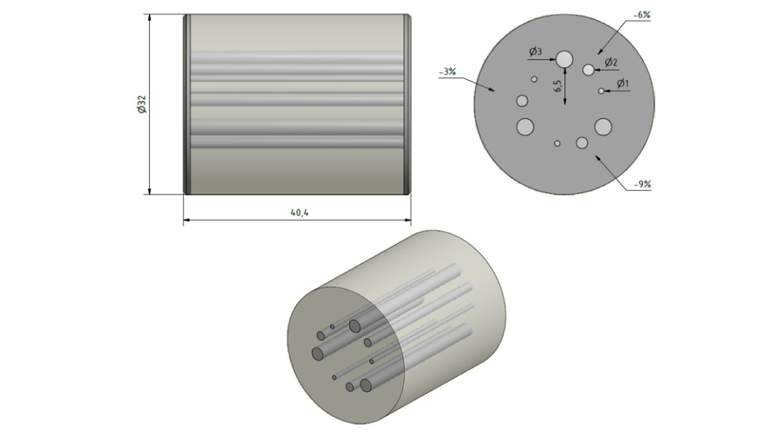

Micro-CT Low Contrast Phantom, V2, QRM-70124

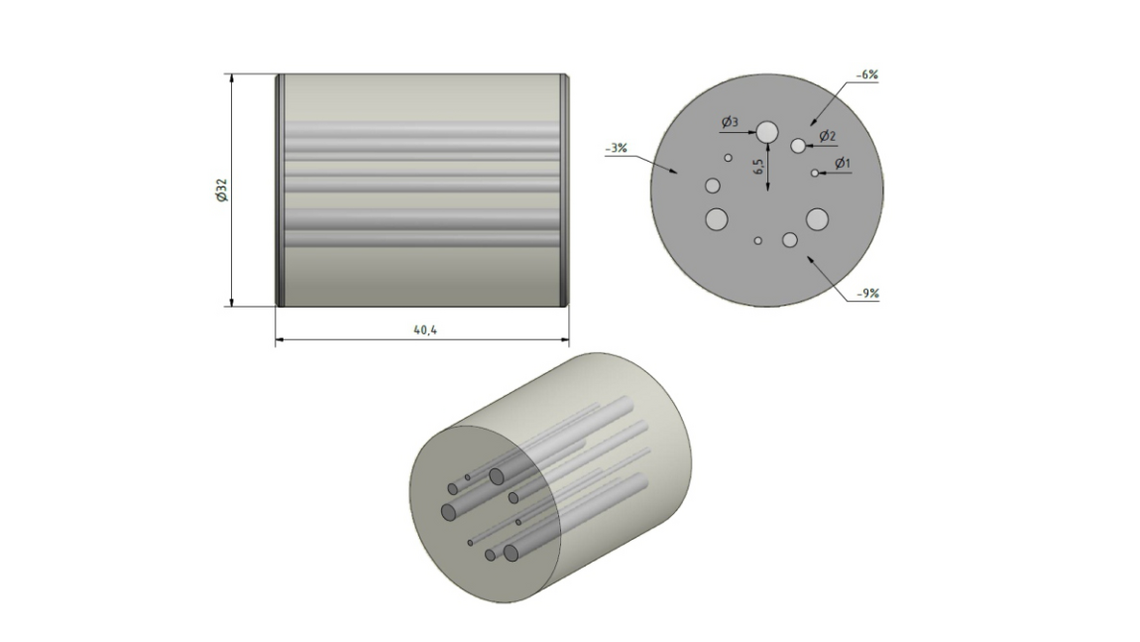

Micro-CT Low Contrast Phantom, V2, QRM-70124

The main body of the Micro-CT Low Contrast Phantoms is a proprietary epoxy (soft tissue equivalent resin). The inserts are the same base material but with reduced density.

The Micro-CT Low Contrast Phantom, V2, QRM-70124 offers 3 different contrast levels (- 3 % / -6 % / -9 %) with 3 different diameters (1 mm / 2 mm / 3 mm).

Technical Specifications

Phantom diameter:	32 mm
Phantom height:	app. 41 mm
Phantom weight:	35 g
Body material:	soft tissue equivalent resin

Low contrast inserts:
Inserts diameter:	1 mm / 2.5 mm
Contrast levels:	app. - 4 % / - 8 %
Other sizes and contrast levels can be produced upon request.

Phantom diameter:	32 mm
Phantom height:	app. 41 mm
Phantom weight:	35 g
Body material:	soft tissue equivalent resin

Low contrast inserts:
Inserts diameter:	1 mm / 2 mm / 3 mm
Contrast levels:	app. - 3 % / -6 % / -9 %
Other sizes and contrast levels can be produced upon request.
