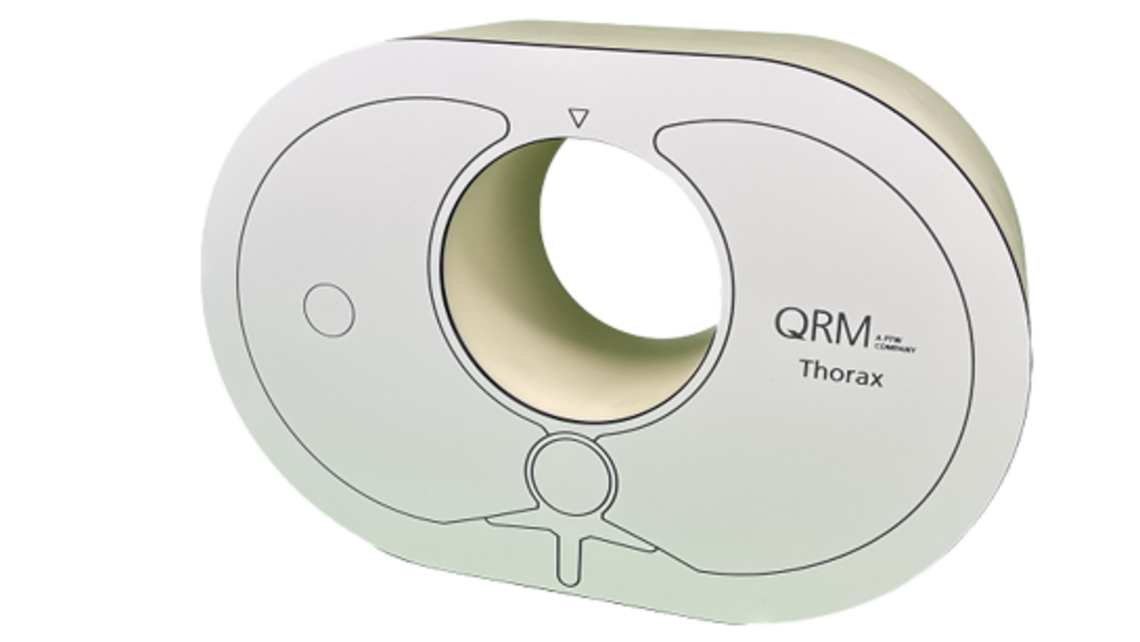

Thorax Phantom

For mimicking tissues with respect to density & X-ray attenuation characteristics of a thorax

D100 compatible
Includes spine and lung lobes
Customizable

The Thorax Phantom is used as (semi-)anthropomorphic surrounding for multiple image quality inserts. It comprises artificial lung lobes, a spine insert, and a shell of soft tissue-equivalent material.

The plastics used mimic human tissues with respect to density and X-ray attenuation characteristics of a human thorax.

There are multiple standard cylinders (D100) for image quality purposes available (see options section).

Thorax Phantom, QRM-20100

The Thorax Phantom is also available with drilled holes according to CTDI-specifications:

QRM-40104: Thorax Dosimetry Phantom

There are multiple standard cylinders for image quality purposes available. The following D100 Insert are available:

QRM-10112: 2D Low-Contrast Phantom
QRM-10100: 2D Medium Contrast Phantom
QRM-10109: 3D Low-Contrast Phantom (-10 HU)
QRM-10110: 3D Low Contrast Phantom (-20 HU)
QRM-10101: 3D Spatial Resolution Phantom, D100
QRM-10140: High Contrast Resolution Phantom, D100
QRM-10105: Wire Phantom, D100
QRM-10113: Water Tank Phantom
QRM-10107: Dual Energy Phantom, V2
QRM-10123: Dual Energy Phantom, V5
QRM-10139: Spectral CT Phantom
QRM-10147: Spectral CT Phantom II
QRM-10146: Calcium Scoring Phantom, D100
QRM-40106: Dose Insert D100
QRM-90110: Electron Density Phantom, D100

Further, there are extension rings available to mimic obese patients:

QRM-20104: Extension Ring Soft Tissue, M
QRM-20105: Extension Ring Soft Tissue, L
QRM-20106: Extension Ring Soft Tissue, XL
QRM-20107: Extension Ring Fat, M
QRM-20108: Extension Ring Fat, L
QRM-20109: Extension Ring Fat, XL

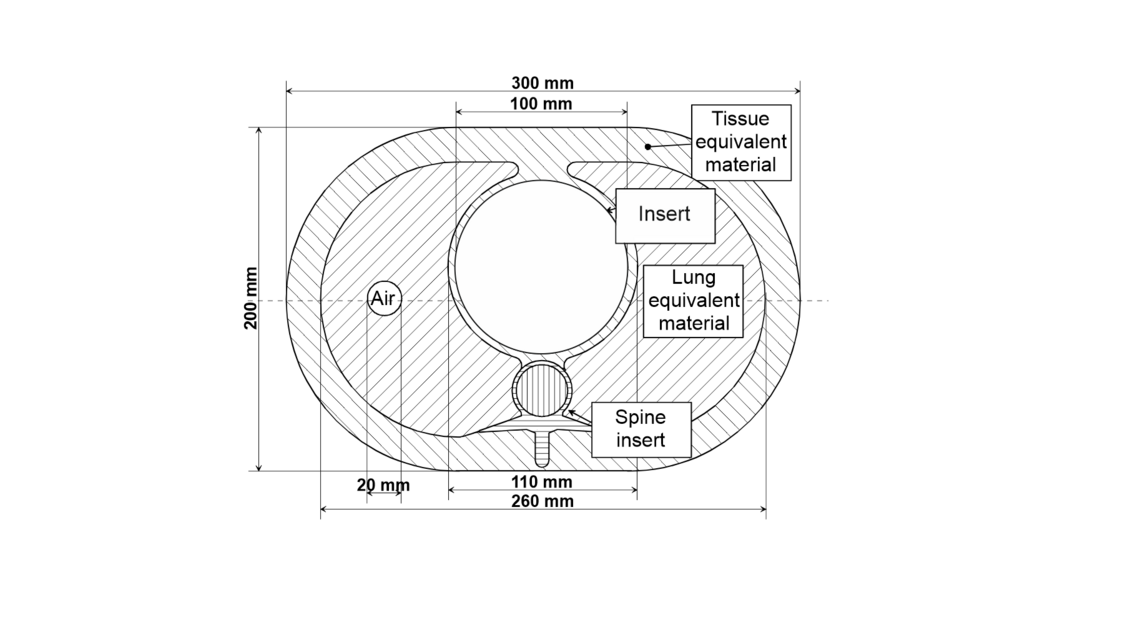

Technical Specifications

Phantom dimension:	200 mm x 300 mm
Phantom height:	103 mm
Phantom weight:	2.7 Kg
Diameter of borehole:	100 mm

Body material:	Soft tissue-equivalent (app. 30 HU at 80-140 kV)
Lung:	app. -800 HU (at 120 kV)
Spine:	corticalis / spongiosa (bone-like, app. 550 HU / 200 HU at 120 kV)
