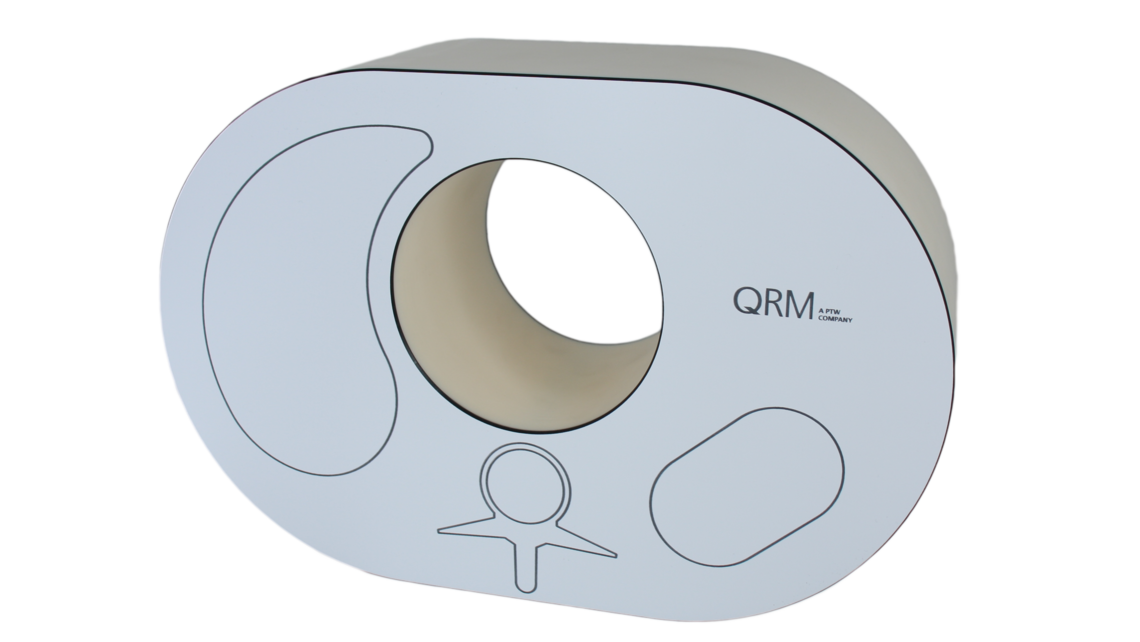

Abdomen Phantom

• D100 compatible
• Includes organs (liver, spleen)

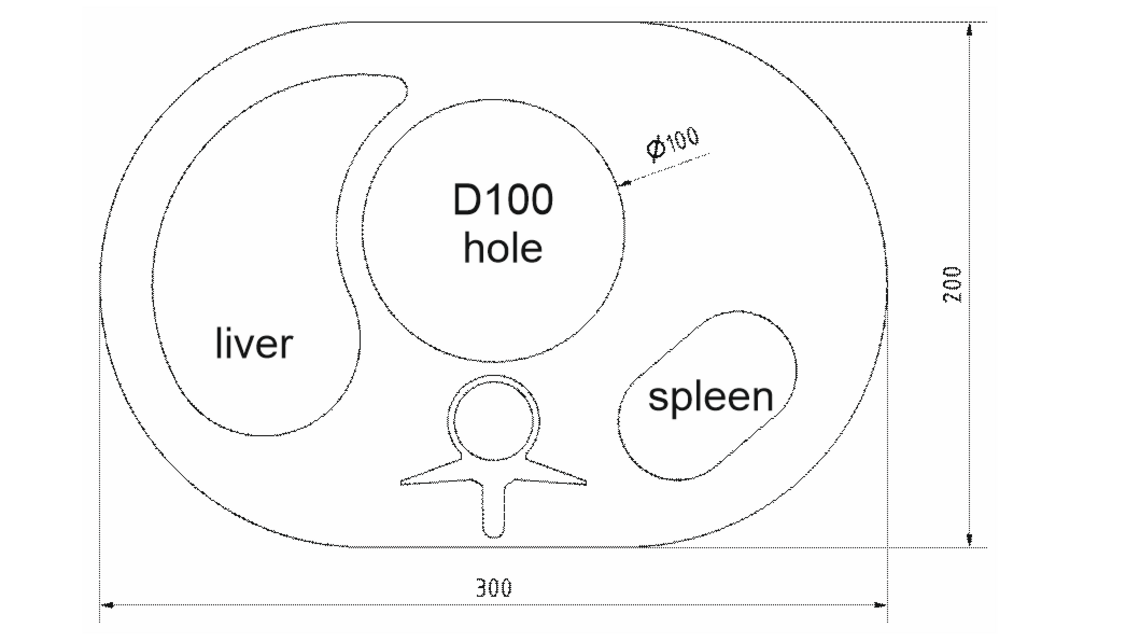

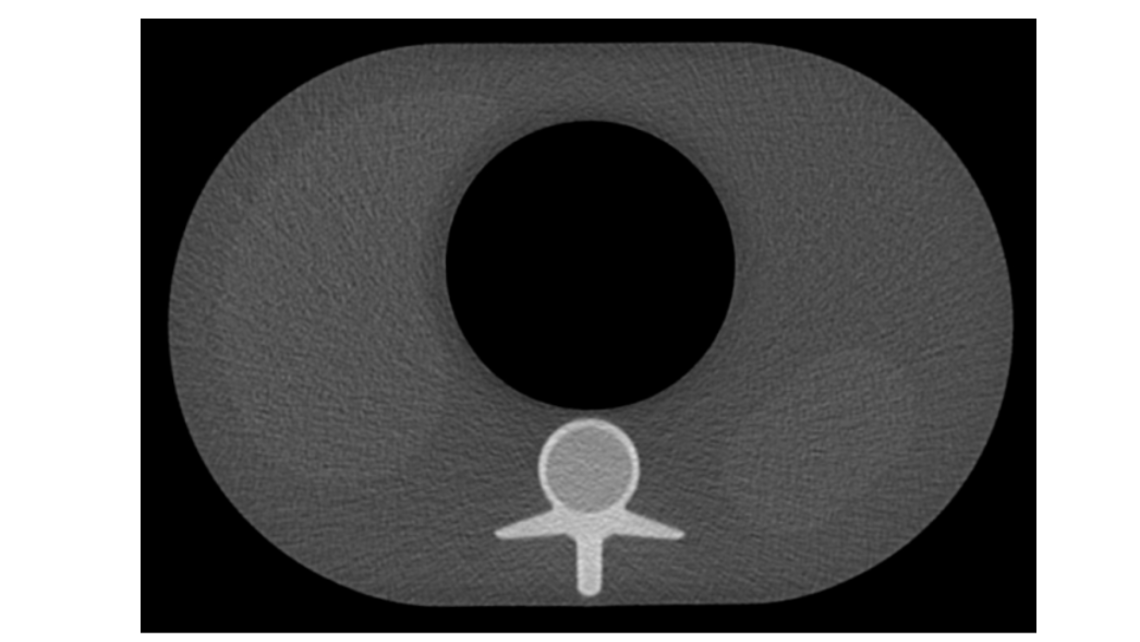

The phantom serves as (semi-)anthropomorphic surrounding for our multiple D100 imaging inserts. It comprises a bone-like spine insert (spongiosa and corticalis) and fixed liver and spleen inserts providing the appropriate CT values of real tissues. All organs are embedded in soft tissue-equivalent material. The plastics of this phantom mimic human tissues with respect to density and X-ray attenuation characteristics of a human abdomen.

There are multiple standard cylinders (D100) for image quality purposes available (see options section).

Customizable: The phantom can be manufactured with exchangeable/removable liver and spleen inserts.

Abdomen Phantom, QRM-20118

The Abdomen Phantom is also available with drilled holes according to CTDI-specifications:

• QRM-40105: Abdomen Dosimetry Phantom

There are multiple standard cylinders for image quality purposes available. The following D100 Insert are available:

• QRM-10112: 2D Low-Contrast Phantom
• QRM-10100: 2D Medium Contrast Phantom
• QRM-10109: 3D Low-Contrast Phantom (-10 HU)
• QRM-10110: 3D Low Contrast Phantom (-20 HU)
• QRM-10101: 3D Spatial Resolution Phantom, D100
• QRM-10140: High Contrast Resolution Phantom, D100
• QRM-10105: Wire Phantom, D100
• QRM-10113: Water Tank Phantom
• QRM-10107: Dual Energy Phantom, V2
• QRM-10123: Dual Energy Phantom, V5
• QRM-10139: Spectral CT Phantom
• QRM-10147: Spectral CT Phantom II
• QRM-10146: Calcium Scoring Phantom, D100
• QRM-40106: Dose Insert D100
• QRM-90110: Electron Density Phantom, D100

Further, there are extension rings available to mimic obese patients:

• QRM-20104: Extension Ring Soft Tissue, M
• QRM-20105: Extension Ring Soft Tissue, L
• QRM-20106: Extension Ring Soft Tissue, XL
• QRM-20107: Extension Ring Fat, M
• QRM-20108: Extension Ring Fat, L
• QRM-20109: Extension Ring Fat, XL
