Bone Density Calibration Phantoms

For HU vs. HA calibrations with respect to Bone Mineral Densitometry evaluation of bones

Measure bone mineral density (BMD) with quantitative CT
Perform HU vs. CaHA
For different regions such as shoulder, spine, hip, femur
Place directly under test object with easy-to-use design
Three or six inserts with various CaHA densities in tissue-equivalent housing
Various models with 3 or 6 inserts and several lengths (up to 700 mm) available:

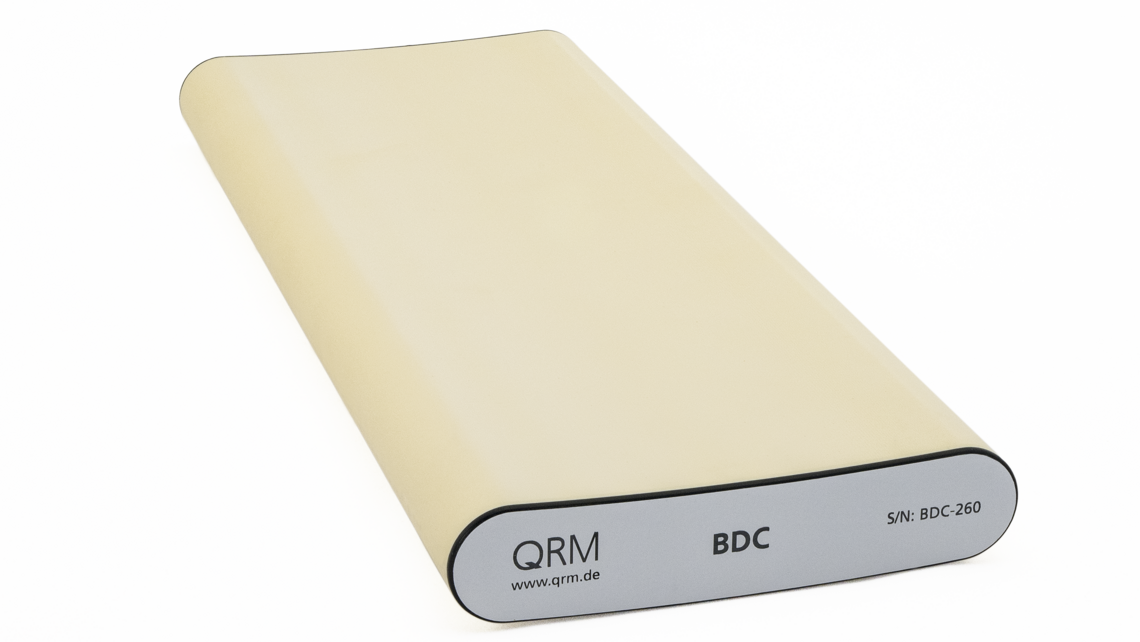

BDC with 3 inserts: 0, 100, 200 mg CaHA/cm³

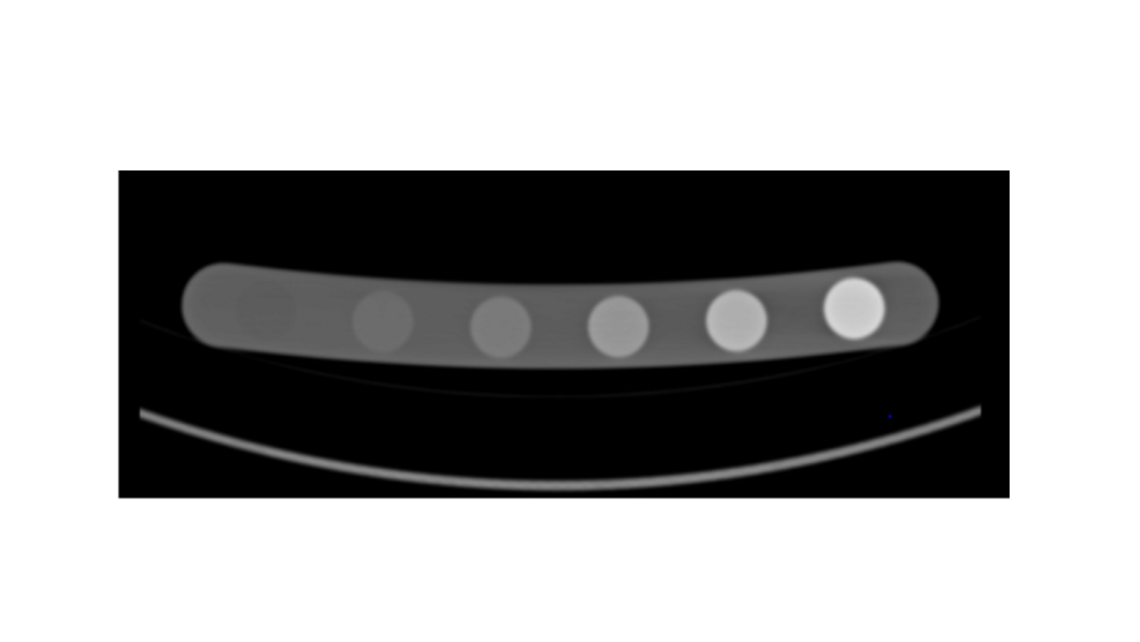

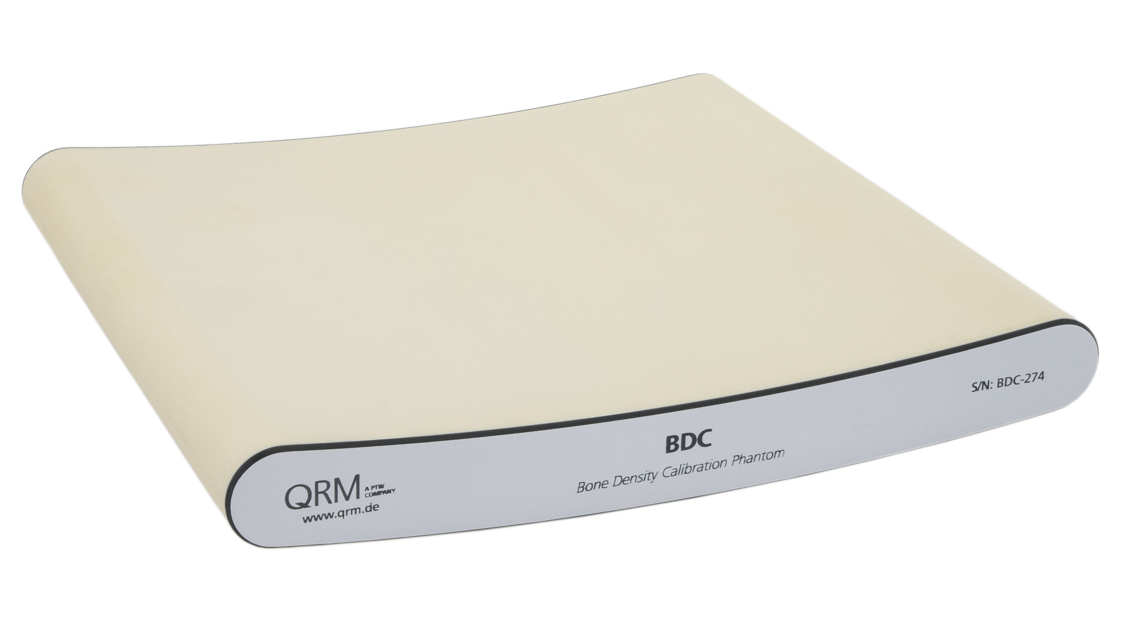

BDC with 6 inserts: 0, 100, 200, 400, 600, 800 mg CaHA/cm³

The Bone Density Calibration Phantom is a convenient tool to calibrate HU vs. CaHA with respect to bone mineral densitometry (BMD) evaluation.

The flat design of the phantoms allows to place the phantom directly under an object to evaluate the Bone Mineral Density (BMD) by CT.

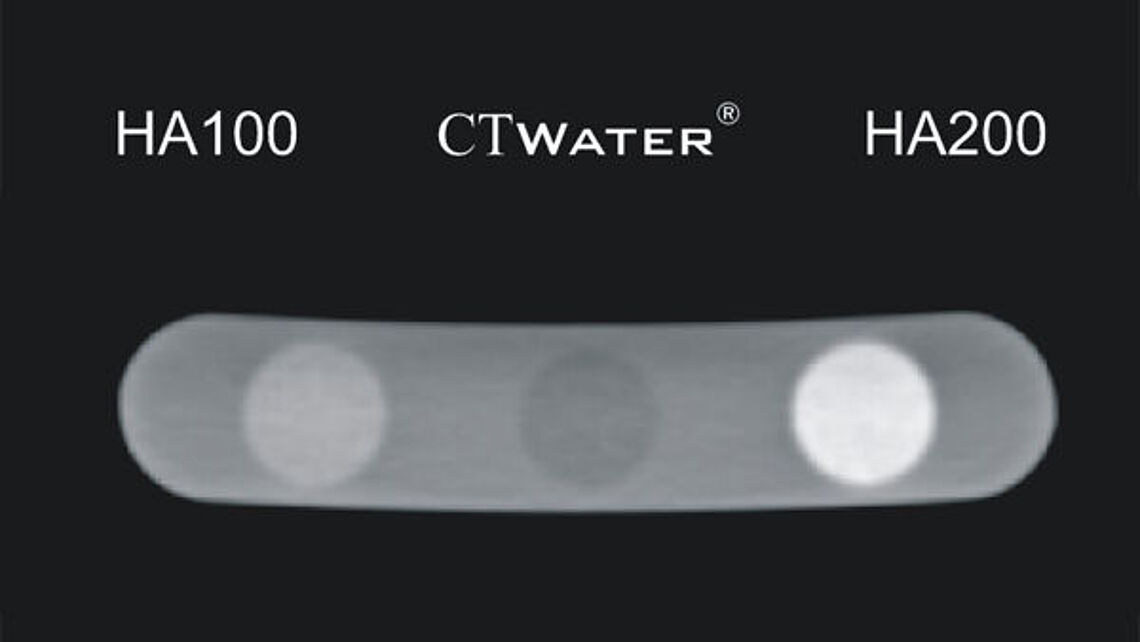

The inserts are made of a solid water-equivalent plastic (CTwater) enriched with CaHA of appropriate grain size and embedded in a proprietary soft tissue-equivalent material.

Other phantom lengths and CaHA concentrations are available upon request.

Bone Density Calibration Phantom, 3 H200, QRM-50115

Bone Density Calibration Phantom, 3 H300, QRM-50118

Bone Density Calibration Phantom, 3 H400, QRM-50120

Bone Density Calibration Phantom, 3 H500, QRM-50116

Bone Density Calibration Phantom, 3 H600, QRM-50117

Bone Density Calibration Phantom, 3 H700, QRM-50119

Bone Density Calibration Phantom, 6 H200, QRM-50124

Bone Density Calibration Phantom, 6 H300, QRM-50125

Bone Density Calibration Phantom, 6 H400, QRM-50129

Bone Density Calibration Phantom, 6 H500, QRM-50126

Bone Density Calibration Phantom, 6 H600, QRM-50127

Bone Density Calibration Phantom, 6 H700, QRM-50128

The BDC Phantoms with three inserts are ideally to be used in combination with the HIP-QC120 phantom (QRM-50131) or the Spine-QC120 phantom (QRM-50121).

Technical Specifications

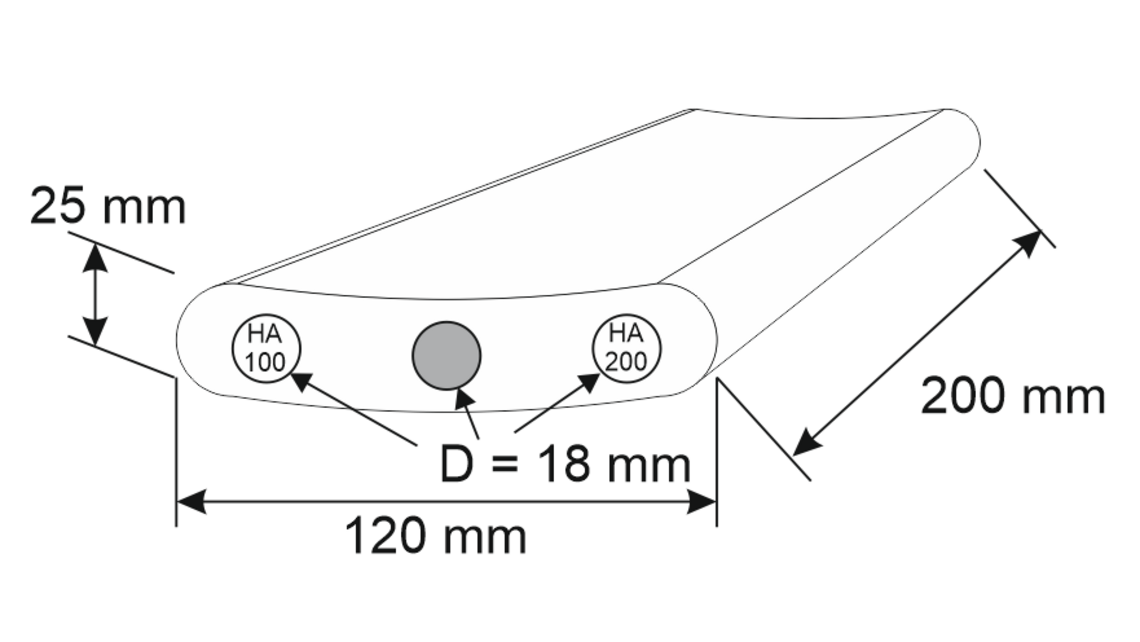

Phantom dimension (slightly bent):	120 mm x 25 mm
Body material:	soft tissue-equivalent (at 120 kV)
Phantom accuracy:
All CaHA materials are within ±5% of specified values.
Accuracy of calibrated vBMD: ± 2 mg/cm³.

Inserts

Model	Insert 1: HA specified	Insert 2: HA specified	Insert 3: HA specified	Height (mm)	Insert Diameter (mm)
QRM-50115	100 mg CaHA/cm³	0 mg CaHA/cm³	200 mg CaHA/cm³	200	Ø 18 mm
QRM-50118	100 mg CaHA/cm³	0 mg CaHA/cm³	200 mg CaHA/cm³	300	Ø 18 mm
QRM-50120	100 mg CaHA/cm³	0 mg CaHA/cm³	200 mg CaHA/cm³	400	Ø 18 mm
QRM-50116	100 mg CaHA/cm³	0 mg CaHA/cm³	200 mg CaHA/cm³	500	Ø 18 mm
QRM-50117	100 mg CaHA/cm³	0 mg CaHA/cm³	200 mg CaHA/cm³	600	Ø 18 mm
QRM-50119	100 mg CaHA/cm³	0 mg CaHA/cm³	200 mg CaHA/cm³	700	Ø 18 mm

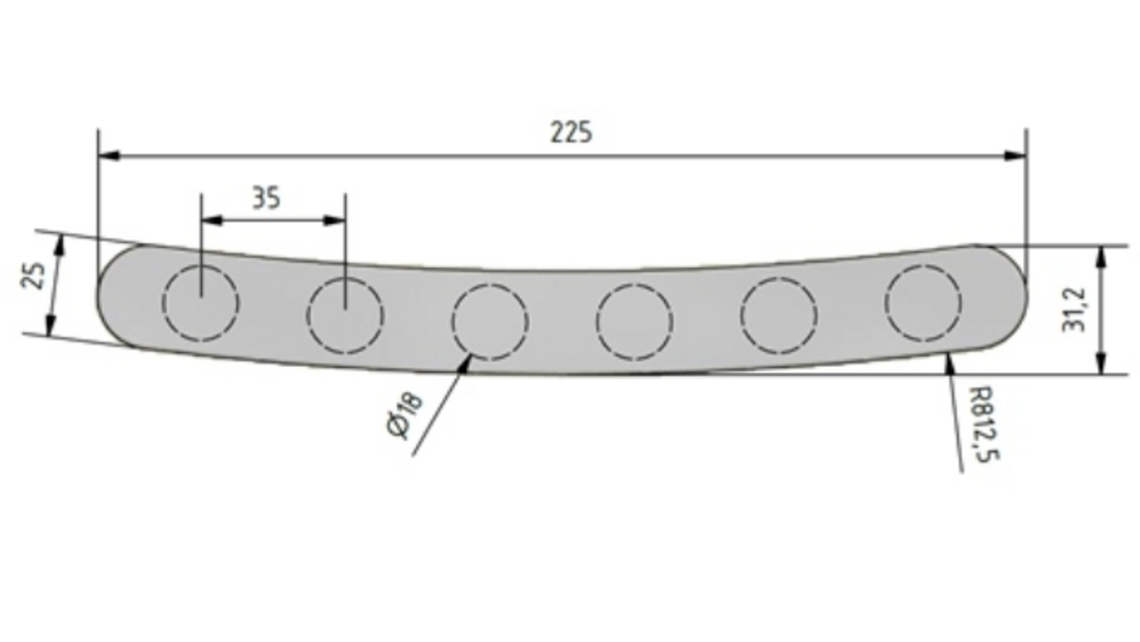

Phantom dimension (slightly bent):	225 mm x 25 mm
Body material:	soft tissue-equivalent (at 120 kV)
Phantom accuracy:
All CaHA materials are within ±5% of specified values.
Accuracy of calibrated vBMD: ± 2 mg/cm³.

Inserts

Model	Insert 1: HA specified	Insert 2: HA specified	Insert 3: HA specified	Insert 4: HA specified	Insert 5: HA specified	Insert 6: HA specified	Height (mm)	Insert Diameter (mm)
QRM-50124	0 mg CaHA/cm³	100 CaHA/cm³	200 CaHA/cm³	400 CaHA/cm³	600 CaHA/cm³	800 CaHA/cm³	200	Ø 18 mm
QRM-50125	0 mg CaHA/cm³	100 CaHA/cm³	200 CaHA/cm³	400 CaHA/cm³	600 CaHA/cm³	800 CaHA/cm³	300	Ø 18 mm
QRM-50129	0 mg CaHA/cm³	100 CaHA/cm³	200 CaHA/cm³	400 CaHA/cm³	600 CaHA/cm³	800 CaHA/cm³	400	Ø 18 mm
QRM-50126	0 mg CaHA/cm³	100 CaHA/cm³	200 CaHA/cm³	400 CaHA/cm³	600 CaHA/cm³	800 CaHA/cm³	500	Ø 18 mm
QRM-50127	0 mg CaHA/cm³	100 CaHA/cm³	200 CaHA/cm³	400 CaHA/cm³	600 CaHA/cm³	800 CaHA/cm³	600	Ø 18 mm
QRM-50128	0 mg CaHA/cm³	100 CaHA/cm³	200 CaHA/cm³	400 CaHA/cm³	600 CaHA/cm³	800 CaHA/cm³	700	Ø 18 mm
