CTDI CTwater Phantom

Water-equivalent dosimetry phantoms for CTDI evaluation in Computed Tomography (CT/CBCT)

For CTDI measurements in accordance with IEC / DIN EN 61223-3-5 and IEC 60601-2-44
Different adapter plugs available for diverse pencil shaped ion chambers

Water-equivalent dosimetry phantoms, traced back on the standards for CTDI evaluation in Computed Tomography (CT/CBCT).

The phantom is manufactured from CTwater, a proprietary resin which exhibits the same X-ray attenuation characteristics as liquid water in the range of 80 kV to 140 kV tube voltage.

The phantom includes a circular body (with four peripheral holes) and a removable head section (with one central and four peripheral holes). Holes not in use for dose measurement can be plugged by using water-equivalent rods.

Adapter plugs for all standard ionization chambers are available on request.

CTDI CTwater Phantom, QRM-40100

PTW Products Suitable for Use

L981629 UNIDOS Tango, connecting system M

L981630 UNIDOS Tango, connecting system BNT

L981631 UNIDOS Tango, connecting system TNC

L981629 UNIDOS Romeo, connecting system M

L981629 UNIDOS Romeo, connecting system BNT

L981629 UNIDOS Romeo, connecting system TNC

30009 CT ion chamber 3.14 cm³, 100 mm long (PTW)

Technical Specifications

Phantom diameter (body):	Ø 320 mm
Phantom diameter (head):	Ø 160 mm
Phantom height:	150 mm
Borehole diameter:	Ø 13 mm
Center position of peripheral holes:	10 mm from phantom`s margin
Body material:	CTwater

Image Gallery

1 / 3

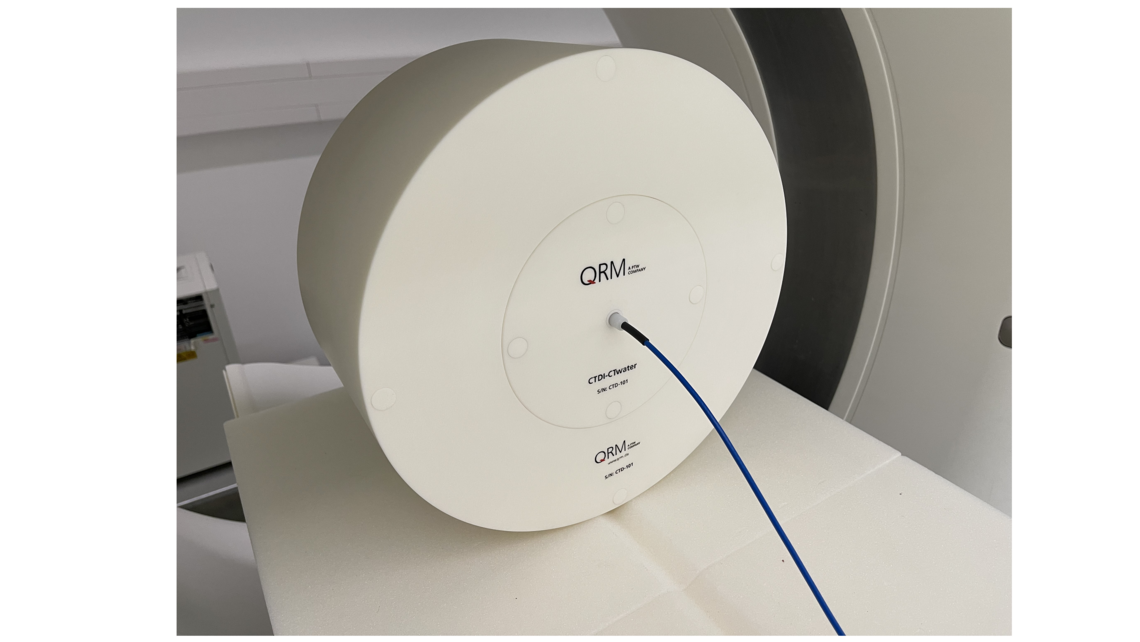

CTDI CTwater Phantom, QRM-40100

2 / 3

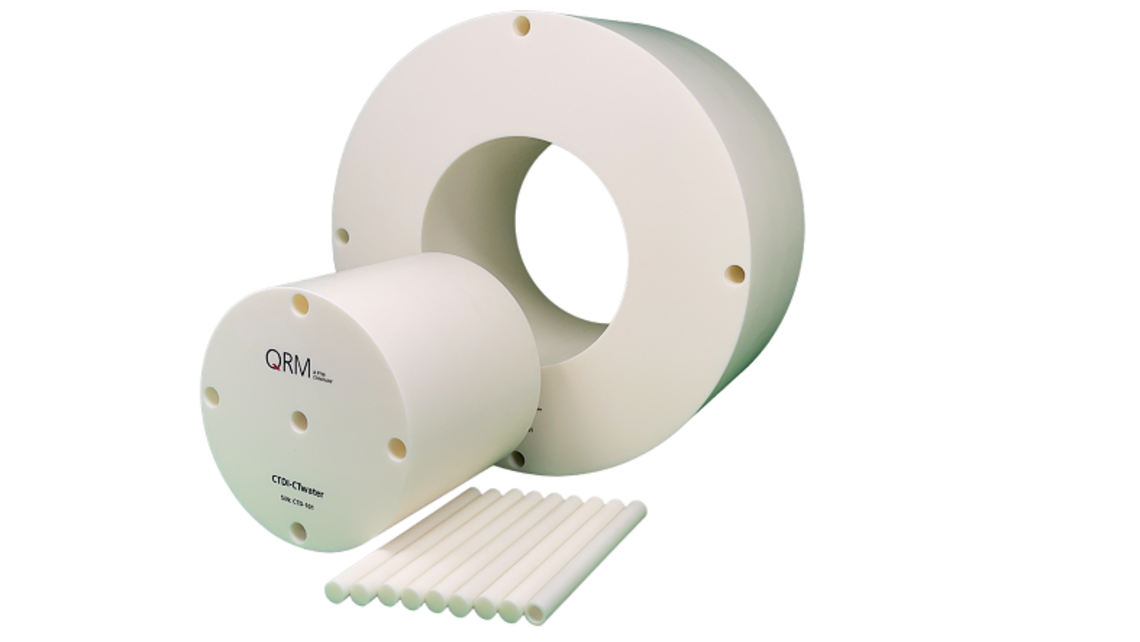

CTDI CTwater Phantom, QRM-40100

3 / 3

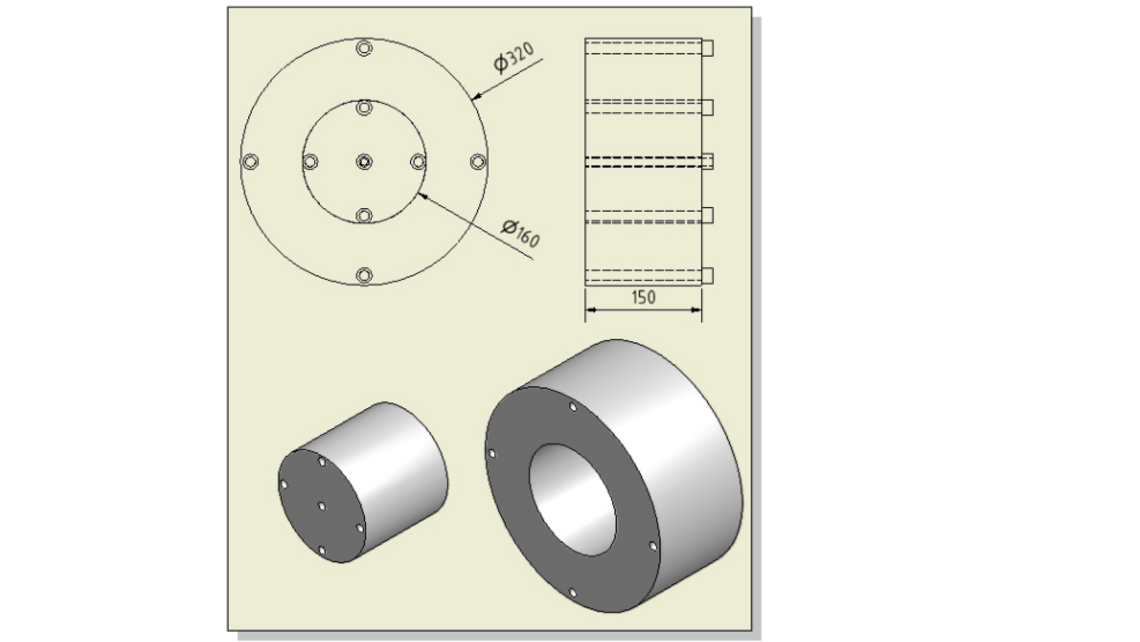

Schematic view of the CTDI CTwater Phantom, QRM-40100
