DXA Spine QA Phantom, 3HA

For quality assurance measurements in DXA Bone Mineral Density of the spine

  • Quality assurance of DXA measurements of the spine
  • Cost-effective design
  • 3 vertebrea with different CaHA densities



Based on the well-established European Spine Phantom, the DXA Spine QA Phantom features a simplified and cost-effective design of the vertebrae. It has been specifically developed for quality control (e.g. constancy and acceptance tests) and stability measurements of dual X-ray absorptiometry (DXA) devices.

The DXA Spine QA Phantom provides easy determination of areal Bone Mineral Density (aBMD) in AP and lateral projections.

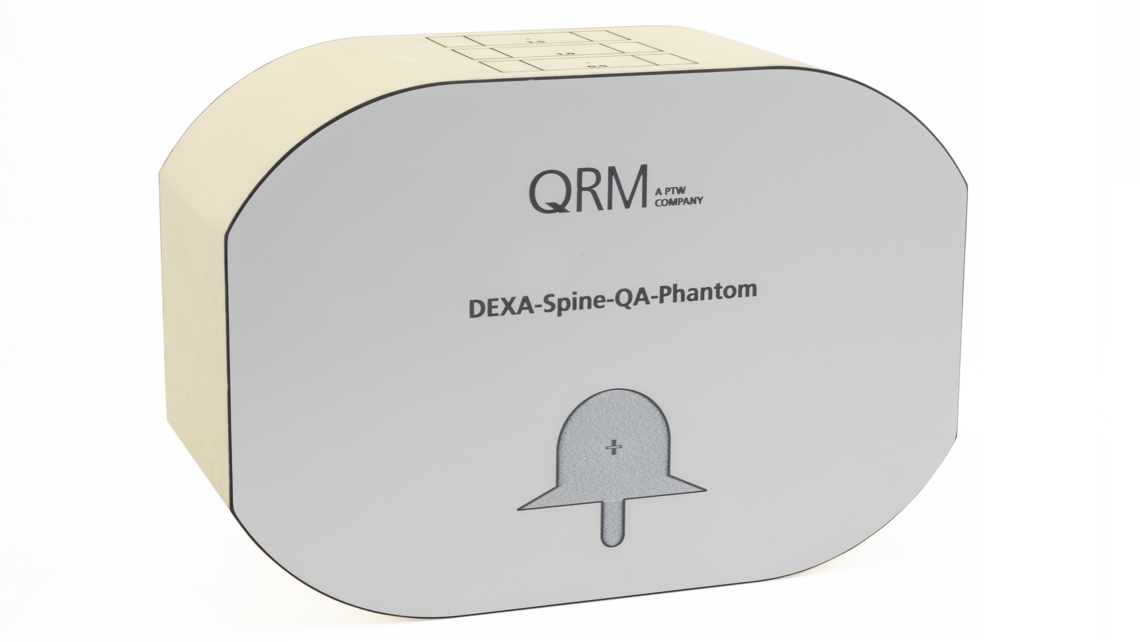

DXA Spine QA Phantom, 3 HA, QRM-50110



Technical Specifications

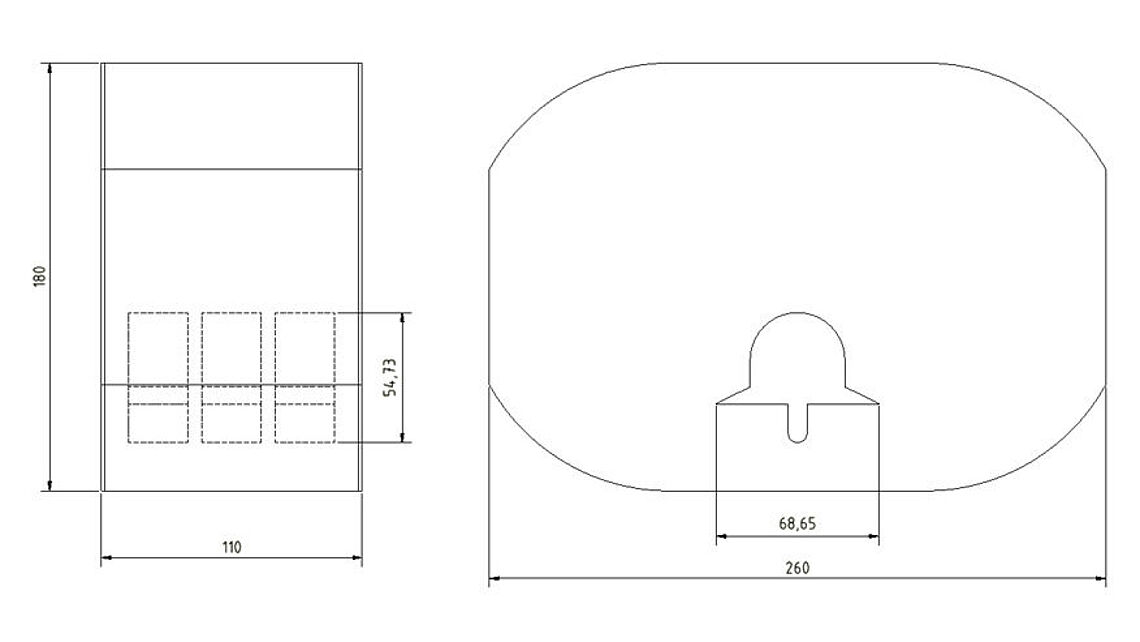

Phantom dimension: 260 mm x 180 mm (± 2 mm)
Phantom height: 110 mm
Phantom weight: 4.3 kg
Body material: tissue-equivalent plastic (at 120 kV)
Phantom accuracy:
All HA materials are within ±5% of specified values
Accuracy of calibrated aBMD: ± 5 mg/cm²

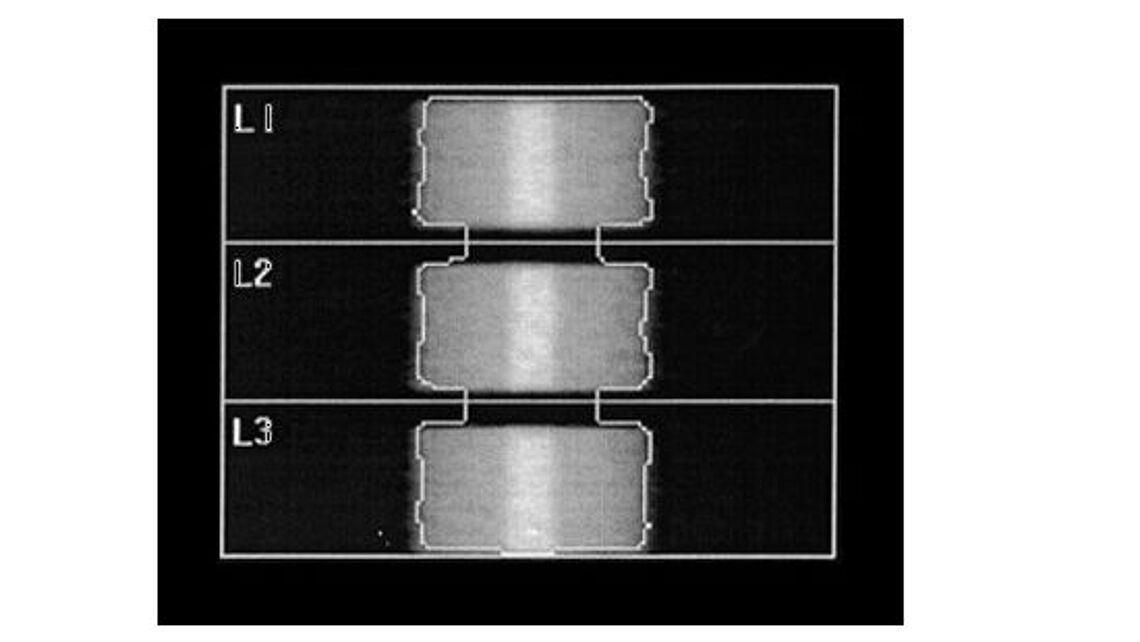

Vertebra DXA area density (AP) (g CaHA/cm²)
L1 0.5
L2 1.0
L3 1.5
