Forearm Phantom (BMF)

For quantitative CT measurements of the forearm and calibration of CT value to Bone Mineral Density (BMD)

BMD phantom for qCT of the forearm
Bone- and water-equivalent inserts embedded in a soft tissue-equivalent resin
Optimized design allows placement directly under the object

The Forearm Phantom is designed for calibrating CT values to bone mineral density (BMD). Its optimized design adapted to the anatomy of an adult forearm allows to place the phantom directly between the forearm and the couch.

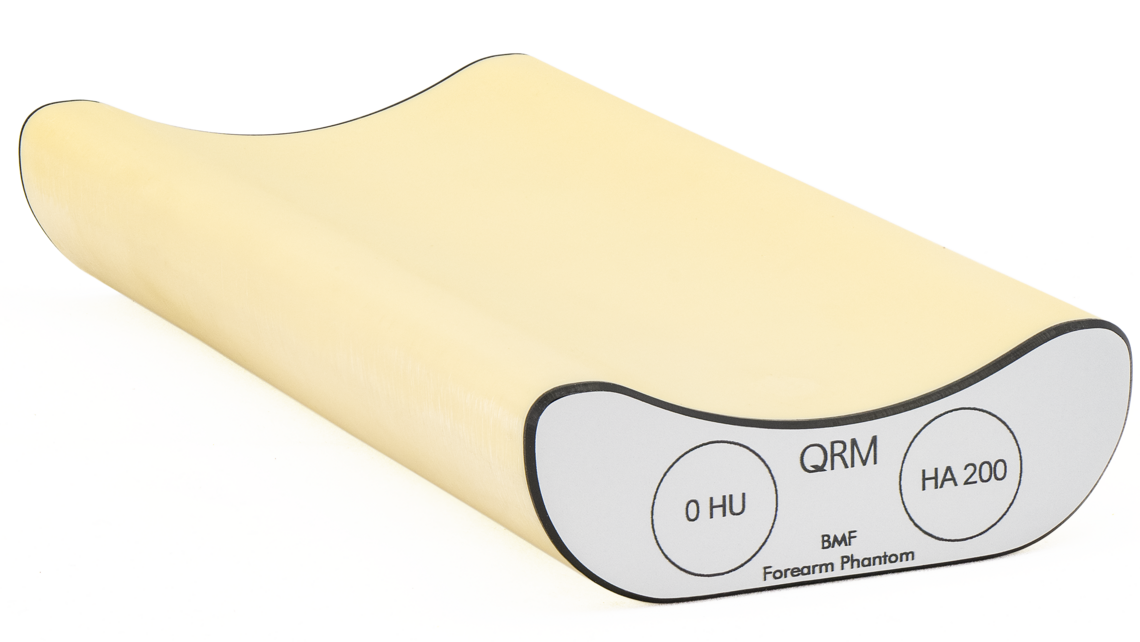

Forearm Phantom, QRM-50112

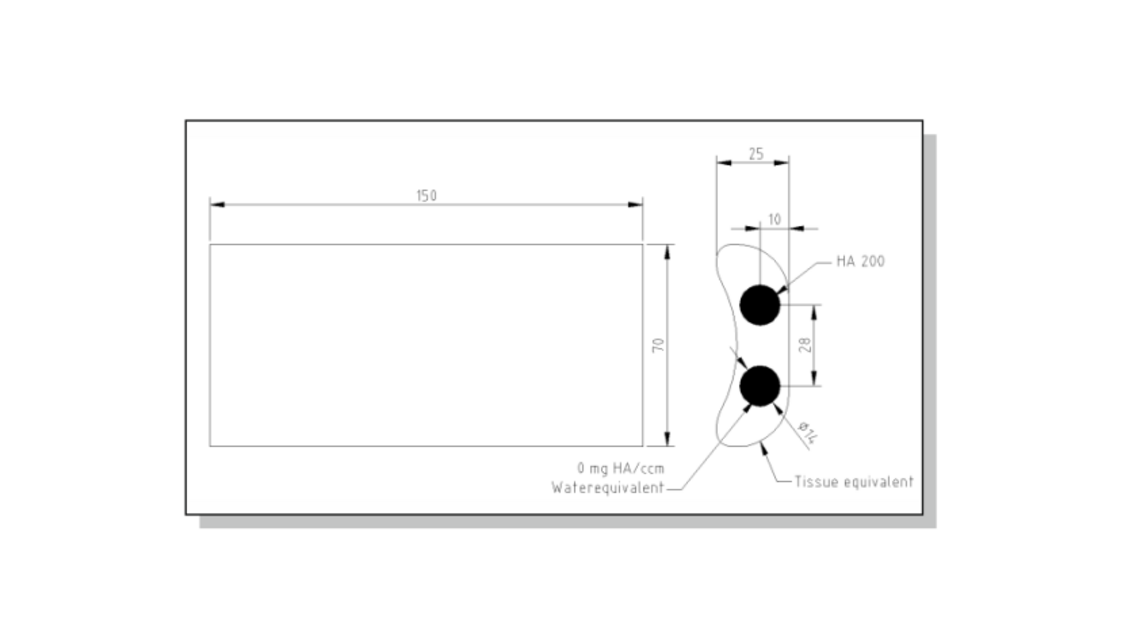

Technical Specifications

Phantom dimension:	70 mm x 25 mm
Phantom height:	150 mm
Phantom weight:	225 g
Body material:	soft tissue-equivalent plastic

Diameter:	14 mm
Height:	150 mm
Center-to-center distance between two inserts:	28 mm
Material:
Water-equivalent*:	CTwater, app. 0 HU at 80 - 140 kV
Bone-like**:	200 mg CaHA/cm³
