HIP Calibration Phantom, V2

For the assessment of bone mineral density (BMD) of the hip region in quantitative CT (qCT)

Evaluate BMD in quantitative Computed Tomography (qCT) of the hip/femur
Two different cylindrical inserts with different bone mineral densities
Optional: customizable inserts

The Hip Calibration Phantom consists of a water-equivalent body phantom, and two replaceable inserts based on CTwater enriched with calcium hydroxyapatite (HA) containing 800 mg HA/cm³ (cortical bone) and 100 /200 mg HA/cm³ (spongious bone).

The Phantom comprises a soft tissue-equivalent body and two interchangeable cylindrical inserts simulating different bone densities. The base material of the inserts is CTwater (water-equivalent material) enriched with calcium hydroxyapatite (CaHA). The inserts consist spongious/trabecular bone (with 100 and 200 mg CaHA/cm³) surrounded by a cortical wall (800 mg CaHA/cm³).

Different inserts with various BMD concentrations and metal implants are available upon request.

Hip Calibration Phantom V2, QRM-50113

Technical Specifications

Phantom dimension:	360 mm x 160 mm
Phantom height:	103 mm
Distance between inserts:	200 mm
Body material:	soft tissue equivalent (app. 30 HU @ 80 - 140 kV*)

Insert #	Dimension	Core dimension	Core material**: Spongious bone	Shell dimension	Shell material**: Cortical bone
1	Ø 30 mm, length 100 mm	Ø 20 mm, length 100 mm	100 mg CaHA/cm³	thickness 5 mm, length 100 mm	800 mg CaHA/cm³
2	Ø 30 mm, length 100 mm	Ø 20 mm, length 100 mm	200 mg CaHA/cm³	thickness 5 mm, length 100 mm	800 mg CaHA/cm³

*Accuracy ± 5 HU of specified values.

**All CaHA materials are within ±5% of specified values. Accuracy of calibrated BMD: ± 2 mg CaHA/cm³.

Image Gallery

1 / 2

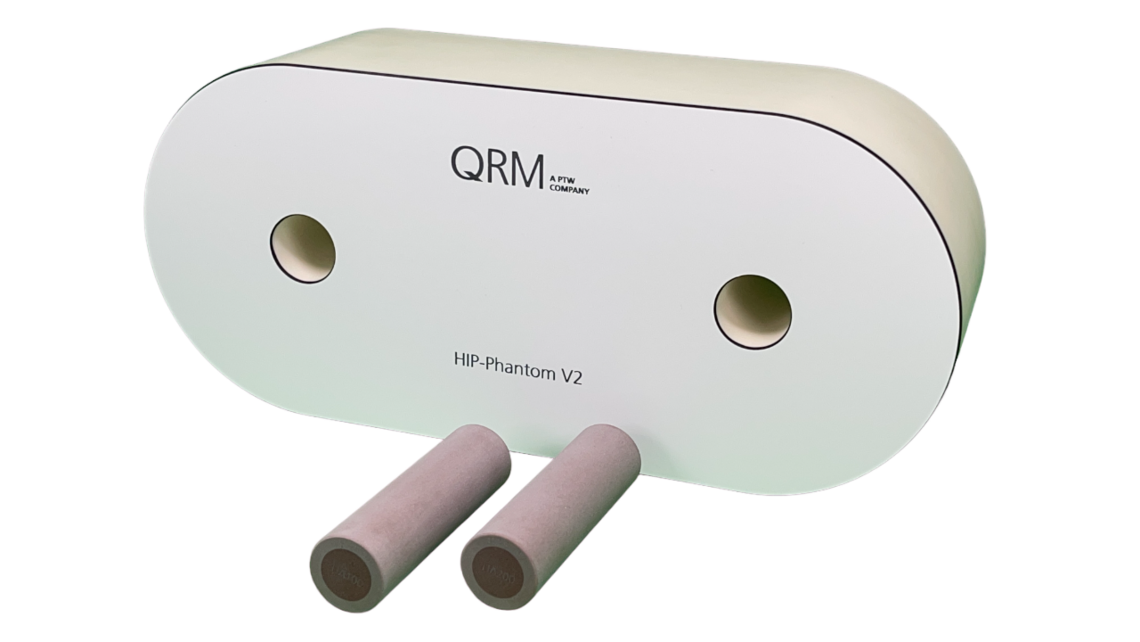

Hip Calibration Phantom V2, QRM-50113

2 / 2

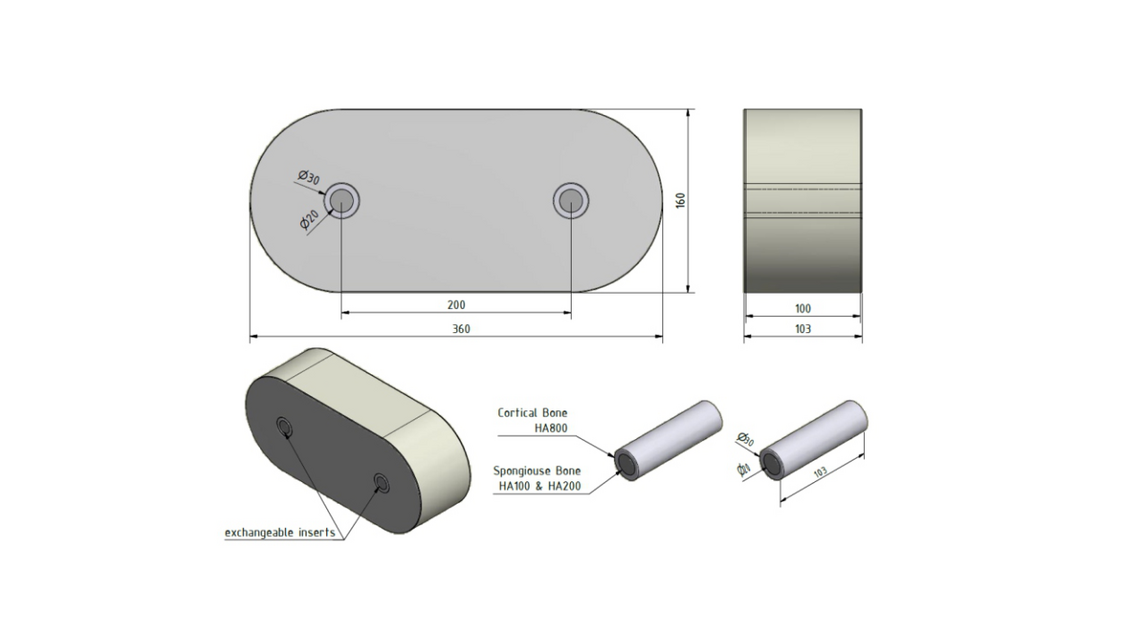

Schematic drawing of Hip Calibration Phantom V2, QRM-50113
