Micro-CT Dose Phantom

For dose measurements (DLP, CTDI) using a standard pencil-shaped ionization chamber

The Micro-CT Dose Phantom is a dosimetry phantom for determination of Dose Length Product (DLP) and Computed Tomography Dose Index (CTDI).

A standard pencil-shaped ionization chambers with a length of 100 mm can be inserted into the central borehole.

Different sizes and inserts other than those specified here can be produced upon request.

Micro-CT Dose Phantom, QRM-70106

Phantom diameter:	32 mm
Phantom height:	120 mm
Phantom weight:	105 g
Central borehole diameter:	9 mm (*)
Body material:	soft tissue-equivalent plastic
*Other hole diameters can be offered upon request.

1 / 2

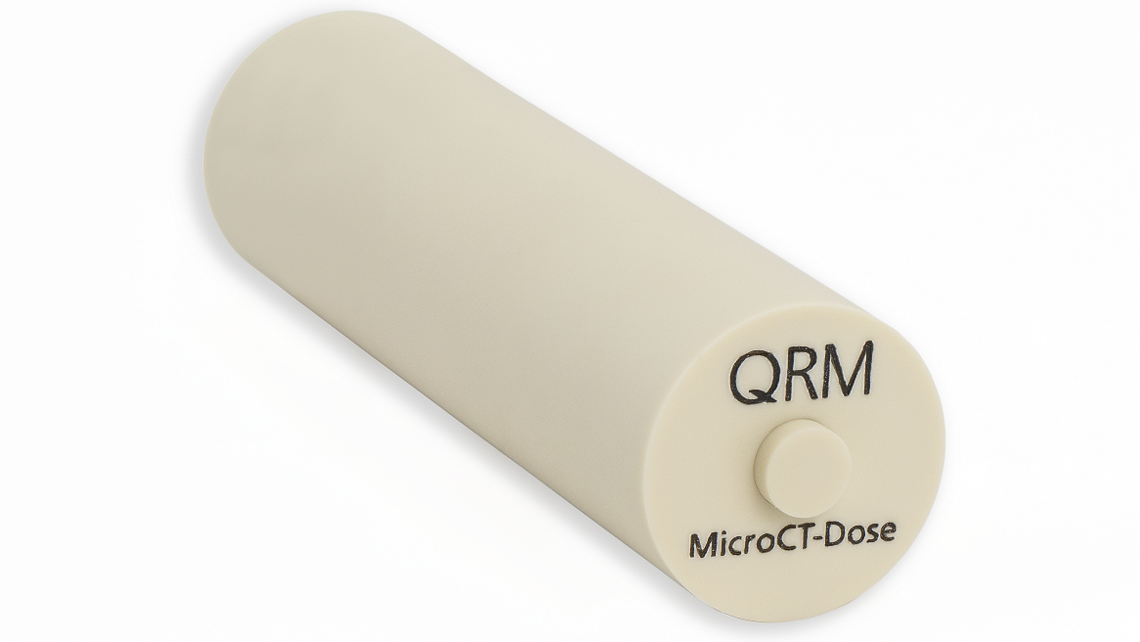

Micro-CT Dose Phantom, QRM-70106

2 / 2

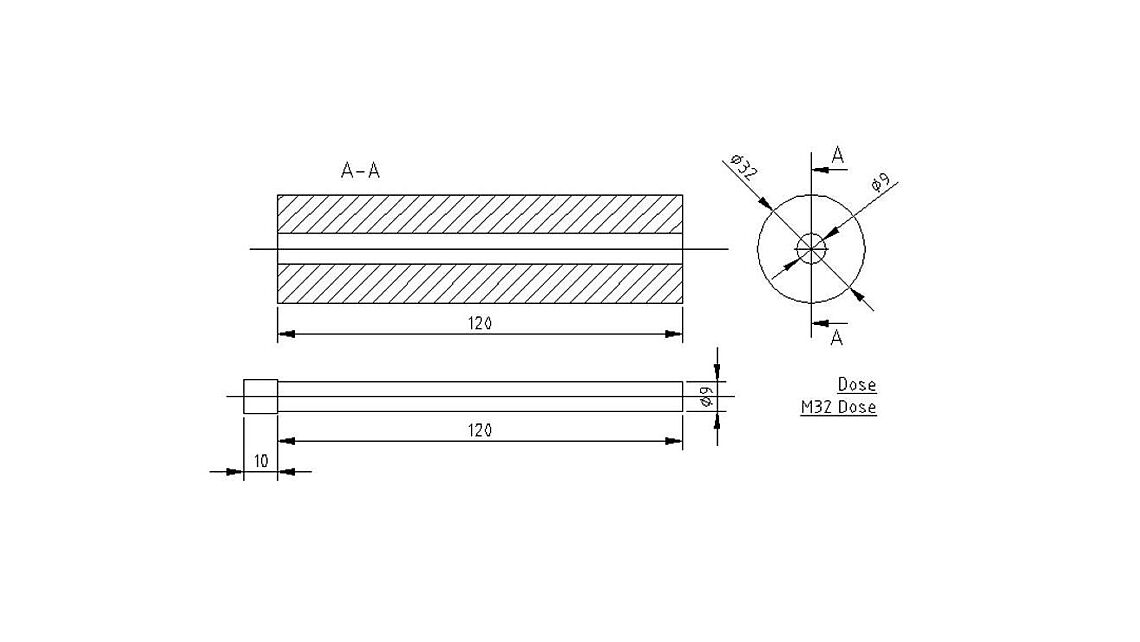

Schematic Diagram of Micro-CT Dose Phantom, QRM-70106
