Micro-CT Multi Disk Phantom

For testing cone-beam artifacts caused by reconstruction algorithms

Convenient test object to check cone beam artifacts in micro-CT scanners
Includes 1 and 3 mm high- and low-density circular disks
Phantom design following Defrise

The Micro-CT Multi Disk Phantom is the test object of choice for demonstrating artifacts occurred by any kind of approximate reconstruction algorithms. The phantom consists of eight high-density circular disks evenly spaced 3 mm apart parallel to the axis of rotation. These disks are separated by low-density disks that appear as darker material.

Micro-CT Multi Disk Phantom, QRM-70104

Technical Specifications

Phantom diameter:	20 mm
Phantom height:	49 mm
Phantom weight:	19 g
Flanging outer layers:
Body material:	PMMA
Thickness:	10 mm for each side

High-density disk:
Diameter:	20 mm
Thickness:	1.0 mm
Density:	1.38 g/cm³
Low-density disk:
Diameter:	20 mm
Thickness:	3.0 mm
Density:	1.18 g/cm³
Tolerances	± 0.15 mm

Image Gallery

1 / 3

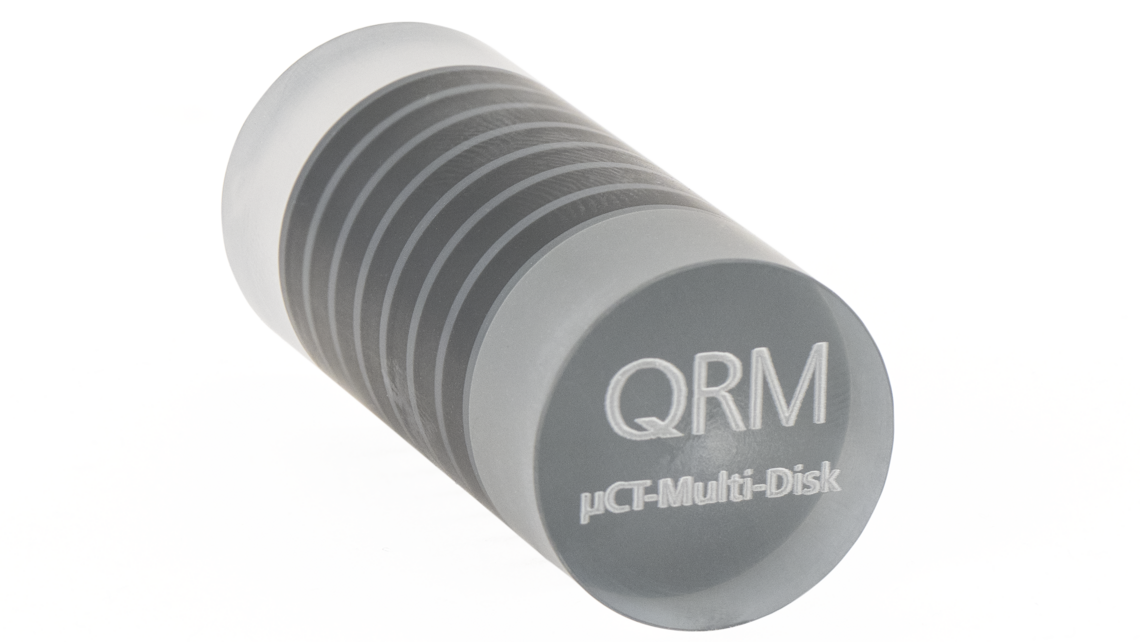

Micro-CT Multi Disk Phantom, QRM-70104

2 / 3

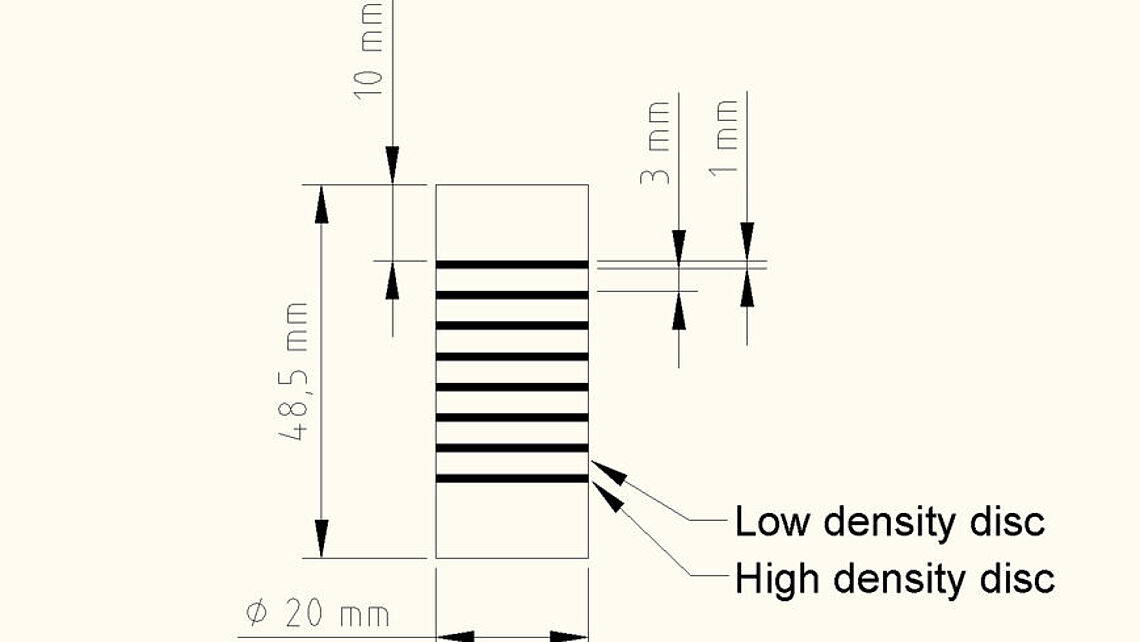

Schematic drawing of Micro-CT Multi Disk Phantom, QRM-70104

3 / 3

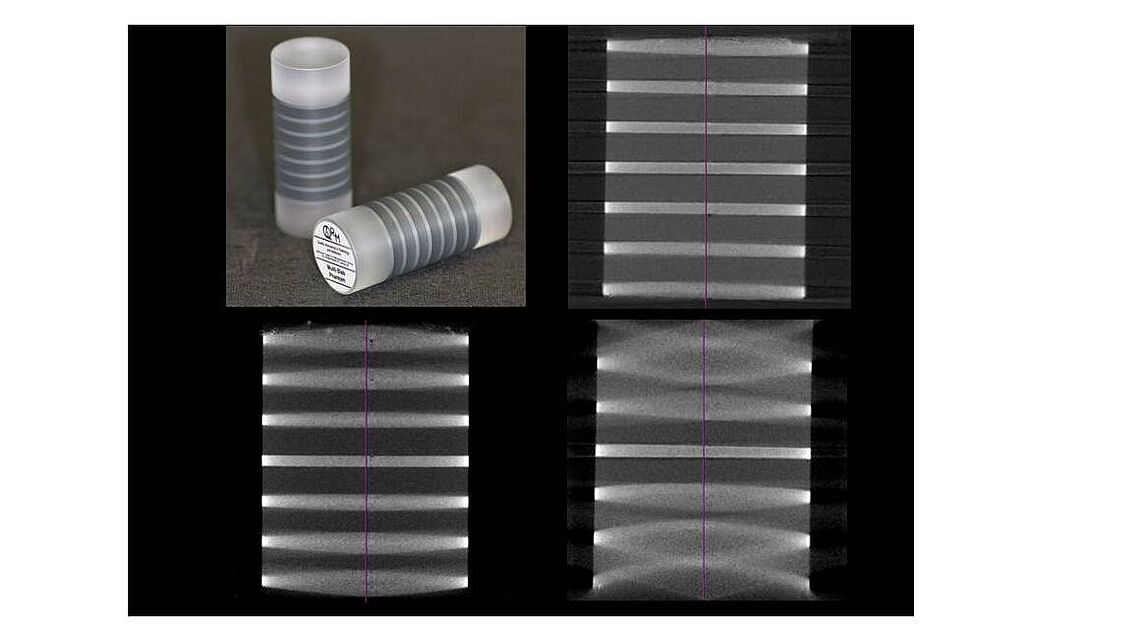

Reconstructions at 30, 11 and 5 degree of Micro-CT Multi Disk Phantom, QRM-70104
