Micro-CT Water Phantom

For noise and uniformity measurements of micro-CT systems

Water-fillable phantom to measure noise and homogeneity
Bubble-free design: extra cavity for air bubbles
Different diameters available (D60 mm, D32 mm, D20 mm)

The Micro-CT Water Phantoms are the ideal tool for measuring noise, homogeneity and uniformity. Due to its optimized design providing an extra 'air' cavity, it can easily be filled bubble-free, such that they can be used in a rotating gantry or in upright position.

There are 3 available models, all made of transparent low density (1.0 g/cm³) plastic providing a high mechanical stability.

Micro-CT Water Phantom, M60, QRM-70110
Micro-CT Water Phantom, M32, QRM-70111
Micro-CT Water Phantom, M20, QRM-70112

Technical Specifications

Phantom inner diameter	60 mm
Phantom height	135 mm
Phantom inner height	110 mm
Phantom wall thickness	0.5 mm
Body material	durable plastic or PMMA

It is recommended to use the phantoms with distilled water (e.g. HPLC-grade)

Phantom diameter (inner)	32 mm
Phantom height	66 mm
Phantom inner height	44 mm
Phantom wall thickness	0.4 mm
Body material	durable plastic or PMMA

It is recommended to use the phantoms with distilled water (e.g. HPLC-grade)

Phantom diameter (inner)	20 mm
Phantom height	62 mm
Phantom inner height	40 mm
Phantom wall thickness	0.4 mm
Body material	durable plastic or PMMA

It is recommended to use the phantoms with distilled water (e.g. HPLC-grade)

Image Gallery

1 / 3

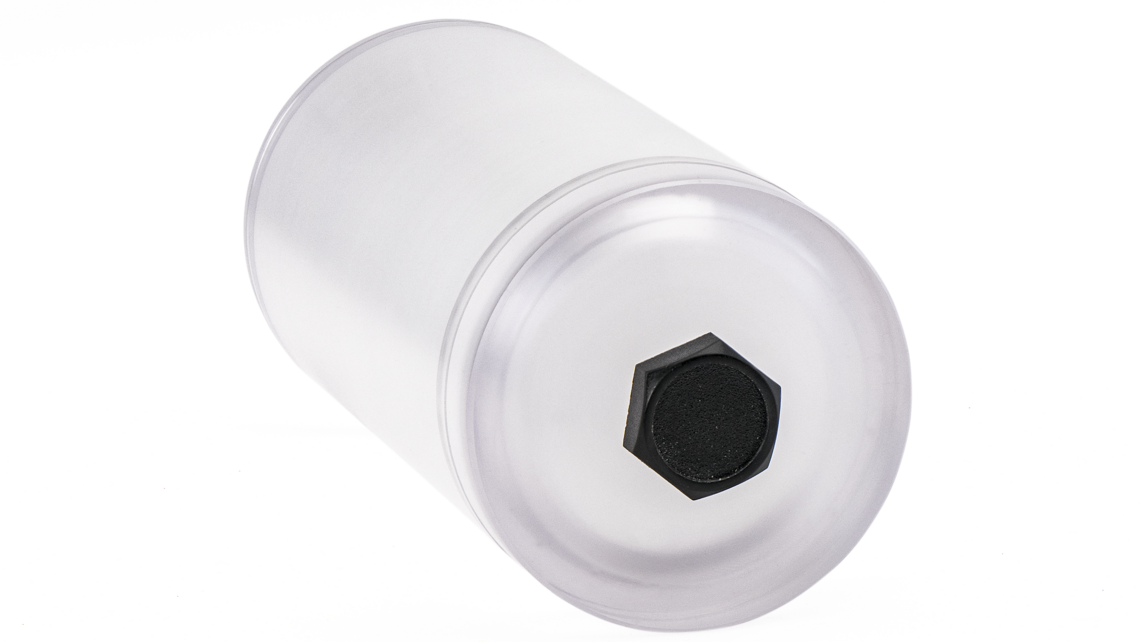

Micro-CT Water Phantom, M60, QRM-70110
Micro-CT Water Phantom, M32, QRM-70111
Micro-CT Water Phantom, M20, QRM-70112

2 / 3

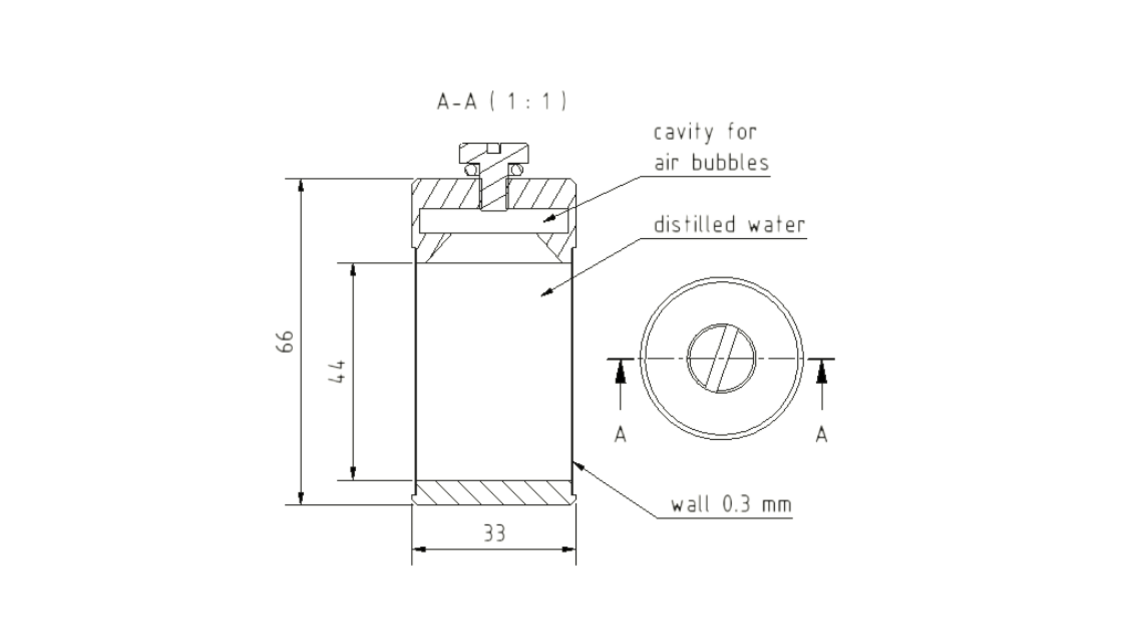

Schematic Diagram of Micro-CT Water Phantom, M32, QRM-70111

3 / 3

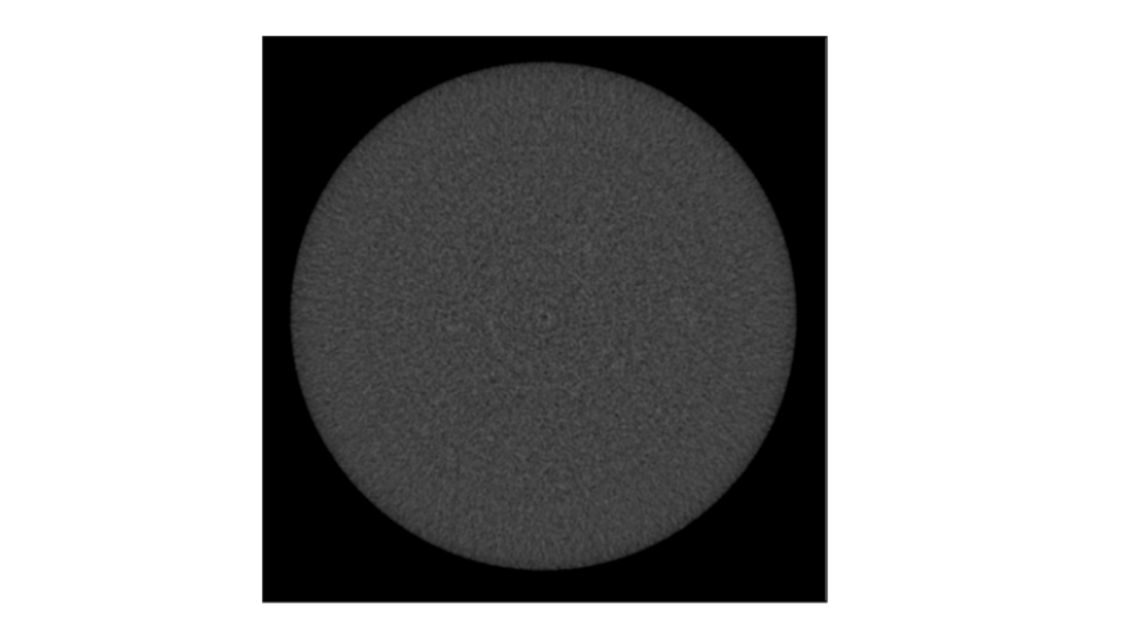

Measuring noise and homogeneity with Micro-CT Water Phantom
