Micro-PET IQ Phantom, NEMA NU4

For performance evaluation of micro-PET systems (the measurement of small animals) according to NEMA NU 4-2008 standard

Performance measurements of small animals’ positron emission tomography (PET)
Design in accordance with the NEMA NU 4-2008 standard
Measure image quality, accuracy of attenuation and perform scatter corrections

The NEMA NU 4-2008 standard proposes a standardized methodology for evaluating the performance of positron emission tomography (PET) designed for small animal imaging.

The phantom is made of PMMA and includes different cavities. One half of the phantom is equipped with a large cavity (Ø = 30 mm) that can be filled with a radioisotope (hot zone). This large cavity encloses two small cavities (cold zones) separated from the large cavity that can be filled with water and air.

The other half of the phantom houses five small fillable cavities (Ø = 1, 2, 3, 4 and 5 mm) that are arranged circular and connected to the large cavity in the first half of the phantom (hot zone).

Micro-PET IQ Phantom, QRM-70115

Technical Specifications

The NEMA NU 4-2008 report is not part of the phantom described here. It must be ordered separately at www.nema.org!
Phantom (outer) diameter	33.5 mm
Phantom height	63 mm
Body material	PMMA

The NEMA NU 4-2008 report is not part of the phantom described here. It must be ordered seperately at www.nema.org!
Hot regions - fillable with ioisotope
Large cavity	Diameter (inner)	Ø 30 mm
	Height	30 mm
Group of 5 cavities arranged circular, connected to large cavity	Diameter	Ø 1, 2, 3, 4 and 5 mm
	Height	20 mm

Cold regions - fillable with water and air
2 separate cavities embedded in large cavity	Diameter (inner)	Ø 8 mm
	Height	15 mm

Image Gallery

1 / 3

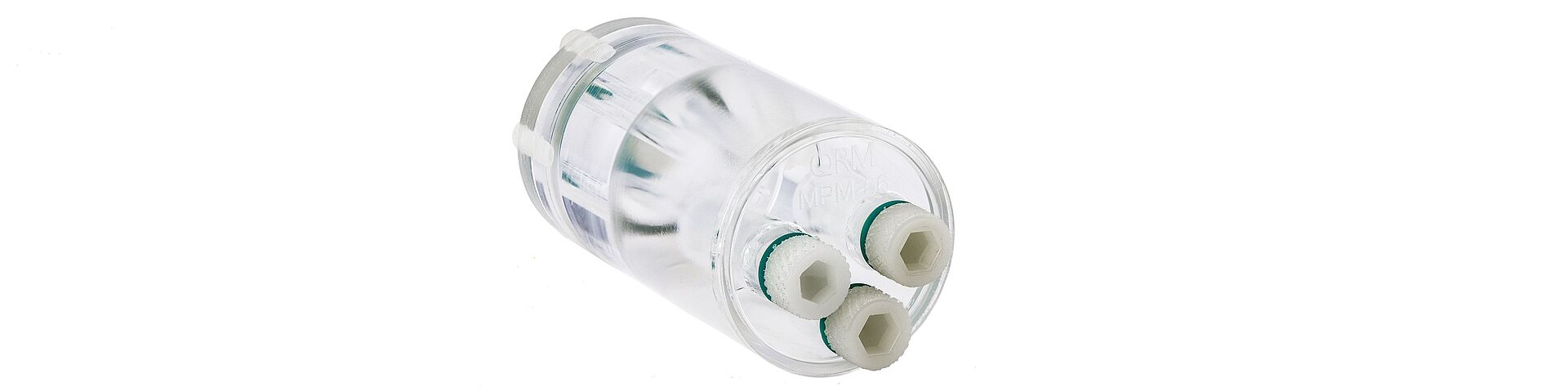

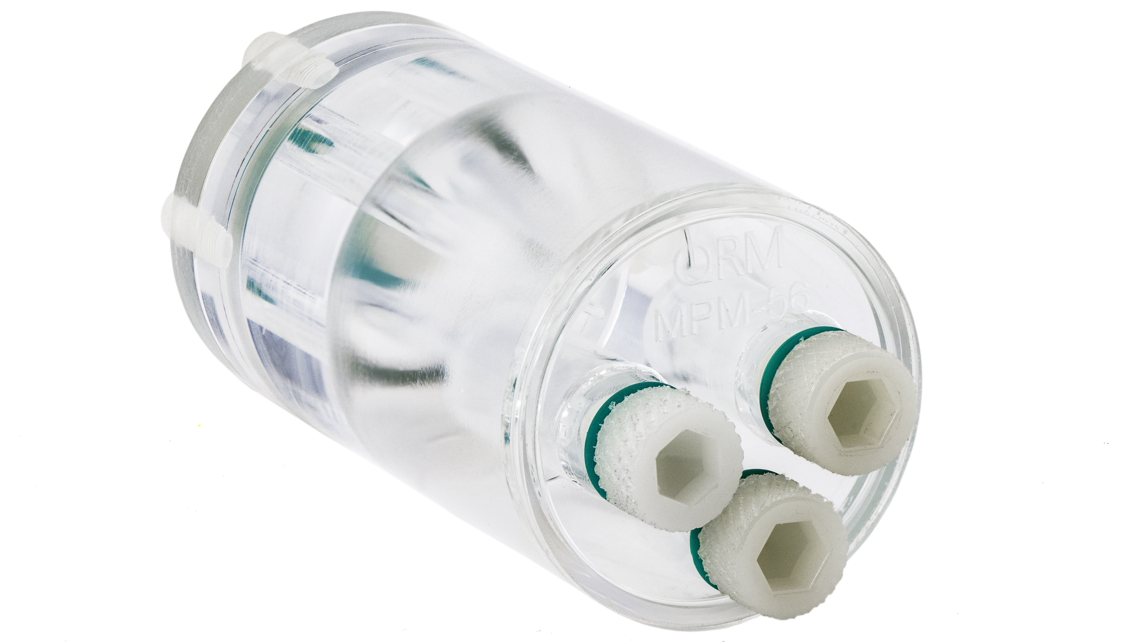

Micro-PET IQ Phantom, QRM-70115

2 / 3

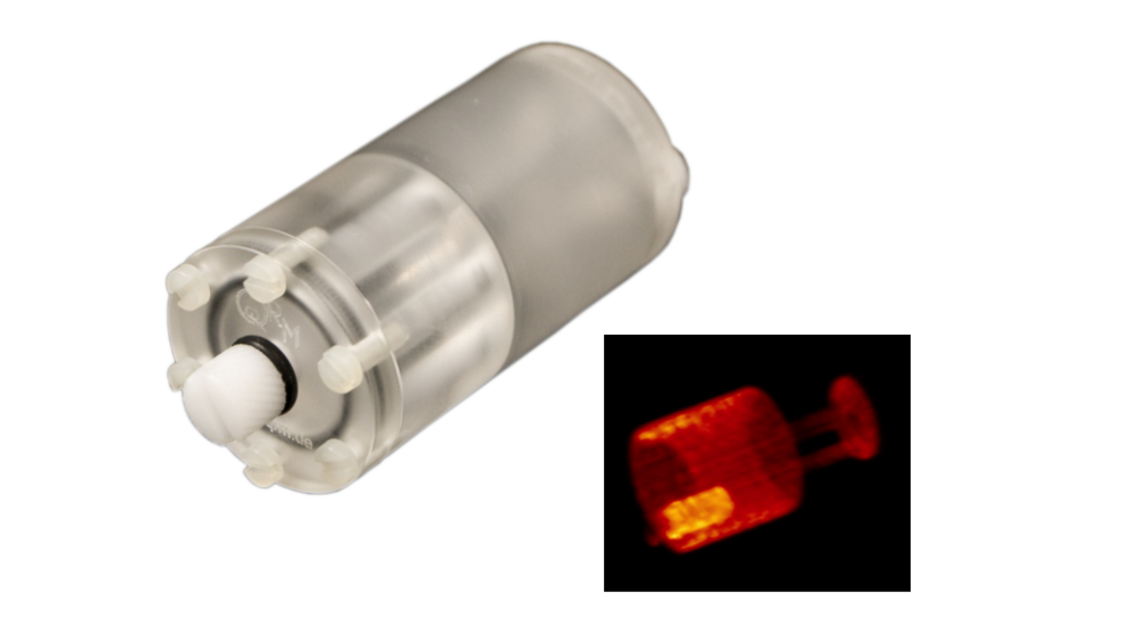

Micro-PET NEMA-NU4 Phantom and 3D-PET-rendering (PET-image: courtesy AX-PET collaboration, 2010)

3 / 3

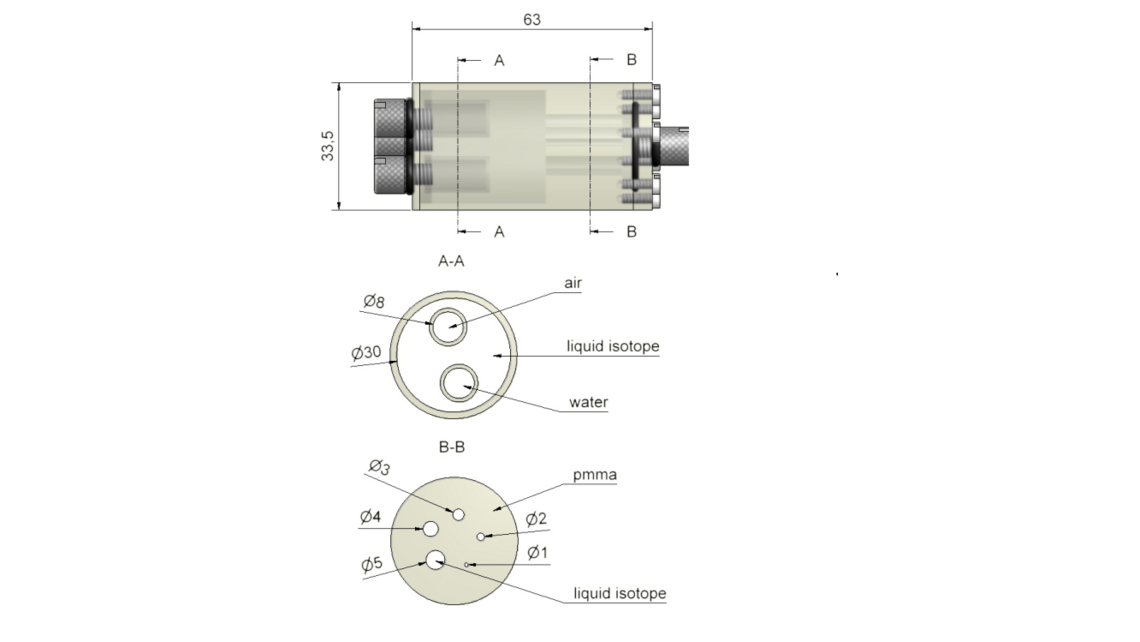

Dimensions of the Micro-PET IQ Phantom, QRM-70115 (in mm)
