Micro-PET Scatter Phantom

For evaluating scatter fraction, count losses & random coincidence measurements of micro-PET systems acc. to the NEMA NU 4-2008 standard

Performance evaluation of positron emission tomography (PET) systems for small-animal imaging
Design in accordance with the NEMA NU 4-2008 standard
Mouse, Rat and Monkey size

The NEMA NU 4-2008 standard proposes a standardized methodology for evaluating the performance of positron emission tomography (PET) designed for small-animal imaging.

The phantoms are designed according to the NEMA NU4-2008 specifications for the evaluation of scatter fraction, count losses and random coincidence measurements in micro-PET systems. Three different types of phantoms are available (mouse, rat or monkey size). The phantoms are made from high-density polyethylene (HD PE).

Micro-PET Scatter Phantom Mouse, QRM-70116

Micro-PET Scatter Phantom Rat, QRM-70120

Micro-PET Scatter Phantom Monkey, QRM-70122

Technical Specifications

Phantom diameter	25 mm
Phantom height	70 mm
Phantom material	high-density polyethylene (HD PE)
Borehole diameter	3.2 mm
Borehole position	10 mm off-center (parallel to the central axis)

Phantom diameter	50 mm
Phantom heigh	150 mm
Phantom material	high-density polyethylene (HD PE)
Borehole diameter	3.2 mm
Borehole position	17.5 mm off-center (parallel to the central axis)

Phantom diameter	100 mm
Phantom height	400 mm
Phantom material	high-density polyethylene (HD PE)
Borehole diameter	3.2 mm
Borehole position	30 mm off-center (parallel to the central axis)

Image Gallery

1 / 3

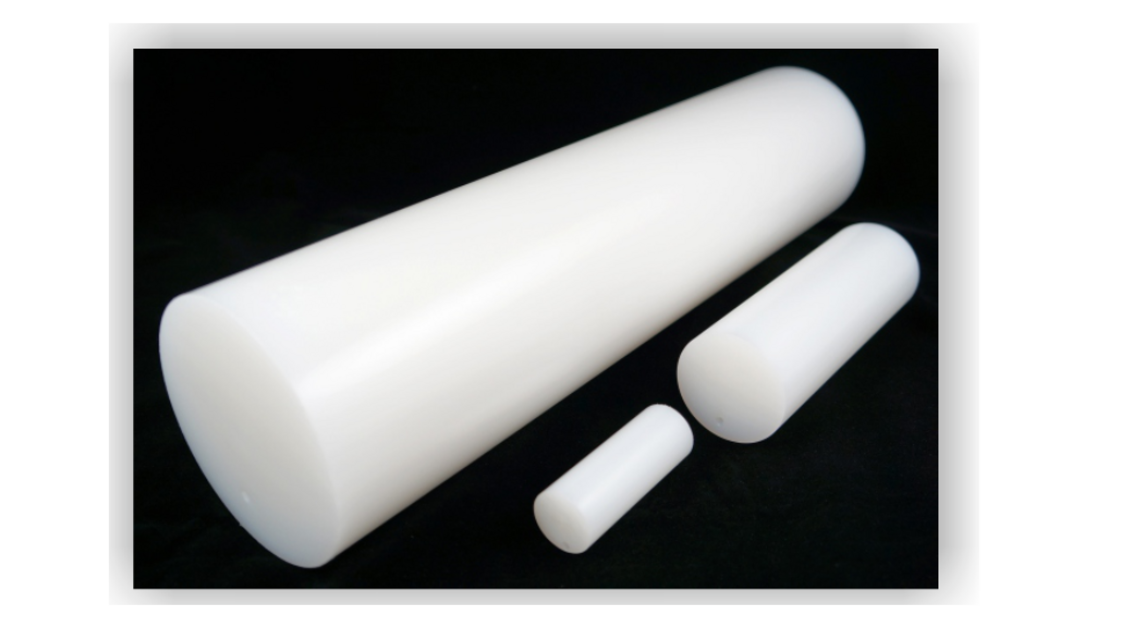

Micro-PET NEMA-NU4 Scatter Phantoms
Mouse, Rat and Monkey Size

2 / 3

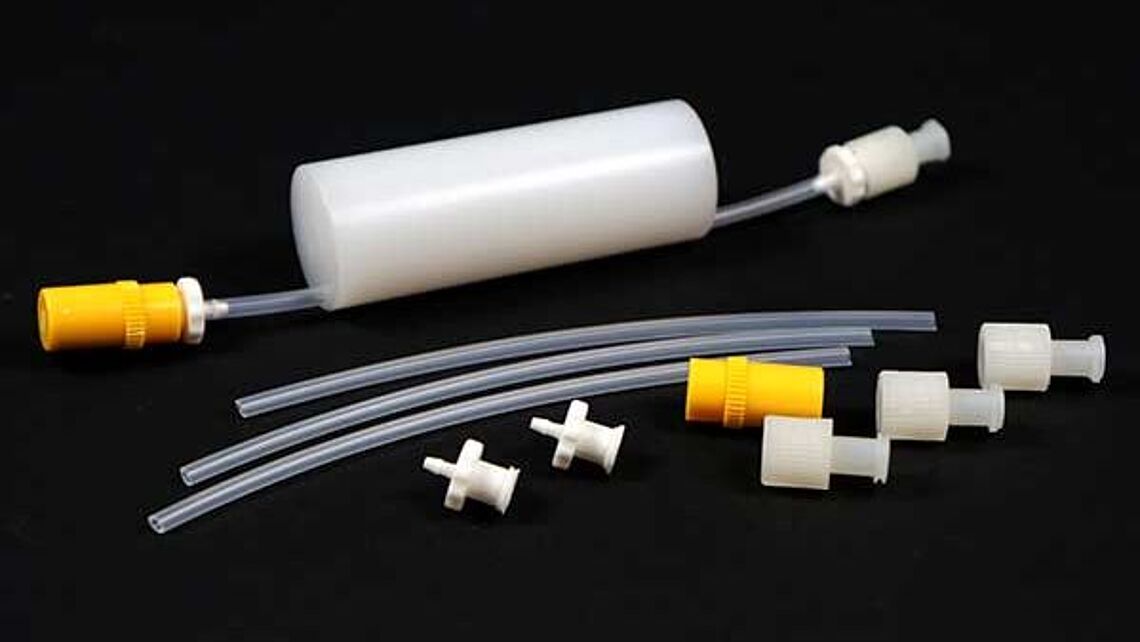

The Phantom comes with PE tubes and adapters
(luer/lock) to connect standard syringes

3 / 3

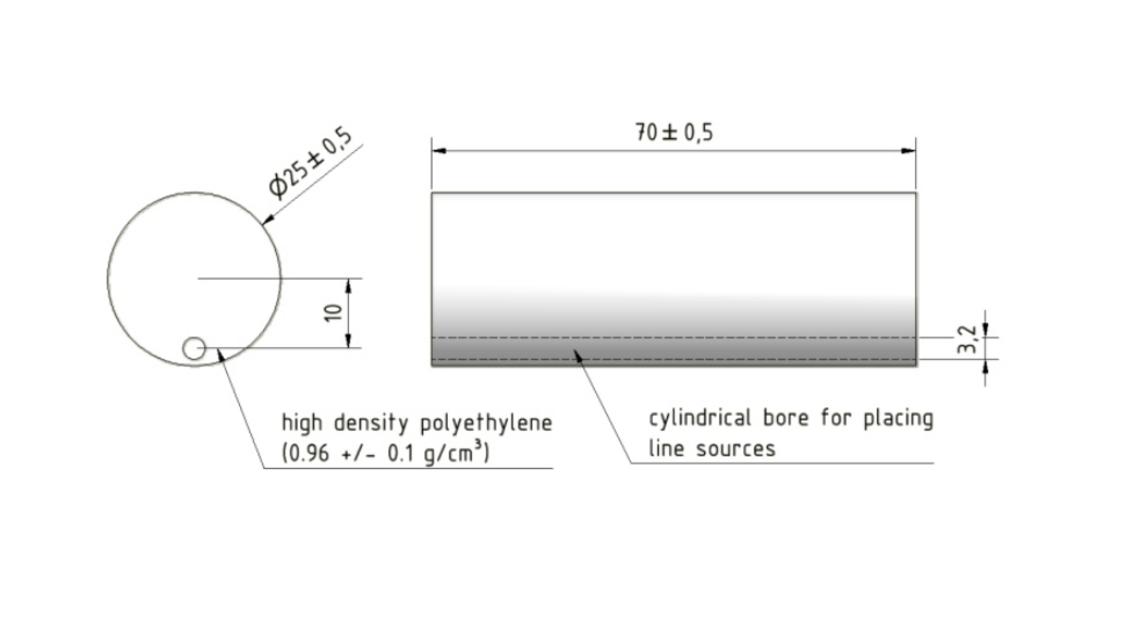

Dimensions of the Micro-PET Scatter Phantom Mouse (in mm)
