Thorax and Abdomen Dosimetry Phantom

The (semi-) anthropomorphic phantoms for optimizing dose protocols in CT and CBCT applications

  • Optimize dose protocols in CT/CBCT
  • Dose bores according to CTDI specifications
  • D100 compatible

The dosimetric version of the Thorax Phantom and the Abdomen Phantom come with drilled holes according to CTDI specifications for dosimetry purposes.

Both phantoms are available as infant version for pediatric applications.

Thorax Dosimetry Phantom, QRM-40104

Abdomen Dosimetry Phantom, QRM-40105

    There are multiple standard cylinders for image quality purposes available. The following D100 Inserts are available:



    Technical Specifications

    Phantom dimension: 200 mm x 300 mm
    Phantom height: 103 mm
    Phantom weight: 2.7 kg (Thorax) 0.9 kg (Insert)
    Diameter of borehole: 100 mm
    Body/Insert material: Soft tissue-equivalent (app. 30 HU at 80-140 kV)
    Lung: app. -800 HU (at 120 kV)
    Spine: corticalis / spongiosa (bone-like, app. 550 HU / 200 HU at 120 kV)
    Phantom dimension: 200 mm x 300 mm
    Phantom height: 103 mm
    Phantom weight: 3.2kg (Abdomen) 0.9 kg (Insert)
    Diameter of borehole: 100 mm
    Body/Insert material: Soft tissue-equivalent (app. 30 HU at 80-140 kV)
    Liver/Spleen: tissue-equivalent (app. 60 HU at 120 kV)
    Spine: corticalis / spongiosa (bone-like, app. 550 HU / 200 HU at 120 kV)

    Image Gallery

    1 / 2

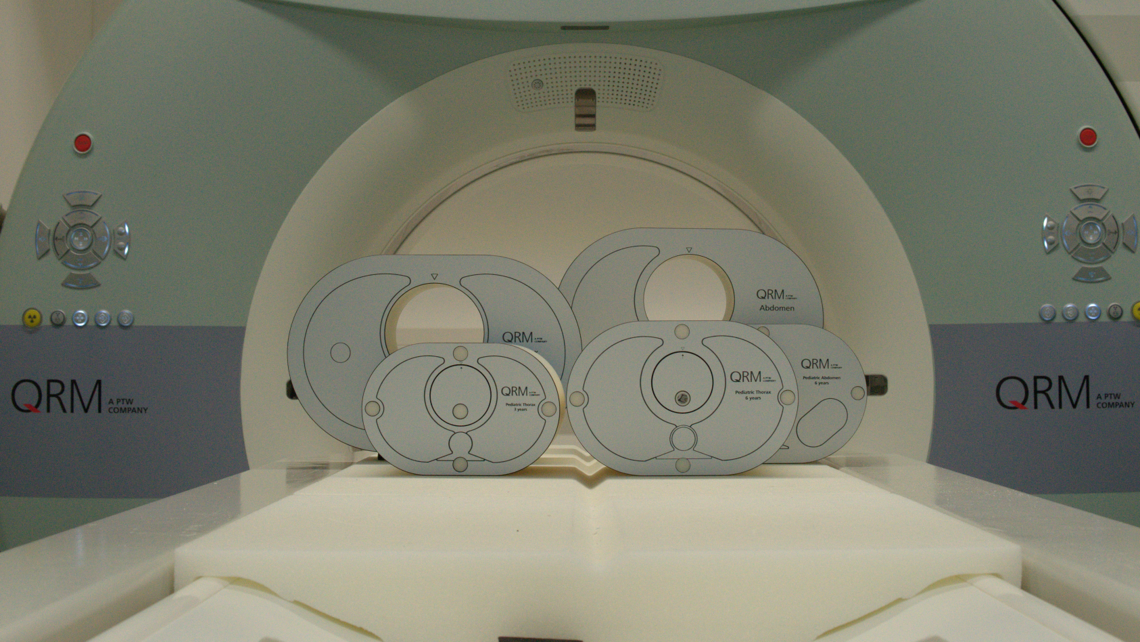

    Anthropomorphic phantoms for pediatric applications
    2 / 2

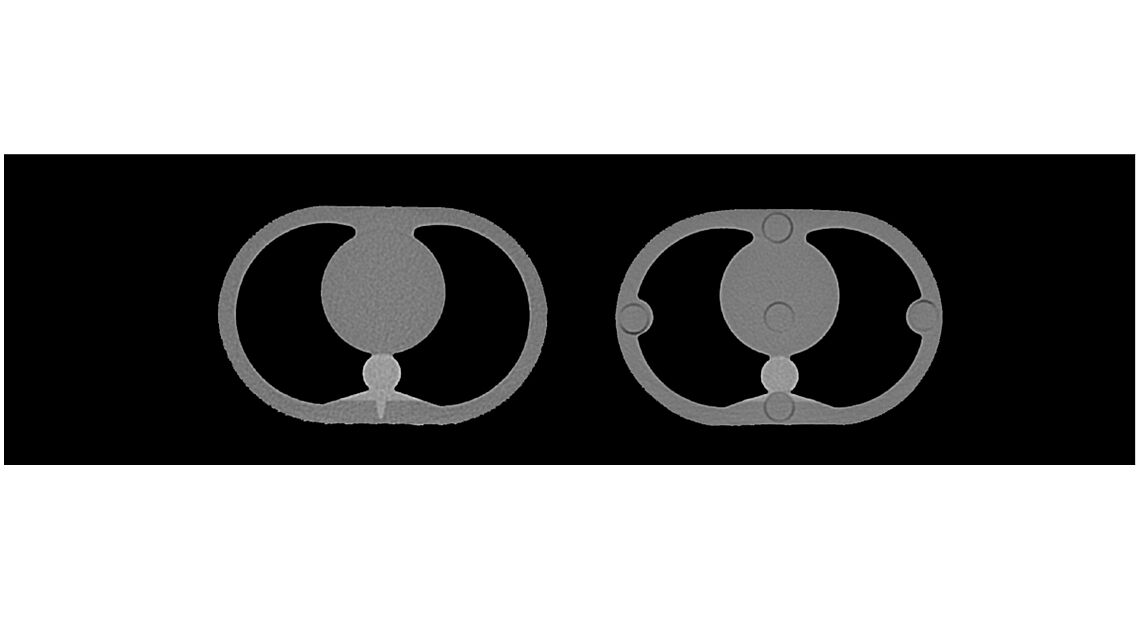

    X-ray images of Pediatric Thorax Phantom
