Lung Nodule Phantom

For the detection of various lung nodules within the lung region

(Semi-)anthropomorphic phantom
Includes multiple spherical nodules of different densities and dimensions

The phantom is designed to assess the detectability of various lung nodules within the lung region in pulmonary CT examinations.

It houses multiple spherical nodules of different densities and dimensions arranged randomly within both lung lobes. The nodules are designed to cover various imaging scenarios with respect to nodule type and grey value (e.g. ground glass opacity). The enclosed lung material consists of homogeneous and heterogeneous lung granulate, which can be optionally filled into the lung lobes by the end user.

In order to mimic a (semi-)anthropomorphic surrounding it contains a bone-like spine (corticalis and spongiosa). The body is made of soft tissue-equivalent material.

The QRM-20114 is a compact functional phantom and can be easily positioned on the couch.

Lung Nodule Phantom, QRM-20114

Technical Specifications

Phantom weight:	3.0 kg
Dimension:	200 mm x 300 mm
Height:	200 mm (210 mm including both cover plates)
Body material:	Soft tissue-equivalent (app. 30 HU at 80-140 kV)
Lung-equivalent granules:	app. -900 HU (at 120 kV)
Spine:	corticalis / spongiosa (bone-like, app. 550 HU / 200 HU at 120 KV)

Nodul size
Nodule / Diameter	2 mm	4 mm	6 mm	8 mm	10 mm
20 HU	1	2	1	1	1
50 HU	2	1	1	1	1
80 HU	1	1	2	1	2
-650 HU	1	2	1	1	1
-750 HU	1	1	1	2	1
-850 HU	2	1	1	1	1
Nodules with core and shell
Nodule No	Core	Shell	D Shell	D Shell
1	50 HU	-750 HU	2	4
2	50 HU	-750 HU	2	6
3	50 HU	-750 HU	4	8

Image Gallery

1 / 2

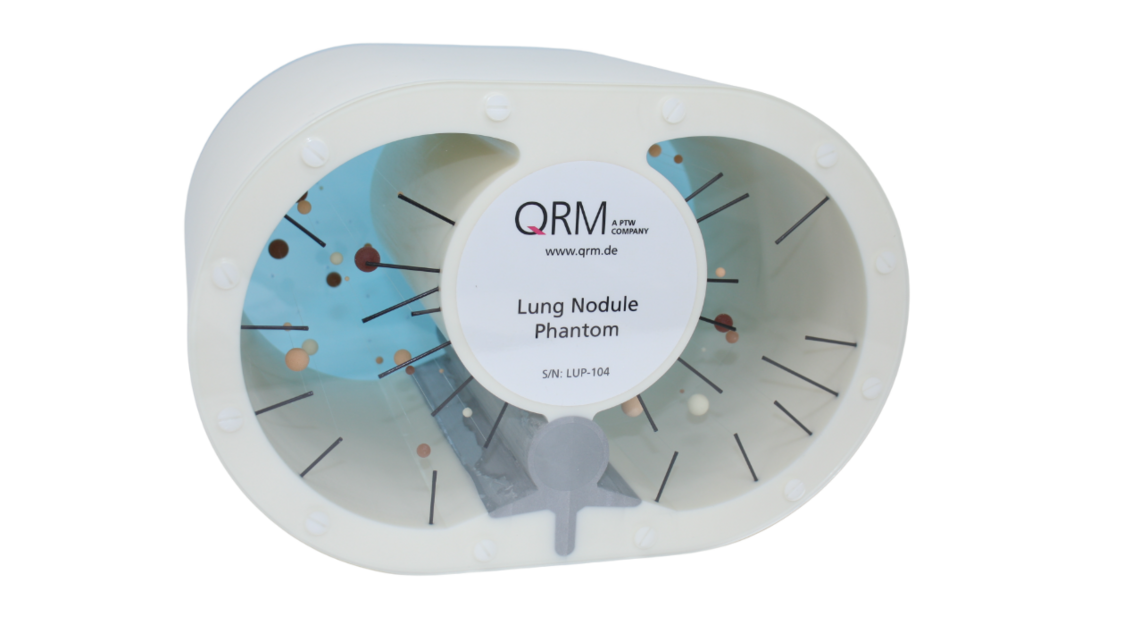

Lung Nodule Phantom, QRM-20114

2 / 2

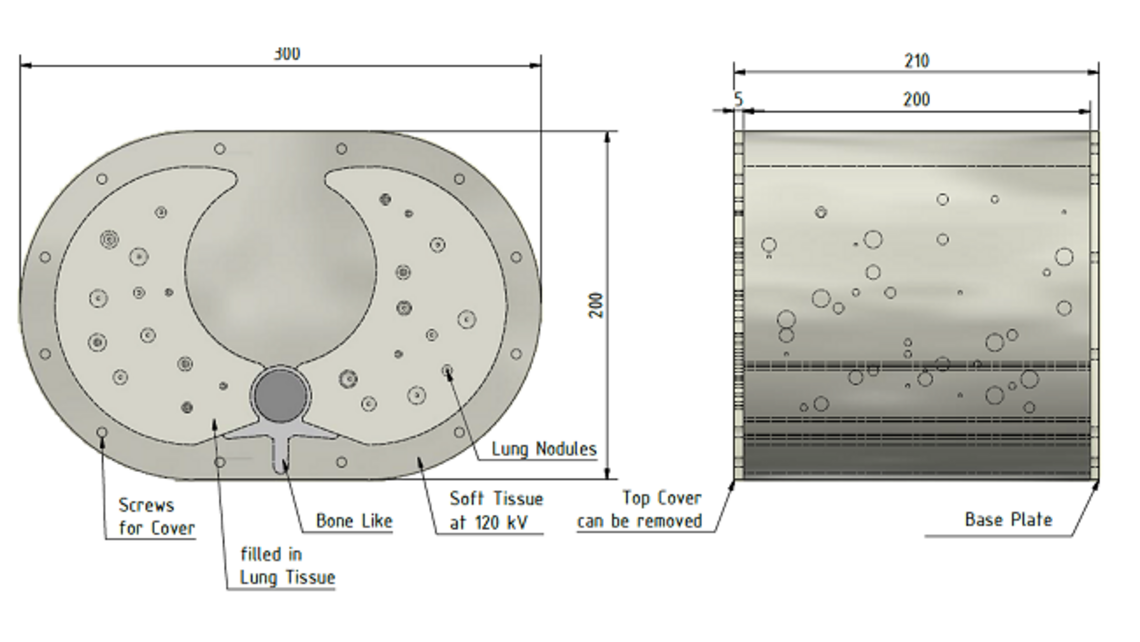

Schematic Diagram of Lung Nodule Phantom, QRM-20114
