Micro-CT Mouse Phantom

For the performance of image quality tests at small animal micro-CT systems

  • Mimics the body of a small mouse
  • Image Quality checks at small-animal micro-CT systems
  • Different soft-bone-tissue inserts with different density



The phantom mimics the body of a mouse and is specially designed to perform image quality tests of micro-CT systems for small-animal research.

It consists of soft tissue-equivalent plastic and several bone and organ inserts, as well as an aorta and heart with a specific iodine uptake.

Micro-CT Mouse Phantom, QRM-70137

Technical Specifications

Phantom width 32 mm
Phantom height: 24 mm
Phantom length: 40 mm
Phantom weight: 35 g
Body material: soft-tissue equivalent
Insert Tissue Dimension HA/Iodine
Bone HA200 Ø 5.0 mm 200 mg CaHA / cm³
Bone HA200 Ø 3.0 mm 200 mg CaHA / cm³
Bone HA100 Ø 2.0 mm 100 mg CaHA / cm³
Aorta I420 Ø 1.0 mm 15 mg I / cm³
Heart I100 2 mm x 4 mm 1 mg I / cm³
Liver Soft Tissue 2 6 mm x 12 mm -
Air Lung 6 mm x 8 mm -

Image Gallery

1 / 6

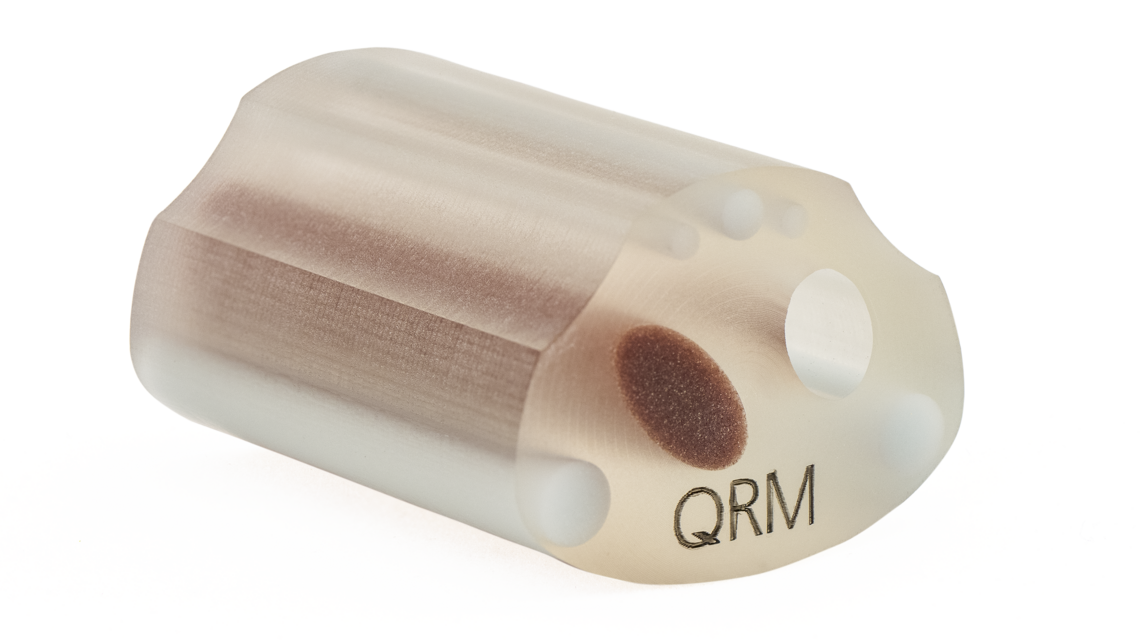

Micro-CT Mouse Phantom, QRM-70137
2 / 6

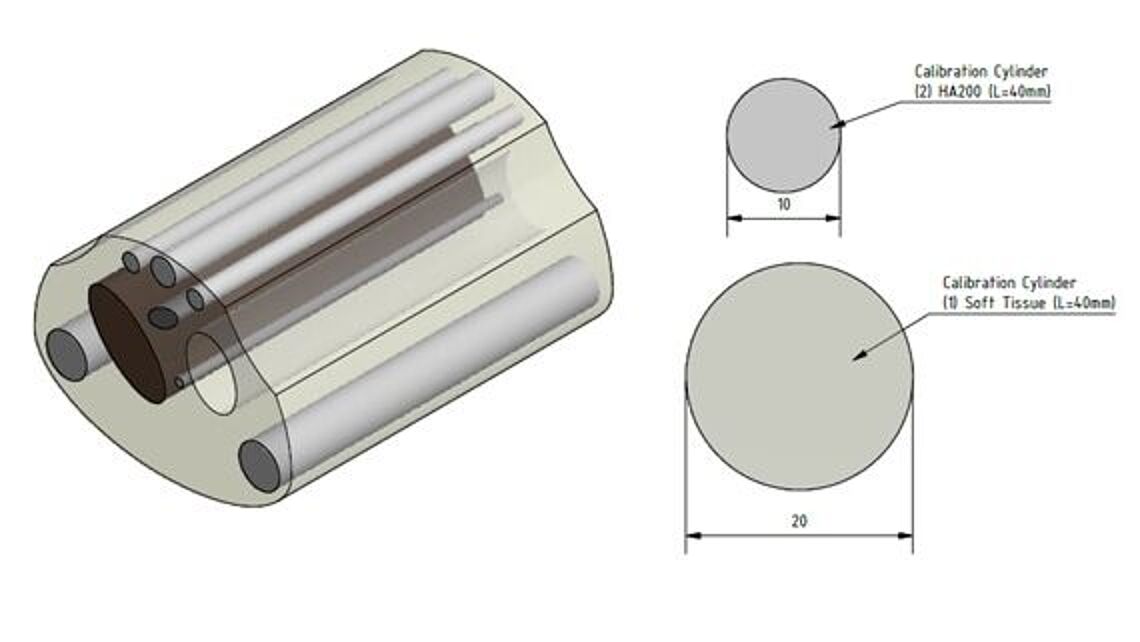

Schematic Diagram of Micro-CT Mouse Phantom, QRM-70137
3 / 6

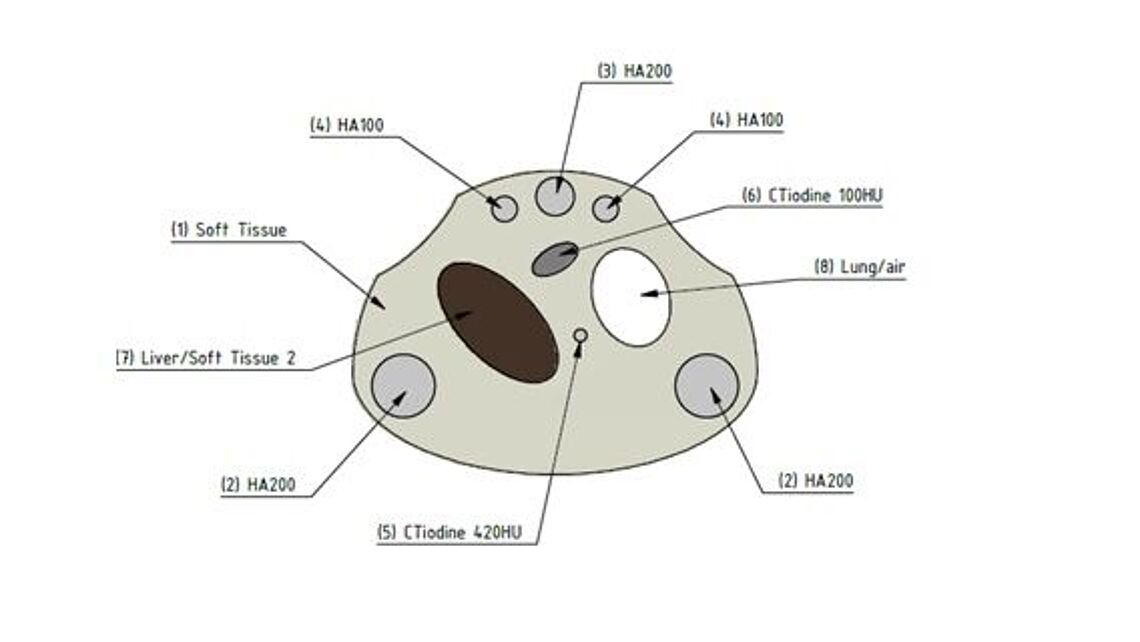

Schematic Diagram of Micro-CT Mouse Phantom, QRM-70137
4 / 6

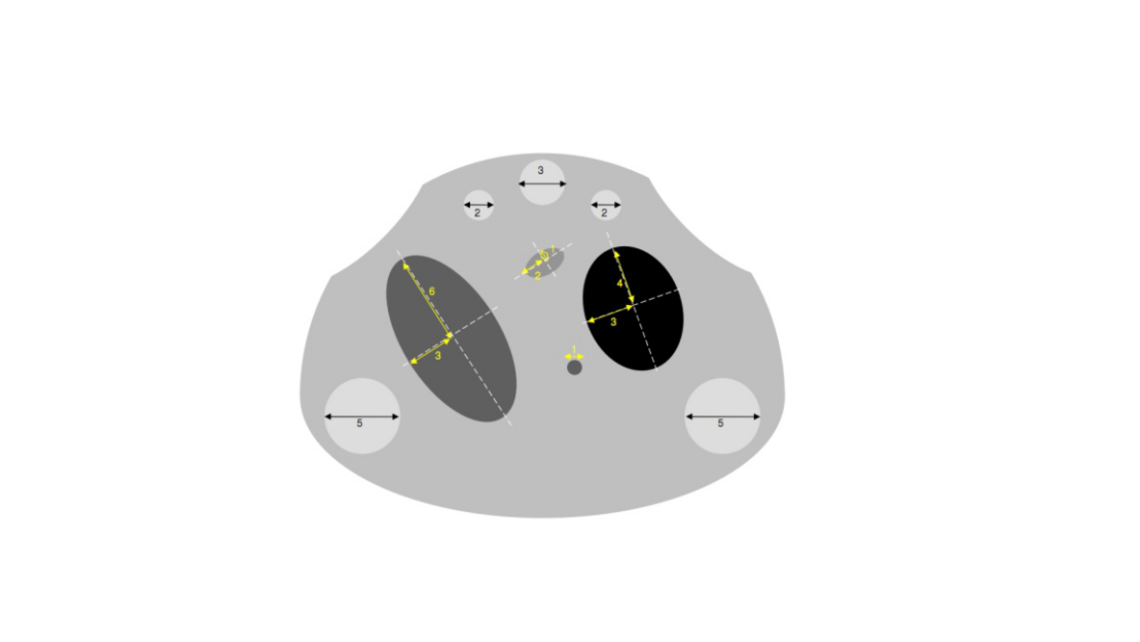

Measures of the Micro-CT Mouse Phantom, QRM-70137 (in mm)
5 / 6

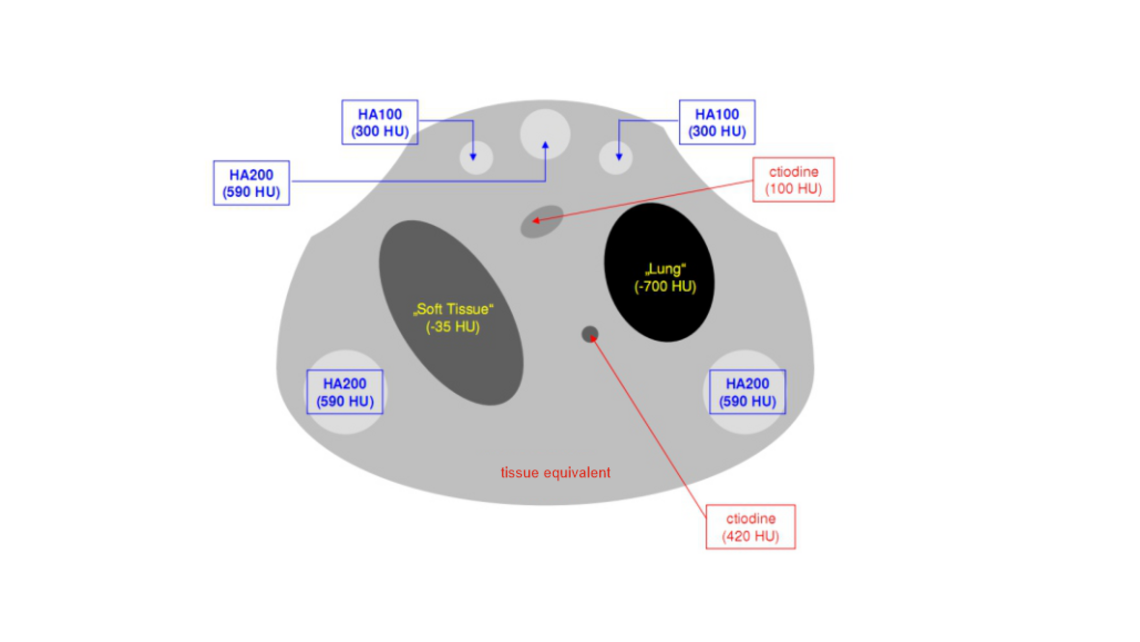

Content of the Micro-CT Mouse Phantom, QRM-70137 (in mm) (values valid for U =120kVp)
6 / 6

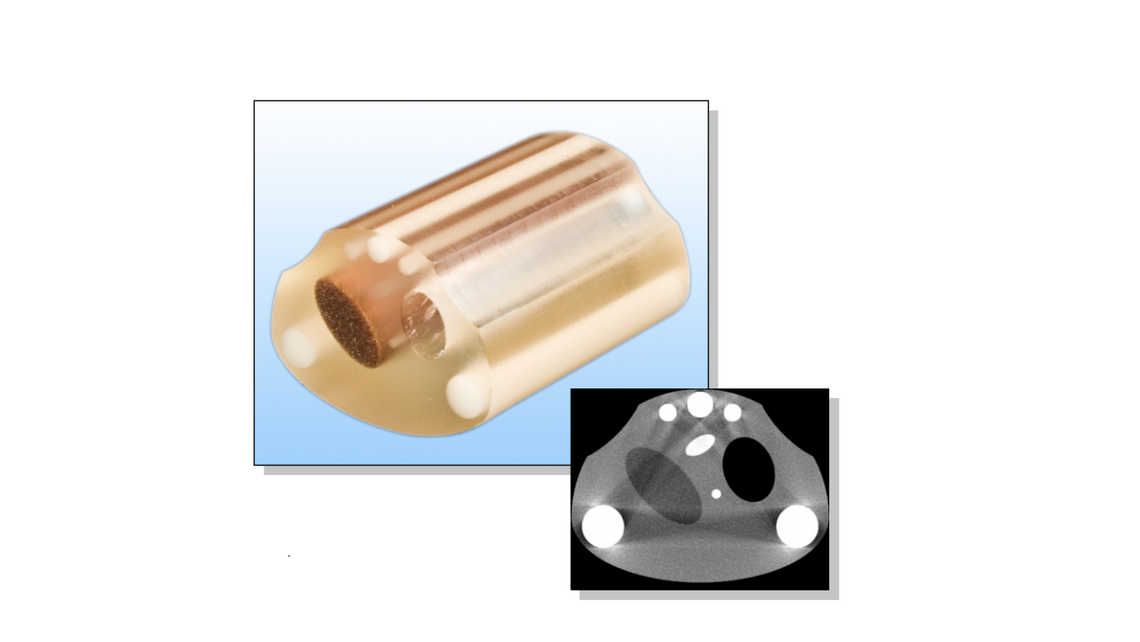

Micro-CT Mouse Phantom, QRM-70137 (CT-scan at 120 kVp)
