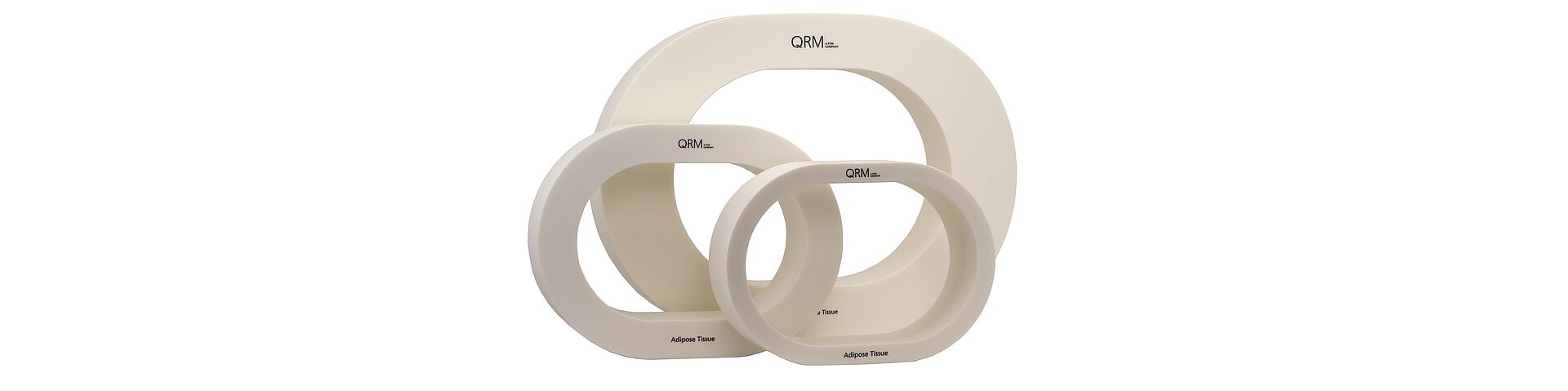

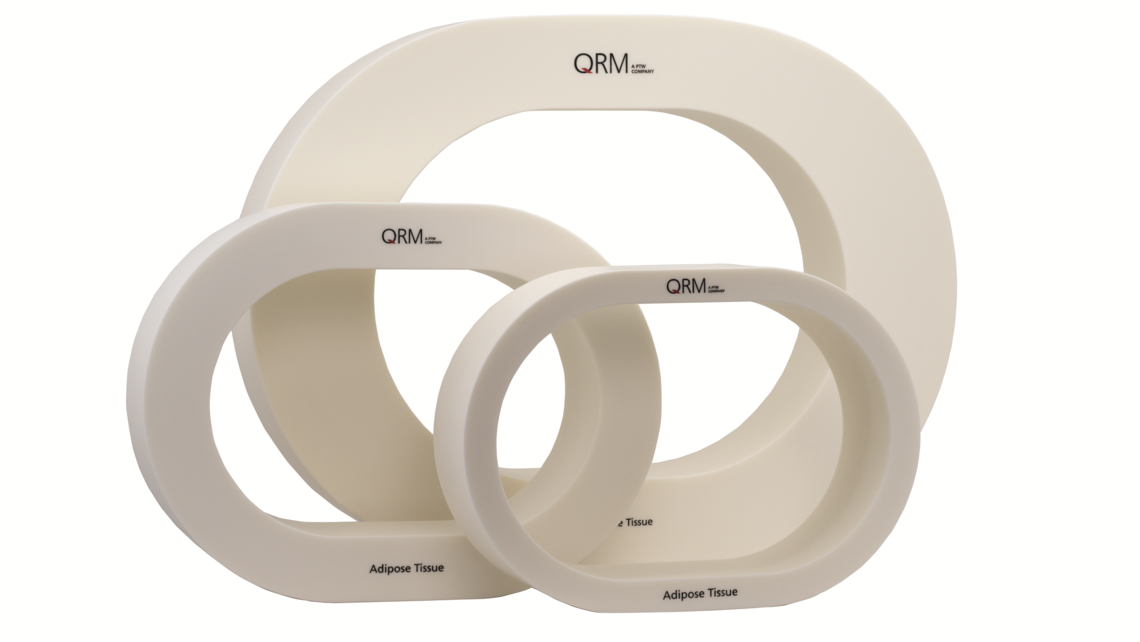

Extension Rings

For the simulation of obese patients in combination with the Thorax, Abdomen or Liver Nodule Phantom

To simulate obesity of patients
Compatible with standard phantoms
Available in soft tissue-, fat- or water-equivalent
Dosimetry option with available

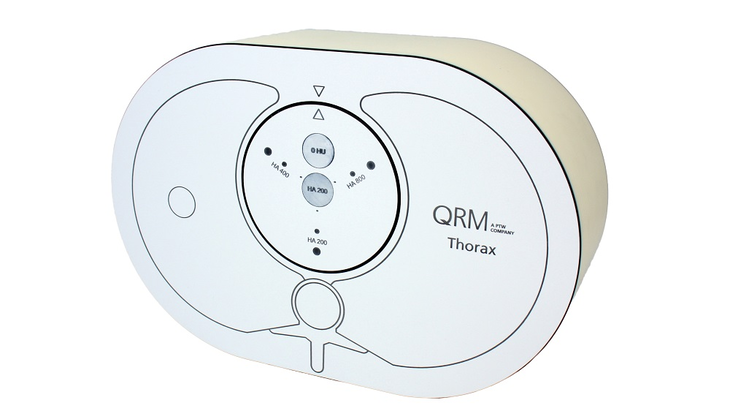

Obese Extension Rings are used for testing the influence of higher attenuation due to increased abdominal or chest girth on image quality in CT or 3D imaging techniques. The Extension Rings can be used in combination with our (semi-)anthropomorphic standard phantoms: Thorax, Cardio, Abdomen and Liver.

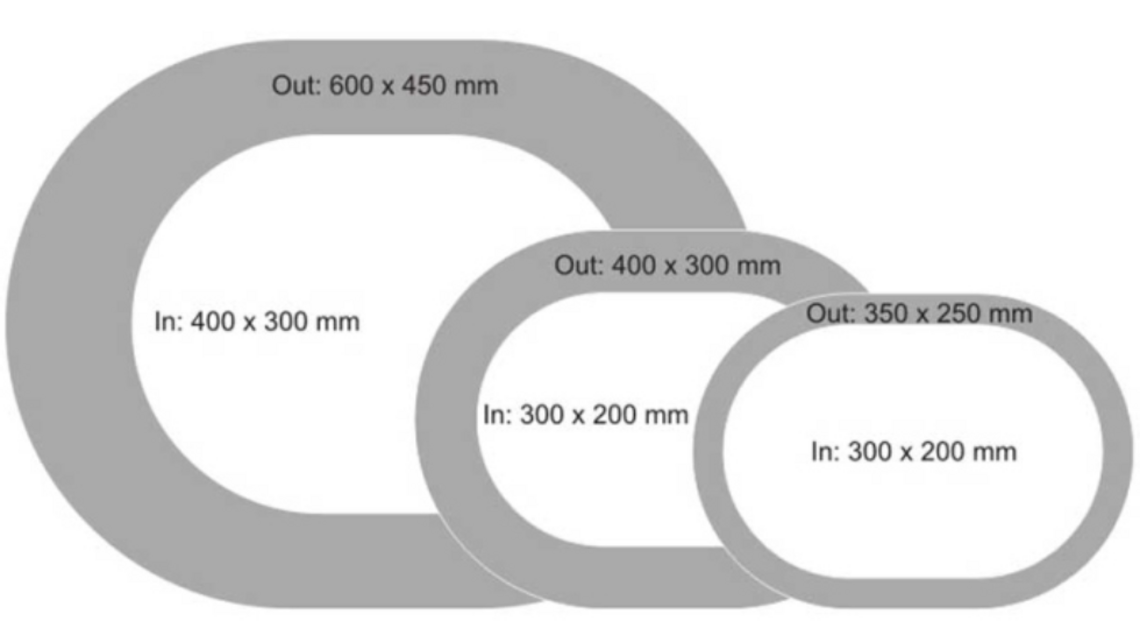

The Extension Rings are available in size M, L and XL and can be manufactured from tissue- or fat-equivalent material. Water-equivalent rings or other materials with specified CT-numbers (HU) are also available upon request. Additionally, a dosimetry version of the Extension Rings with drilled holes for dosimetry purposes is available.

Extension Ring Soft Tissue, M,QRM-20104

Extension Ring Soft Tissue, L, QRM-20105

Extension Ring Soft Tissue, XL, QRM-20106

Extension Ring Fat, M,QRM-20107

Extension Ring Fat, L, QRM-20108

Extension Ring Fat, XL,QRM-20109

Compatible with:

Technical Specifications

Body Materials:
	Soft tissue-equivalent:	app. 30 HU at 80-140 kV	(QRM-20104, QRM-20105, QRM-20106)
	Fat-equivalent:	app. -(70-90) HU at 120 kV	(QRM-20107, QRM-20108, QRM-20109)
