Micro-CT Slice Sensitivity Phantom

For the evaluation of the spatial resolution of micro-CT systems by measuring the SSP, slice thickness or axial MTF

Evaluate the spatial resolution of micro-CT systems by measuring the slice sensitivity profile
Houses 10 micron thick centrally placed gold foil
Customizable

The Micro-CT Slice Sensitivity Phantom contains a high-attenuating 10 micron thick metal insert, whose thickness is adapted to the nominal slice thickness of micro-CT scanners. The high-contrast platelet (diameter 1 mm) is embedded in the center of the cylindrical phantom.

Micro-CT Slice Sensitivity Phantom, QRM-70109

Technical Specifications

Phantom diameter:	32 mm
Phantom height:	app. 43 mm
Phantom weight:	35 g
Body material:	soft tissue equivalent resin
Insert (Au) diameter:	1 mm
Insert (Au) thickness:	0.01 mm

Image Gallery

1 / 3

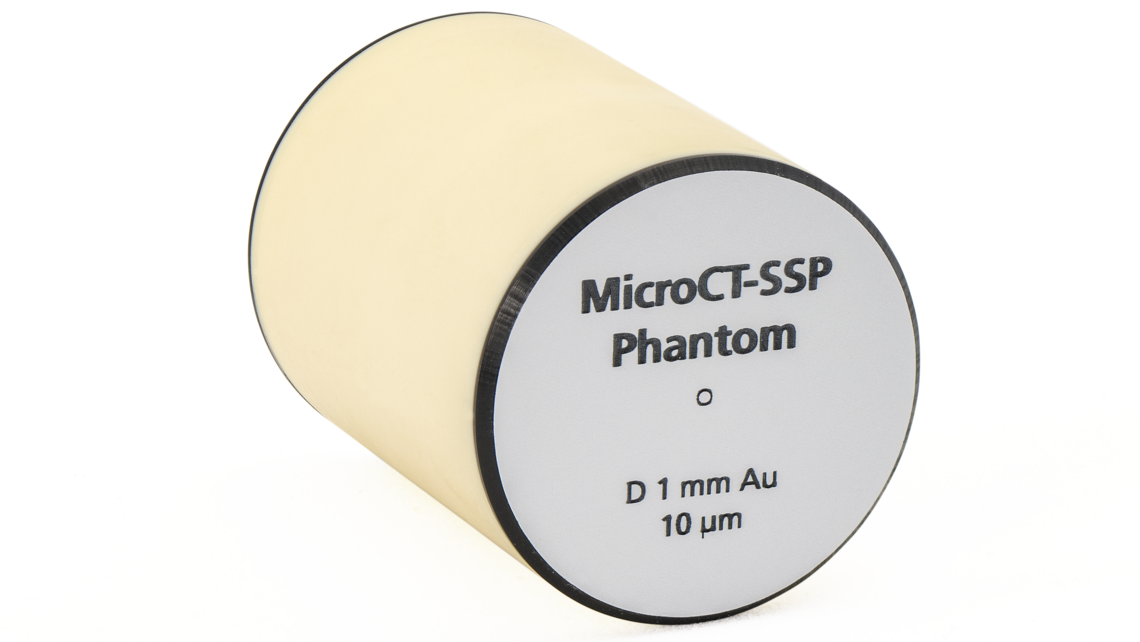

Micro-CT Slice Sensitivity Phantom, QRM-70109

2 / 3

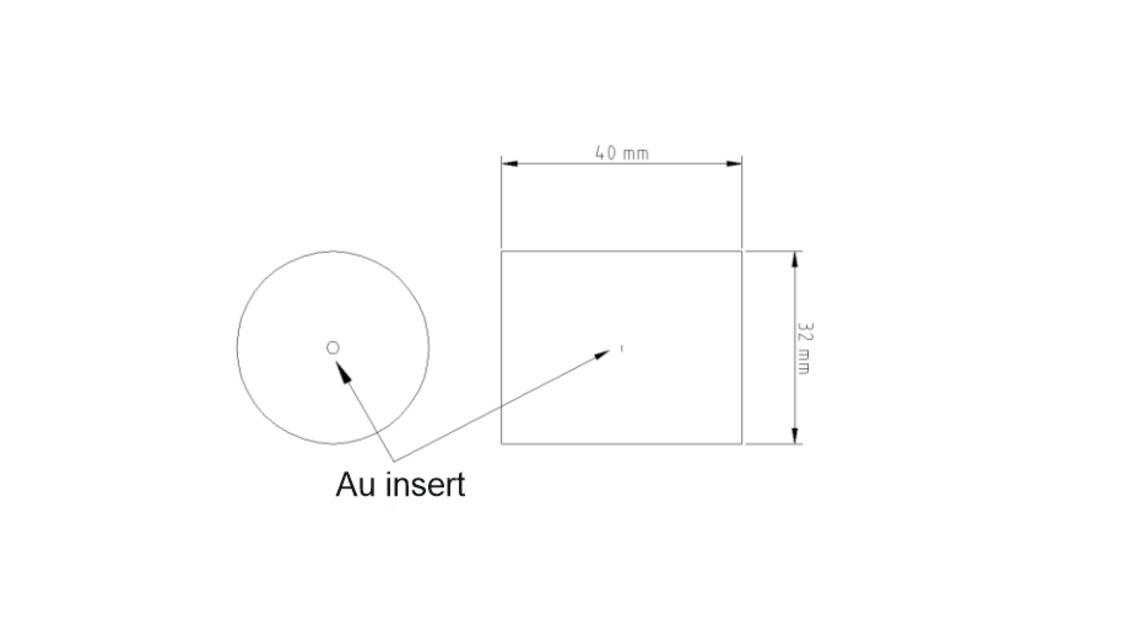

Schematic drawing of the Micro-CT Slice Sensitivity Phantom, QRM-70109

3 / 3

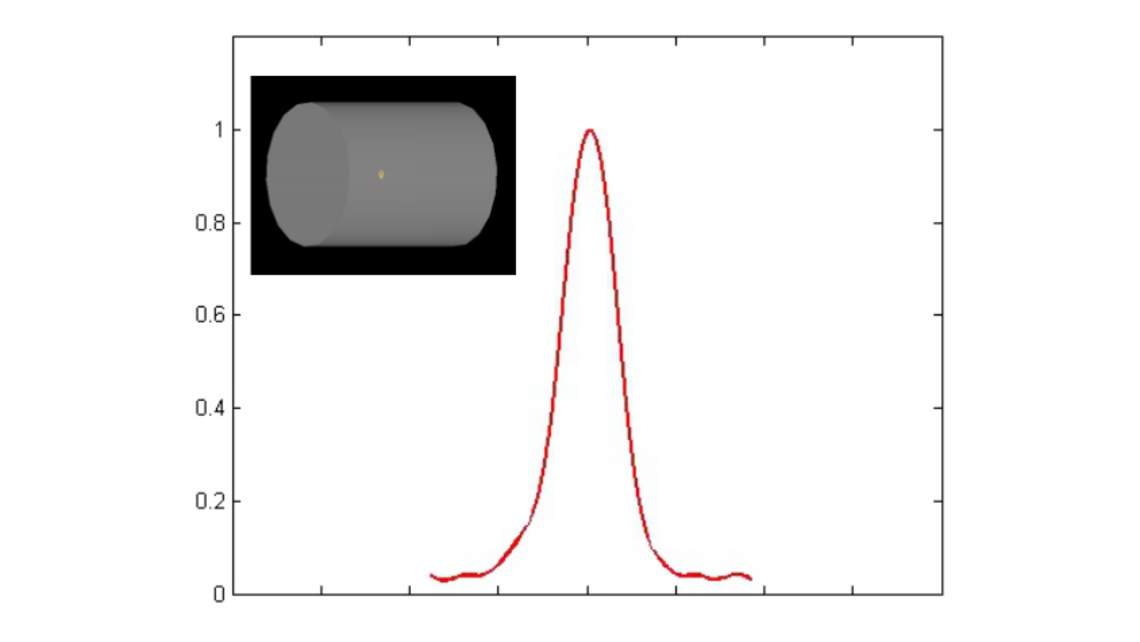

Example of scanner (Micro-CT Slice Sensitivity Phantom, QRM-70109)
