3D, 2D Low Contrast Phantoms

For measuring the low-contrast resolution in CT and Cone-Beam CT

3D Low Contrast Phantom
- D100 compatible
- Includes several spherical low contrast inserts arranged in two planes
- 2 different contrast levels relative to the background
  - QRM-10109: 3D Low Contrast Phantom (-10 HU)
  - QRM-10110: 3D Low Contrast Phantom (-20 HU)

QRM-10100: 2D Medium-Contrast Phantom
- D100 compatible
- Includes several cylindrical medium-contrast test objects of different sizes (2-15 mm)
- 4 contrast steps in the phantom: -25, -50, -75 and -100 HU
QRM-10112: 2D Low-Contrast Phantom
- D100 compatible
- Includes several cylindrical low-contrast test objects of different sizes (5 - 15 mm)
- Contrast to background -20 HU and -10 HU in one phantom

The phantoms are ideally suited for the evaluation of the imaging capabilities of 3D X-ray imaging modalities (e.g. CT or Cone-Beam CT). The contrast resolution is obtained by a single spiral scan using axial images (QRM-10109, QRM-10110, QRM-10100, QRM-10112) and coronal reformations (QRM-10109, QRM-10110). The phantoms visualize the impact of all, scan, image reconstruction, and display parameters.

The low or medium-contrast inserts (spheres/rods with varying diameters) are located within the cylindrical body of homogeneous tissue-equivalent material.

The phantoms fit into the Thorax, Abdomen and Oval Body Phantom.

3D Low Contrast Phantom (-10 HU), QRM-10109

3D Low Contrast Phantom (-20 HU), QRM-10110

2D Medium Contrast Phantom, QRM-10100

2D Low Contrast Phantom, QRM-10112

QRM-20100: Thorax Phantom
QRM-20118: Abdomen Phantom
QRM-20115: Oval Body Phantom, Tissue
QRM-20116: Oval Body Phantom, CTwater
QRM-10141: Extension Ring CTwater, 160mm
QRM-10142: Extension Ring CTwater, 320mm

Technical Specifications

Phantom diameter	100 mm
Phantom height	103 mm
Phantom weight:	0.9 kg
Body material:	tissue-equivalent plastic
Contrast inserts:	-10 HU (QRM-10109) or -20 HU (QRM-10110) relative to background*
Cylindrical contrast insert:
	Diameter: Ø 20 mm
	Height: 25 mm
Spherical contrast inserts:	9 spheres Ø 3 mm
	9 spheres Ø 4 mm
	9 spheres Ø 5 mm
	9 spheres Ø 6 mm
	7 spheres Ø 8 mm

*Accuracy: ±3% of specified values

Phantom diameter:	100 mm
Phantom height:	103 mm
Phantom weight:	0.9 kg
Body material:	tissue-equivalent plastic at 120 kV
Contrast inserts:
	Contrast values:	-10 HU and -20 HU relative to background*
	Dimensions:	Ø 5, 10, 15 mm / H 100 mm

*Accuracy: ±1% of specified values

Phantom diameter:	100 mm
Phantom height:	103 mm
Phantom weight:	0.9 kg
Body material:	tissue-equivalent plastic at 120 kV
Cylindrical inserts:
	Contrast values:	-25, -50, -75 and -100 HU relative to background*
	Dimensions:	Ø 2, 4, 6, 8 and 15 mm / H 100 mm

*Accuracy ± 3 HU of specified values.

Image Gallery

1 / 7

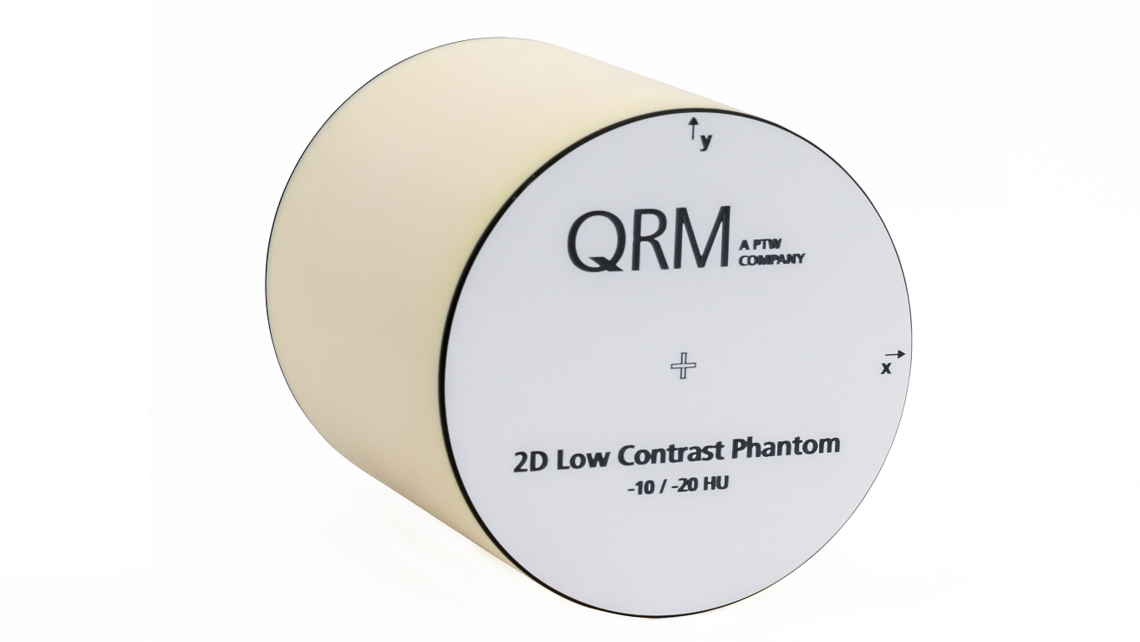

2D Low-contrast resolution phantom with different contrast cylinders of
-10 HU and -20 HU

2 / 7

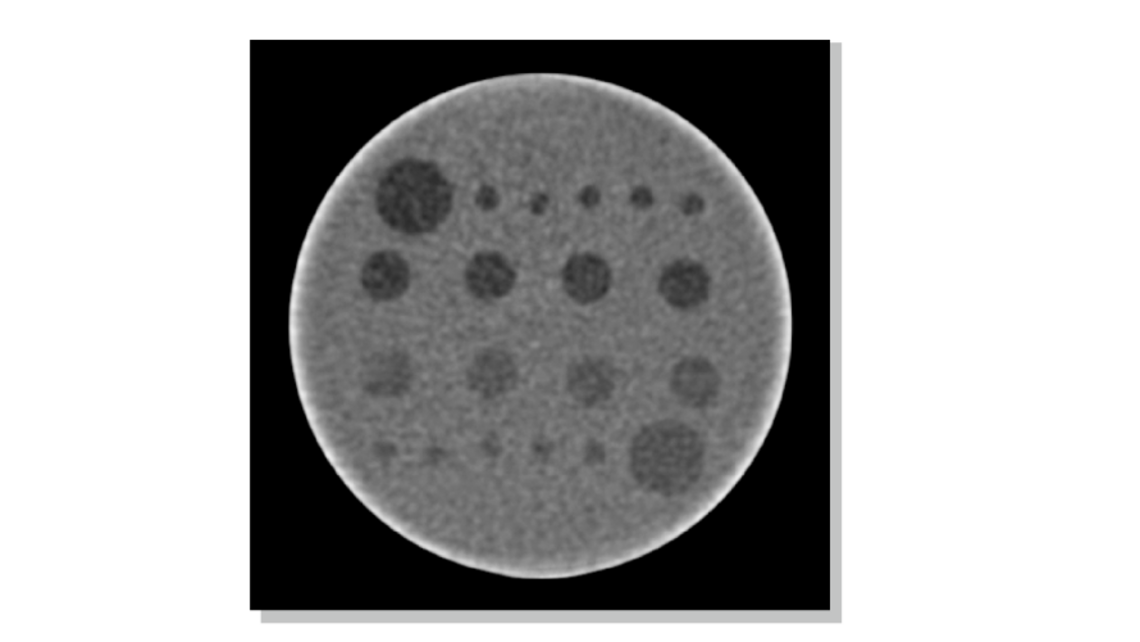

CT-scan of the 2D Low Contrast Phantom

3 / 7

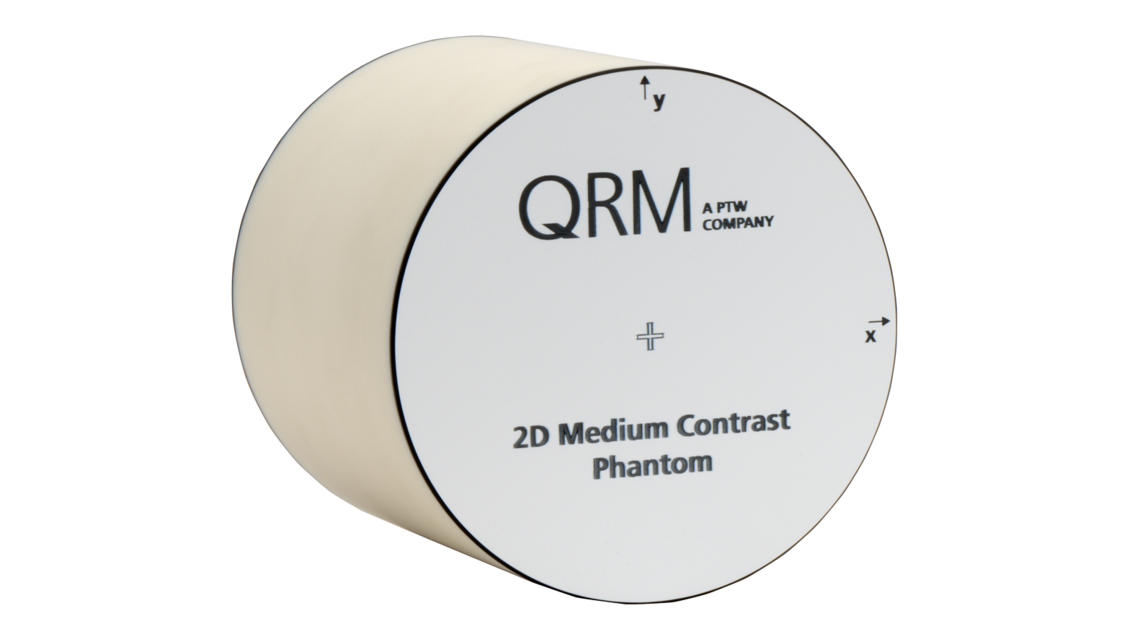

2D Medium Contrast Phantom with different contrast cylinders of
-25, -50, -75 and -100 HU

4 / 7

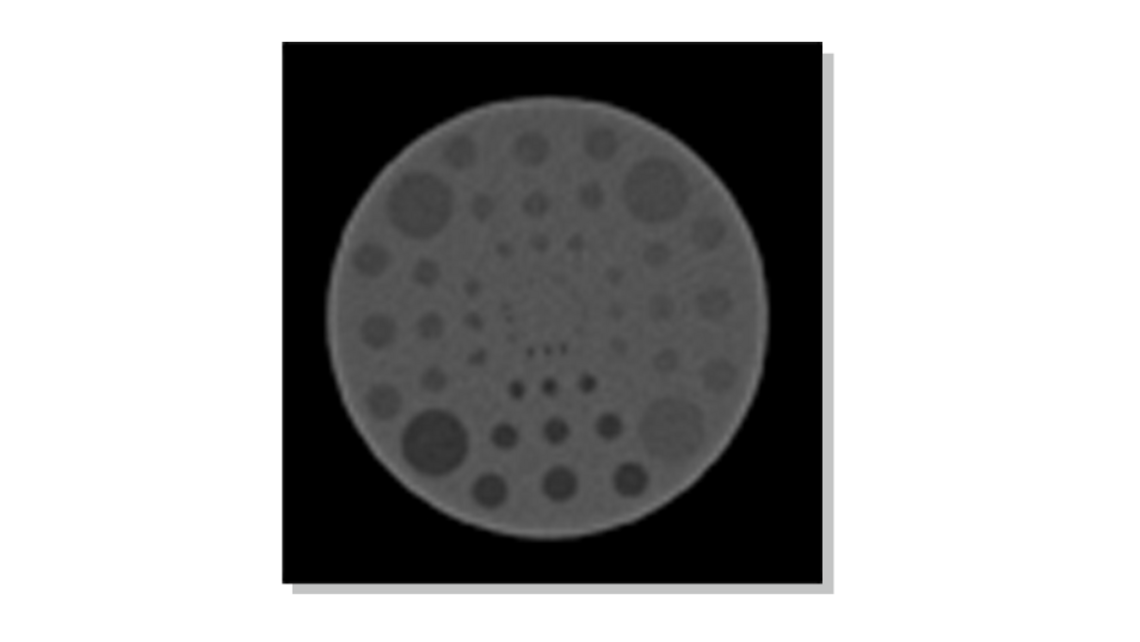

CT-Scan of the 2D Medium Contrast Phantom

5 / 7

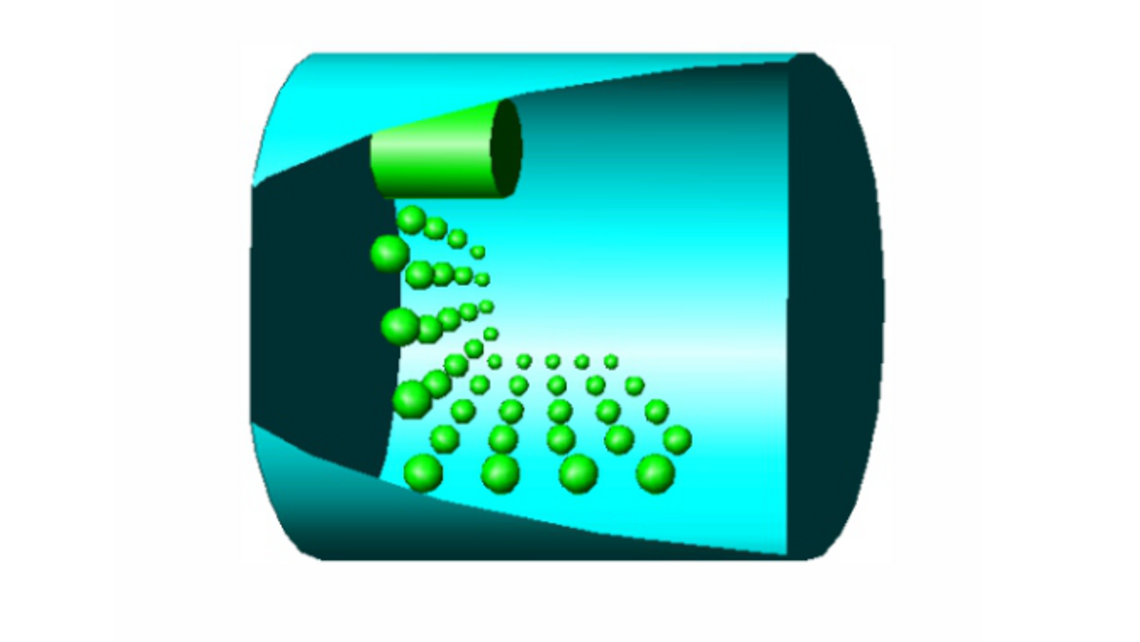

3D Low-contrast resolution phantom with different contrast cylinders of
-10 HU and -20 HU

6 / 7

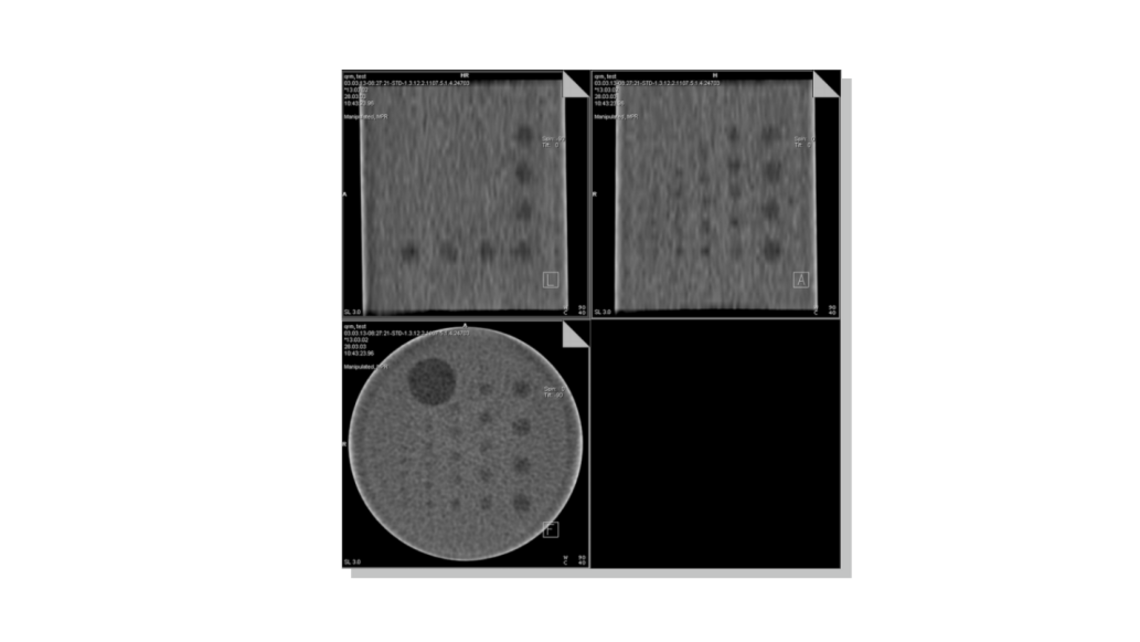

Multi-Planar Reformation (MPR) of the 3D Low Contrast Phantom

7 / 7

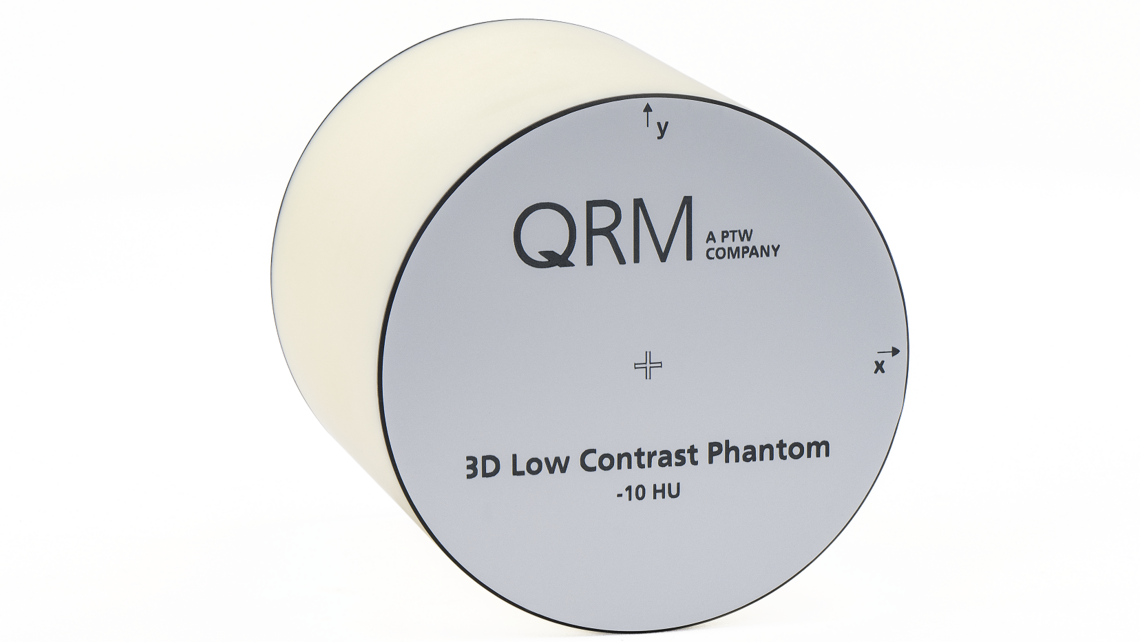

3D Low Contrast Phantom
